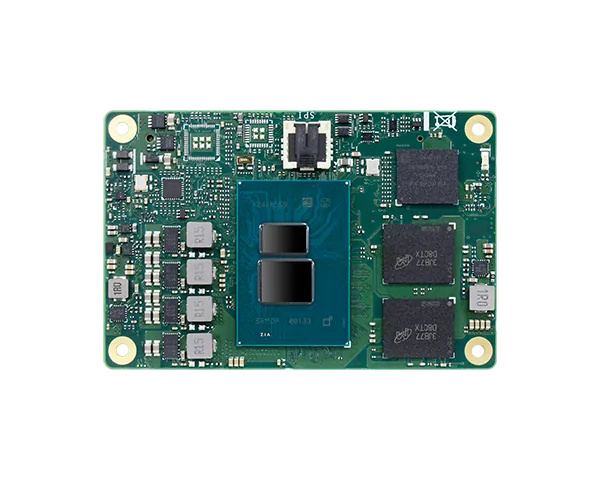

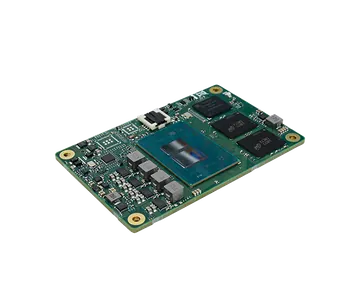

ADN9A2
COM Express Type 10, Intel® Atom® Processor Alder Lake N Series, LPDDR5, 4 PCIe x1, 2 SATA 3.0, 2 USB 3.2, 8 USB 2.0, 1 LVDS/eDP, 1 DDI, -5 to 65°C
- Intel® Atom® Processor Alder Lake-N Series
- Dual Channel LPDDR5 4800MHz up to 16GB
- 1 LVDS/eDP, 1 DDI (HDMI/DP++)；Supports dual displays: DDI + LVDS/eDP
- Multiple expansions: 4 PCIe x1, 1 SMBus, 1 I2C, 1 eMMC
- Rich I/O: 2 USB 3.2, 8 USB 2.0
- High Speed Ethernet: Supports 100M/1000M/2.5Gbps
Főbb jellemzők
Tanúsítványok
#Windows 10
#LVDS
#Edge AI Computing
#Intel® Atom® Alder Lake-N Processors
#eDP
#LPDDR5
#SMBus
#I2C
#LPC
#UART
#Slim Bootloader
#Fast Resume & Low Power Standby
#IoT
#Windows 11
#Intel
#Fanless Design
#4K2K Display
#Windows
#Linux
#HDMI
#DP
#Low Power Consumption
#CE Certification
#FCC Certification
#2.5G Ethernet
Főbb jellemzőkKey features
- Intel® Atom® Processor Alder Lake-N Series
- Dual Channel LPDDR5 4800MHz up to 16GB
- 1 LVDS/eDP, 1 DDI (HDMI/DP++)；Supports dual displays: DDI + LVDS/eDP
- Multiple expansions: 4 PCIe x1, 1 SMBus, 1 I2C, 1 eMMC
- Rich I/O: 2 USB 3.2, 8 USB 2.0
- High Speed Ethernet: Supports 100M/1000M/2.5Gbps
System
- Processor
- Intel® Atom x7000E / Core-i / Pentium / Celeron series processors (Code Name : Alder Lake-N) Intel® Atom Processor x7425E, 4 Cores, 1.5~3.4GHz, 12W Intel® Processor Core i3-N305, 8 Cores, 1.0/1.8~3.8GHz, 9/15W Intel® Processor N97, 4 Cores, 2.0~3.6GHz, 12W Intel® Processor N50, 2 Cores, 1.0~3.4GHz, 6W
- Memory
- LPDDR5 up to 16GB Dual Channel LPDDR5 4800MHz 8GB/16GB supported by project basis. In-band ECC (IBECC) Supported by all CPU SKUs
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® UHD
- Feature
- Open GL 4.6, DirectX 12.1 Vulkan 1.2 (Windows) Mesa 3D, Open GL 4.6, Vulkan 1.2 (Linux) HW Decode: 4K60 10b 4:2:0, 4:4:4 HEVC/VP9/SCC, 4K60 10b 4:2:0 AV1 HW Encode: 4K60 10b 4:2:0, 4:4:4 HEVC/VP9/SCC
- Display
- 1 x DDI 1 x LVDS/eDP LVDS: single channel 24-bit, resolution up to 1920x1200 @ 60Hz eDP: resolution up to 4096x2160 @ 60Hz HDMI: resolution up to 4096x2160 @ 30Hz DP++: resolution up to 4096x2160 @ 60Hz, 3840x2160 @60Hz
- Dual Displays
- DDI + LVDS/eDP
Expansion
- Interface
- 4 x PCIe x1 (Gen 3) 1 x I2C 1 x SMBus 1 x LPC 1 x SNDW (available upon request) 1 x GSPI 2 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I226-IT / I226-LM (10/100/1000Mbps/2.5Gbps)
I/O
- USB
- 2 x USB 3.2 Gen2 8 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s)
- eMMC
- 1 x 8GB/16GB/32GB/64GB/128GB eMMC 5.1 (available upon request)
- DIO
- 1 x 8-bit DIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- dTPM or fTPM (Optional)
Power
- Type
- 4.75V~20V, 5VSB, VCC_RTC (ATX mode) 4.75V~20V, VCC_RTC (AT mode)
- Consumption
- TBD
OS Support
- OS Support (UEFI Only)
- Windows 11/10 IoT Enterprise 64-bit Linux
Environment
- Temperature
- Operating: -5 to 65°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 1,394,204 hrs @ 25°C; 927,579 hrs @ 45°C; 637,575 hrs @ 60°C excluding accessories Calculation Model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- COM Express® Mini 84mm (3.3") x 55mm (2.16")
- Compliance
- PICMG COM Express® R3.1, Type 10
Standards and Certifications
- Certifications
- CE, FCC
Packing List
- Packing List
- · Heat Sink, A71-008356-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| ADN9A2-BC16-7425E | 770-ADN9A22-100G | Intel® Atom Processor x7425E, 4 Cores, 12W, 16GB LPDDR5, 64GB eMMC, LVDS, TPM 2.0, Thermal Heat Sink, 0 to 60°C |
| ADN9A2-BC86-N305 | 770-ADN9A22-300G | Intel® Core i3 Processor N305, 8 Cores, 9/15W, 8GB LPDDR5, 64GB eMMC, LVDS, TPM 2.0, Thermal Heat Sink, 0 to 60°C |
| ADN9A2-BC86-N50 | 770-ADN9A22-600G | Intel® Processor N50, 2 Cores, 6W, 8GB LPDDR5, 64GB eMMC, eDP, TPM 2.0, Thermal Heat Sink, 0 to 60°C |
| ADN9A2-BC86-N97 | 770-ADN9A22-700G | Intel® Processor N97, 2 Cores, 12W, 8GB LPDDR5, 64GB eMMC, eDP, TPM 2.0, Thermal Heat Sink, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| Heat Spreader | A71-808364-000G | |
| COM335 Carrier Board Kit | 770-CM3351-000G |
