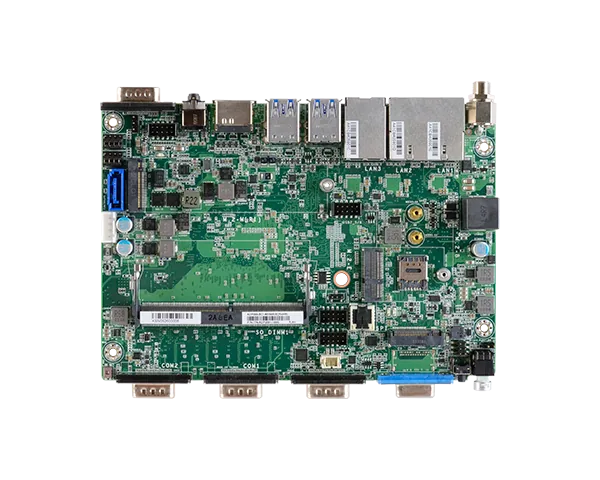

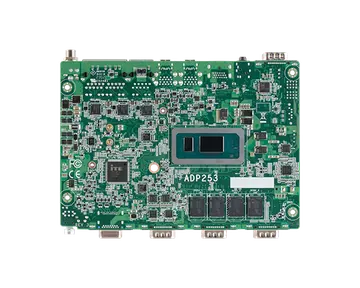

ADP253
4" SBC, 12th Gen Intel® Core™ Processors, On-board memory, 1 DDR4 SO-DIMM, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key, 1 HDMI, 1 VGA/DP, 2 Type-C DP Alt. Mode, 1 Intel 2.5GbE, 2 Intel GbE, 6 COM, 4 USB 3.2, 2 USB 2.0, 1 SATA 3.0
- 12th Gen Intel® Core™ Processors
- On board memory and 1 DDR4 SO-DIMM
- Multiple Displays: 1 HDMI, 1 VGA/DP, 2 Type-C DP Alt. Mode
- Supports 4K/2K resolution
- Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
- Rich I/O: 1 Intel 2.5GbE, 2 Intel GbE, 6 COM, 4 USB 3.2, 2 USB 2.0, 1 SATA 3.0
Főbb jellemzők
Tanúsítványok
#12th Gen Intel® Core™ Processor
#Windows 10
#ADP Series
#Edge AI Computing
#Windows 11
#Fanless Design
#4K2K Display
#Windows
#Linux
#HDMI
#VGA
#DP
#Multiple Expansion
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- 12th Gen Intel® Core™ Processors
- On board memory and 1 DDR4 SO-DIMM
- Multiple Displays: 1 HDMI, 1 VGA/DP, 2 Type-C DP Alt. Mode
- Supports 4K/2K resolution
- Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
- Rich I/O: 1 Intel 2.5GbE, 2 Intel GbE, 6 COM, 4 USB 3.2, 2 USB 2.0, 1 SATA 3.0
System
- Processor
- 12th Gen Intel® Core™ Processors, BGA 1744 (Alder Lake-P, 15W) Intel® Core™ i7-1265UE Processor, 10C12T, 12M Cache, 1.7GHz (4.7GHz) Intel® Core™ i5-1245UE Processor, 10C12T, 12M Cache, 1.5GHz (4.4GHz) Intel® Core™ i3-1215UE Processor, 6C8T, 10M Cache, 1.2GHz (4.4GHz) Intel® Celeron® 7305E Processor, 5C5T, 8M Cache, 1.0GHz
- Memory
- 8GB On-board memory & one SO-DIMM DDR4 up to 32GB Dual Channel DDR4 3200MHz
- BIOS
- AMI SPI 256Mbit (Supports UEFI boot only)
Graphics
- Controller
- Intel® Iris® Xe Graphics Intel® UHD Graphics
- Feature
- DirectX 12, Open GL 4.6, Vulkan 1.2 HW Decode: AV1, AVC/H.264, MJPEG, HEVC/H.265, VP9, SCC HW Encode: MJPEG, AVC/H.264, HEVC/H.265, VP9, SCC
- Display
- 1 x HDMI 1 x VGA/DP (Opt.) 2 x Type-C DP Alt. Mode HDMI: Resolution up to 4096x2160 @60Hz VGA: Resolution up to 1920x1200 @60Hz DP: Resolution up to 4096x2304 @60Hz
- Multiple Displays
- HDMI + VGA/DP (Opt.) + Type-C DP Alt. Mode + Type-C DP Alt. Mode
Expansion
- Interface
- 1 x M.2 M Key 2280 (PCIex4/SATA) 1 x M.2 B Key 3042/3052 (USB3.0/USB2.0/PCIex1), 1 x SIM slot for 4G/5G 1 x M.2 E Key 2230 (CNVi/PCIex1/USB2.0)
Audio
- Audio Codec
- Realtek ALC888S
Ethernet
- Controller
- 1 x Intel® I226-LM/IT (10/100/1000/2500Mbps) 2 x Intel® I226-LM/IT (10/100/1000Mbps) (Only Core i7/i5 supports iAMT)

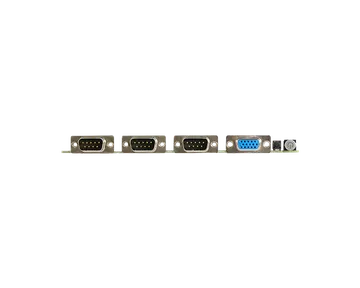

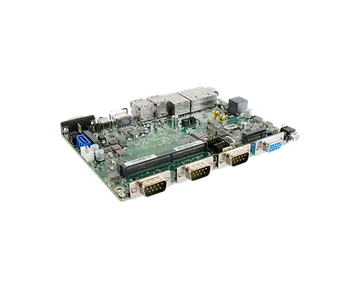

Front I/O
- Serial
- COM 1 / COM 2: 2 x RS-232/422/485 COM 4: 1 x RS-232
- Display
- 1 x VGA/DP (Opt.)
- Buttons
- 1 x Power Button 1 x Reset Button

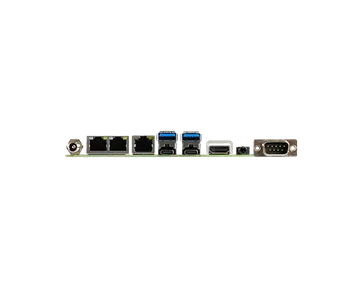

Rear I/O
- Ethernet
- 1 x 2.5GHz (RJ-45) + 2 x GbE (RJ-45)
- Serial
- COM 3: 1 x RS232 (also supports an optional 8-bit DIO)
- USB
- 4 x USB 3.2 Default: 2 x Type C + 2 x Type A connector Option: 4 x Type A connector
- Display
- 1 x HDMI 2 x Type-C DP Alt. Mode
- Audio
- 1 x Audio Combo Phone Jack (Line-out/Mic-in)
Internal I/O
- Serial
- COM 5 / COM 6: 2 x RS-232 (2.0mm pitch, box header)
- USB
- 2 x USB 2.0 (2.0mm pitch, box header)
- Audio
- 1 x Front Audio (Line-out/Mic-in, 2.0mm pitch, box header)
- SATA
- 1 x SATA 3.0 (up to 6Gb/s) 1 x SATA Power (5V/12V)
- Other I/O
- 1 x Front Panel 1 x System Fan Connector (Opt.)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Discrete TPM 2.0
Power
- Type
- 9~36 VDC input
- Connector
- One power jack with lock. (Default) Co-lay 2x2 pin power connector straight type and right angle type
- Consumption
- Typical: 1265UE, 12V @ 2A (24Watt) Max.: 1265UE, 12V @ 2.8A (33.6Watt) (Peak: 12.9V @ 7.06A)
- RTC Battery
- CR2032 Coin Cell, link mother board with cable
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit Windows 11
- Linux
- Linux
Environment
- Temperature
- Operating: -5 to 65°C / -30 to 80°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 1365UE: 491,541 hrs @ 25°C; 328,488 hrs @ 45°C ; 227,921 hrs @ 60°C; 175,097 hrs @ 70°C ; 133,220 hrs @ 80°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- 4" SBC Form Factor 165mm (6.49") x 115mm (4.53")
- Height
- PCB: 1.6mm Top Side: 16.34mm, Bottom Side: 3mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- • 1 ADP253 board • 1 Heat sink (Height: 37mm) A71-008349-020G • 1 Serial ATA data with power cable A81-002008-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| ADP253-BCI-80I765UE | 770-ADP2531-000G | i7-1265UE, 8GB Memory, HDMI + VGA + 2 Type C DP Alt. Mode, 1 2.5GbE, 2 GbE, 6 RS232, 2 RS422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5~65°C |
| ADP253-BCI-80I545UE | 770-ADP2531-100G | I5-1245UE, 8GB Memory, HDMI + VGA + 2 Type C DP Alt. Mode, 1 2.5GbE, 2 GbE, 6 RS232, 2 RS422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5~65°C |
| ADP253-BCI-80I315UE | 770-ADP2531-200G | I3-1215UE, 8GB Memory, HDMI + VGA + 2 Type C DP Alt. Mode, 1 2.5GbE, 2 GbE, 6 RS232, 2 RS422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5~65°C |
| ADP253-BCI-80CR05E | 770-ADP2531-300G | Celeron-7305E, 8GB Memory, HDMI + VGA + 2 Type C DP Alt. Mode, 1 2.5GbE, 2 GbE, 6 RS232, 2 RS422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5~65°C |
| ADP253-ETI-80I765UE | 770-ADP2531-400G | I7-1265UE, 8GB Memory, HDMI + VGA + 2 Type C DP Alt. Mode, 1 2.5GbE, 2 GbE, 6 RS232, 2 RS422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -30~80°C |
| ADP253-ETI-80I545UE | 770-ADP2531-500G | I5-1245UE, 8GB Memory, HDMI + VGA + 2 Type C DP Alt. Mode, 1 2.5GbE, 2 GbE, 6 RS232, 2 RS422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -30~80°C |
| ADP253-ETI-80I315UE | 770-ADP2531-600G | I3-1215UE, 8GB Memory, HDMI + VGA + 2 Type C DP Alt. Mode, 1 2.5GbE, 2 GbE, 6 RS232, 2 RS422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -30~80°C |
| ADP253-ETI-80CR05E | 770-ADP2531-700G | Celeron-7305E, 8GB Memory, HDMI + VGA + 2 Type C DP Alt. Mode, 1 2.5GbE, 2 GbE, 6 RS232, 2 RS422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -30~80°C |
| Item Name | Part Number | Description |
|---|---|---|
| Power adapter | 671-112009-100G 671-106012-000G | 120W, 19V 60W, 12V |
| USB 2.0 cable | A81-001163-018G | Length: 200mm, 2 USB ports |
| COM cable | A81-015115-018G | Length: 250mm, 1 COM por |
| Front panel cable | A81-009307-001G | Length: 250mm |
| Audio cable | A81-022007-016G | Length: 160mm |
| Heat spreader | A71-808353-000G | Height: 11mm |
