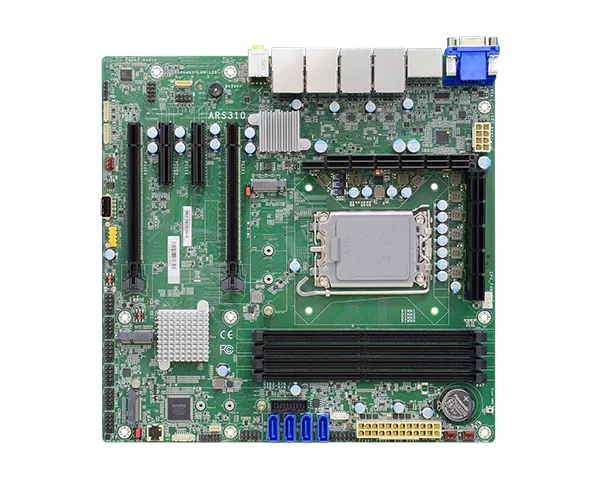

ARS310-W880/Q870

microATX board, Intel® Core™ Ultra Processors, 4 DDR5, 2 PCIe x16, 2 PCIe x4, 1 M.2 E key, 2 M.2 M key, 4 SATA 3.0, 1 VGA, 2 DP++, 1 HDMI, 2 Intel 2.5GbE, 2 Intel 10GbE, 6 COM, 4 USB 3.2 Gen 2, 6 USB 3.2 Gen 1, 3 USB 2.0

  • Intel® Core™ Ultra Processors with Intel® W880/Q870 Chipset
  • 4 DDR5 UDIMM up to 256GB
  • Supports 4 independent displays: VGA, 2 DP++, HDMI
  • Supports 4K resolution
  • Multiple expansion: 2 PCIe x16, 2 PCIe x4, 1 M.2 E key, 2 M.2 M key, 4 SATA 3.0
  • Rich I/O: 2 2.5GbE + 2 10GbE, 6 COM, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0
  • Typically supports 5-Year CPU Life Cycle Until Q1’ 30 (Based on Intel IOTG Roadmap)
  • EXT-OOB (Full)
ElőzetesPreliminary
4K2K Display
Multiple Expansion
Quad Independent Display
DDR5
Rich I/O
RoHS Certification
CE Certification
FCC Certification
#DDR5 #Windows 10 #Edge AI Computing #EXT-OOB (Full) #Intel® Core™ Ultra processors #IoT #Windows 11 #Intel #4K2K Display #PCIe x16 #Windows #Linux #HDMI #VGA #DP #Multiple Expansion #10G Ethernet #RoHS Certification #CE Certification #FCC Certification #2.5G Ethernet

Főbb jellemzőkKey features

  • Intel® Core™ Ultra Processors with Intel® W880/Q870 Chipset
  • 4 DDR5 UDIMM up to 256GB
  • Supports 4 independent displays: VGA, 2 DP++, HDMI
  • Supports 4K resolution
  • Multiple expansion: 2 PCIe x16, 2 PCIe x4, 1 M.2 E key, 2 M.2 M key, 4 SATA 3.0
  • Rich I/O: 2 2.5GbE + 2 10GbE, 6 COM, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0
  • Typically supports 5-Year CPU Life Cycle Until Q1’ 30 (Based on Intel IOTG Roadmap)
  • EXT-OOB (Full)

Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
