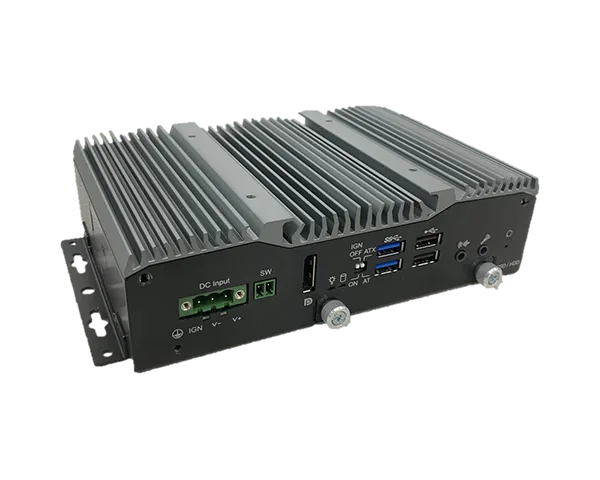

BMAL
The BMAL box module also supports DFI’s Adaptive Display Platform (ADP) Technology. It is an innovative panel PC solution that offers the flexibility of modularized integration of panel PC components for expedited product development and shortened time to market.
- Support Adaptive Display Platform
- Supports 24V / 9~48V Power Board Module
- Accessible 2.5" SATA Drive Bay
- 12V/24V/48V Ignition Power Control
- Wide Operating Temperature: -40 to 70°C
Főbb jellemzők
Tanúsítványok
#Mini PCIe
#Fanless Design
#Compact Size
#Windows
#Linux
#VGA
#DP
#DDR3L
#RoHS Certification
#CE Certification
#FCC Certification
#In-Vehicle
Főbb jellemzőkKey features
- Support Adaptive Display Platform
- Supports 24V / 9~48V Power Board Module
- Accessible 2.5" SATA Drive Bay
- 12V/24V/48V Ignition Power Control
- Wide Operating Temperature: -40 to 70°C
System
- Processor
- Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
- Memory
- One 204-pin SODIMM up to 8GB Single Channel DDR3L 1866MHz
- BIOS
- Insyde SPI 128Mbit (supports UEFI boot only)
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4
- Display
- 1 x DP++ 1 x VGA or DVI-D (DVI-D available upon request) DP++: resolution up to 4096x2160 @ 60Hz VGA: resolution up to 2560x1600 @ 60Hz DVI-D: resolution up to 1920x1200 @ 60Hz
- Triple Displays
- Panel Module, DP++, VGA or DVI-D
Storage
- External
- 1 x 2.5" SATA 3.0 Drive Bay (accessible) 1 x mSATA (shared by Half-size Mini-PCIe Socket)
Expansion
- Interface
- 1 x Full-size Mini PCIe (USB/PCIe) 1 x Half-size Mini PCIe (USB/PCIe/mSATA) 1 x SIM Slot
Audio
- Audio Codec
- Realtek ALC262
Ethernet
- Controller
- 2 x Intel® I210IT PCIe (10/100/1000Mbps)
LED
- Indicators
- 1 x Power LED 1 x HDD LED

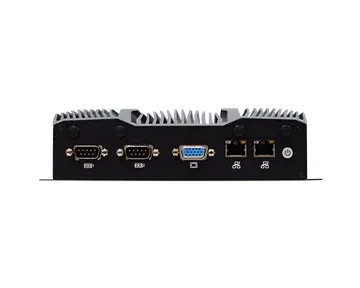

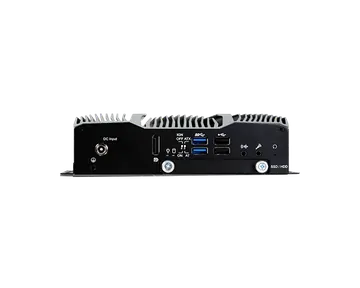

I/O
- Ethernet
- 2 x GbE (RJ-45) (10/100/1000Mbps) Support Jumbo Frame, IEEE1588v2, WOL, PXE 802.3 af PoE (PSE), Individual Port 15.4W (available upon request)
- Serial
- 2 x RS-232/422/485 (DB9) Support 5V/12V Power 2 x RS-232/422/485 (available upon request)
- USB
- 2 x USB 3.0 (type A) 2 x USB 2.0 (available upon request) 2 x USB 2.0 (type A)
- Display
- 1 x DP++ 1 x VGA or DVI-D (DVI-D available upon request)
- DIO
- 4 x DI / 4 x DO (10-pin terminal block) (available upon request)
- Buttons
- 1 x Power Button 1 x Reset Switch
- Audio
- 1 x Line-out 1 x Mic-in
- Antennas
- 4 x Wi-Fi Module Antenna Hole
- Power
- Remote Power On/Off： 1 x 2-pin Terminal Block
- Switch
- 1 x AT/ATX Switch 1 x Ignition Power On/Off Switch
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- 24 VDC Input (available upon request) 9~48 VDC Input (available upon request)
- Connector
- 3-pin Terminal Block
OS Support
- OS Support
- Windows 10 IoT Enterprise 64-bit Linux
Environment
- Operating Temperature
- -40 to 70°C
Standards and Certifications
- Certifications
- CE / FCC Class A / RoHS
Packing List
- Packing List
- 1 Single box 1 3 pin Terminal Block Connector 1 2 pin Terminal Block Connector 2 Mini PCIe screw 4 SATA screw
Patent
- Patent No. (Taiwan)
- I670589
Others
- Ignition Power On/Off
- Auto Detect Boot-up & Shut-down Voltage for Low Power Protection Support 12V/24V/48V DC Input 7-level Delay Time On/Off Configuration I/O Switch Selectable Ignition Power On/Off
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Item Name | Part Number | Description |
|---|---|---|
| HDD | 785-H25500G 785-H25320G 785-S25512G 785-S25256G 785-S25128G 785-S25064G 785-S25032G | 2.5" SATA HDD, 500GB, RoHS 2.5" SATA HDD, 320GB, RoHS 2.5" SATA SSD, 512GB MLC, RoHS 2.5" SATA SSD, 256GB MLC, RoHS 2.5" SATA SSD, 128GB MLC, RoHS 2.5" SATA SSD, 64GB MLC, RoHS 2.5" SATA SSD, 32GB MLC, RoHS |
| mSATA | 785-MS128GMF 785-MS64GMF 785-MS32GMF 785-MS16GMF | mSATA mini, 128GB MLC, RoHS mSATA mini, 64GB MLC, RoHS mSATA mini, 32GB MLC, RoHS mSATA mini, 16GB MLC, RoHS |
| Wi-Fi | 761-110091-000G | Wi-Fi Kit, RoHS |
| Power Card | 785-PWRD | Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| Power Adapter | 671-106013-000G 671-112005-100G | 60W: 12VDC/5A, DC Cord 5.5*2.5mm, Pitch 5mm, LV6, RoHS 120W: 24VDC/5A, DC Cord 5.5*2.5mm, Pitch 5mm, LV6, RoHS |
| VESA Mount | 761-TPC000-000G | ACCESSORY WALL MOUNT KITS |
