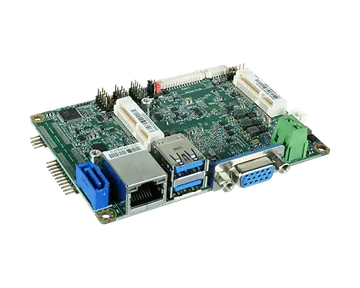

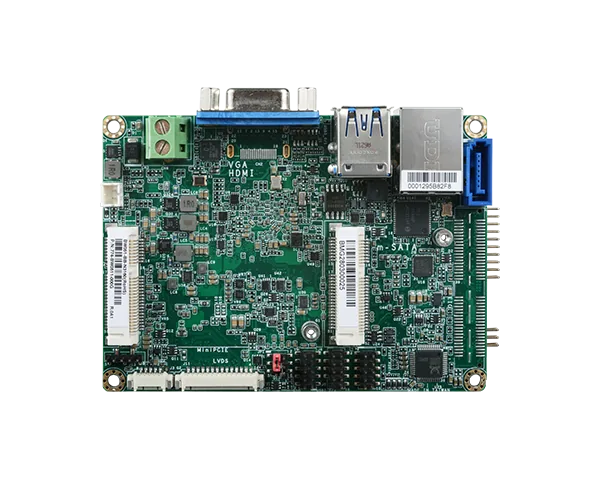

BW051
DFI's Industrial embedded motherboard provides the most dominating ones: PICO-ITX, SBC, ATX, and other kinds of industrial boards with different attributes.
- Intel® Pentium®/Celeron® N3000 2.5" Pico-ITX
- 1 DDR3L SODIMM up to 8GB
- Dual independent displays: VGA*/HDMI + LVDS
- Expansion and Storage: 1 Mini PCIe, 1 mSATA, 1 SATA 3.0
- Rich I/O: 1 Intel GbE, 2 COM, 2 USB 3.0, 2 USB 2.0
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#Mini PCIe
#Windows
#Linux
#HDMI
#VGA
#DDR3L
#RoHS Certification
Főbb jellemzőkKey features
- Intel® Pentium®/Celeron® N3000 2.5" Pico-ITX
- 1 DDR3L SODIMM up to 8GB
- Dual independent displays: VGA*/HDMI + LVDS
- Expansion and Storage: 1 Mini PCIe, 1 mSATA, 1 SATA 3.0
- Rich I/O: 1 Intel GbE, 2 COM, 2 USB 3.0, 2 USB 2.0
System
- Processor
- Intel® Pentium®/Celeron® Processor N3000 Family, BGA 1170 Intel Atom® Processor x5-E8000, Quad Core, 2M Cache, 1.04GHz, 5W Intel® Pentium® Processor N3710, Quad Core, 2M Cache, 1.6GHz (2.56GHz), 6W Intel® Celeron® Processor N3160, Quad Core, 2M Cache, 1.6GHz (2.24GHz), 6W Intel® Celeron® Processor N3060, Dual Core, 2M Cache, 1.6GHz (2.48GHz), 6W Intel® Celeron® Processor N3010, Dual Core, 2M Cache, 1.04GHz (2.24GHz), 4W
- Memory
- One 204-pin SODIMM up to 8GB Single Channel DDR3L 1600MHz
- BIOS
- Insyde SPI 64Mbit
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4
- Display
- 1 x VGA/HDMI 1 x LVDS VGA: resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 1920x1080 @ 60Hz LVDS: single channel 24-bit, resolution up to 1366x768 @ 60Hz
- Dual Displays
- VGA + LVDS, HDMI + LVDS
Expansion
- Interface
- 1 x Half-size mSATA (SATA) 1 x Full-size Mini PCIe (PCIe/USB) 1 x Extension I/O connector (available upon request)
Audio
- Audio Codec
- Realtek ALC888S-VD2-GR
Ethernet
- Controller
- 1 x Intel® I211AT PCIe (10/100/1000Mbps)
Rear I/O
- Ethernet
- 1 x GbE (RJ-45)
- USB
- 2 x USB 3.0
- Display
- 1 x VGA/HDMI
Internal I/O
- Serial
- 1 x RS-232/422/485 (2.0mm pitch, right angle type) 1 x RS-232 (2.0mm pitch, right angle type)
- USB
- 2 x USB 2.0 (2.0mm pitch)
- Display
- 1 x LVDS LCD Panel Connector
- Audio
- 1 x Audio (Line-out/Mic-in)
- SATA
- 1 x SATA 3.0 (up to 6Gb/s)
- DIO
- 1 x 8-bit DIO
- SMBus
- 1 x SMBus
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Available Upon Request
Power
- Type
- Single 12V +/-10% DC
- Connector
- 2-pin Terminal Block
- Consumption
- BW051 Typical: N3710:12V @ 0.47A (5.64Watt) Max.: N3710:12V @ 1.0864A (13.037Watt)
- RTC Battery
- Lithium 3V (210mAH)
OS Support
- OS Support
- Windows 7 (WES7) 32/64-bit Windows 8.1 (64-bit) Windows 10 IoT Enterprise 32/64-bit Debian 8 (with VESA graphic driver) CentOS 7 (with VESA graphic driver) Linux
Environment
- Temperature
- Operating: 0 to 60°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
Mechanism
- Dimensions
- 2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83")
- Height
- PCB: 1.6mm Top Side: 15.5mm Bottom Side: 8.0mm
Packing List
- Packing List
- 1 BW051 board 1 COM port cable (Length: 300mm, 2 x COM ports) A81-015020-001G 1 Serial ATA data cable (Length: 152mm) A81-002000-000G 1 Y cable for SATA and inverter power (Length: 155mm) A81-020016-018G 1 Heat sink (Height: 19mm) A71-011065-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| BW051-BB-N3060 | 770-BW0512-200G | Fanless, Intel® Pentium®/Celeron® N3060, 1 DDR3L SODIMM, 1VGA, 1 LAN, 2 COM, 4 USB, 0 to 60°C |
| BW051-BB-N3160 | 770-BW0512-000G | Fanless, Intel® Pentium®/Celeron® N3160, 1 DDR3L SODIMM, 1VGA, 1 LAN, 2 COM, 4 USB, 0 to 60°C |
| BW051-BB-E8000 | 770-BW0512-100G | Fanless, Intel Atom® x5-E8000, 1 DDR3L SODIMM, 1VGA, 1 LAN, 2 COM, 4 USB, 0 to 60°C |
| BW051-BB-N3160 | 770-BW0512-300G | Fanless, Intel Atom® N3160, 1 DDR3L SODIMM, 1HDMI, 1 LAN, 2 COM, 4 USB, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| 1 Audio cable | A81-022007-016G | Length: 160mm |
| Power adapter | 671-106012-000G | 60W, 12V, DC jack |
| USB port cable | A81-001032-016G | Length: 200mm |
| Heat spreader | A71-808301-000G | Height: 11mm |
| 2-pole terminal to DC Jack cable | A81-004013-000G |
