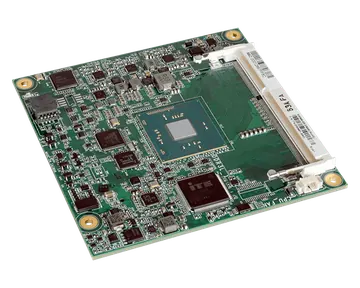

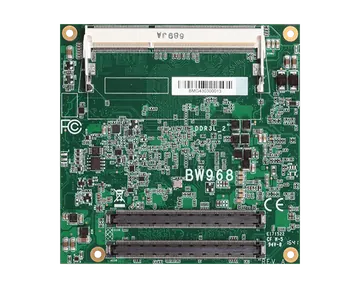

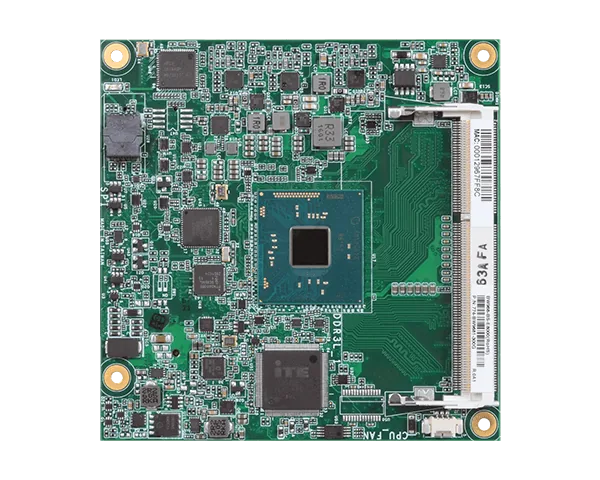

BW968
COM Express Type 6, Intel® Pentium® N3000, DDR3L, 3 PCIe x1, 12 USB, 2 SATA 3.0, 1 VGA, 1 LVDS, 1 DDI
- Intel® Pentium®/Celeron® N3000
- Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0
- Multiple expansion: 3 PCIe x1, 1 LPC, 1 I2C, 1 SMBus
- Three independent displays: VGA*/DDI + LVDS*/eDP + DDI
- Dual channel DDR3L 1600MHz SODIMM up to 8GB
- 15-Year CPU Life Cycle Support Until Q1' 30 (Based on Intel IOTG Roadmap)
Főbb jellemzők
#IoT
#Intel
#1G Ethernet
#Windows
#Linux
#HDMI
#VGA
#DP
#Multiple Expansion
#DDR3L
Főbb jellemzőkKey features
- Intel® Pentium®/Celeron® N3000
- Rich I/O: 1 Intel GbE, 4 USB 3.0, 8 USB 2.0
- Multiple expansion: 3 PCIe x1, 1 LPC, 1 I2C, 1 SMBus
- Three independent displays: VGA*/DDI + LVDS*/eDP + DDI
- Dual channel DDR3L 1600MHz SODIMM up to 8GB
- 15-Year CPU Life Cycle Support Until Q1' 30 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel® Pentium®/Celeron® Processor N3000 Family, BGA 1170 Intel® Atom™ Processor x5-E8000, Quad Core, 2M Cache, 1.04GHz, 5W Intel® Pentium® Processor N3710, Quad Core, 2M Cache, 1.6GHz (2.56GHz), 6W Intel® Celeron® Processor N3160, Quad Core, 2M Cache, 1.6GHz (2.24GHz), 6W Intel® Celeron® Processor N3060, Dual Core, 2M Cache, 1.6GHz (2.48GHz), 6W Intel® Celeron® Processor N3010, Dual Core, 2M Cache, 1.04GHz (2.24GHz), 4W
- Memory
- Two 204-pin SODIMM up to 8GB Dual Channel DDR3L 1600MHz
- BIOS
- Insyde SPI 64Mbit
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4
- Display
- 1 x VGA/DDI (DDI available upon request) 1 x LVDS/eDP (eDP available upon request) 1 x DDI VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz eDP: resolution up to 2560x1440 @ 60Hz HDMI: resolution up to 3840x2160 @ 30Hz or 2560x1600 @ 60Hz DP: resolution up to 3840x2160 @ 30Hz or 2560x1600 @ 60Hz
- Triple Displays
- VGA + LVDS + DDI DDI + eDP + DDI (available upon request)
Expansion
- Interface
- 3 x PCIe x1 (Gen 2) 1 x LPC 1 x I2C 1 x SMBus 2 x Serial (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I211AT PCIe (10/100/1000Mbps)
I/O
- USB
- 4 x USB 3.0 8 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s)
- DIO
- 1 x 8-bit DIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Available Upon Request
Power
- Type
- 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
- Consumption
- Typical: N3710: 12V @ 0.28A (3.41Watt) Max.: N3710: 12V @ 0.61A (7.35Watt)
OS Support
- OS Support
- Windows 8.1 64-bit Windows 7 (/WES7) 32/64-bit Windows 10 IoT Enterprise 64-bit Debian 8 (with VESA graphic driver) CentOS 7 (with VESA graphic driver) Linux
Environment
- Temperature
- Operating: 0 to 60°C Storage: -40 to 85°C
- Humidity
- Operating: 10 to 90% RH Storage: 10 to 90% RH
- MTBF
- 746,818 hrs @ 25°C; 402,691 hrs @ 45°C; 241,711 hrs @ 60°C Calculation Model: Telcordia Issue 2, Method Case 3 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- COM Express® Compact 95mm (3.74") x 95mm (3.74")
- Compliance
- PICMG COM Express® R2.1, Type 6
Packing List
- Packing List
- 1 BW968 board 1 Heat sink (Height: 18.68mm): A71-008122-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| BW968-BS-E8000 | 770-BW9681-300G | Fanless, Intel Atom x5-E8000, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR3L, 0 to 60°C |
| BW968-BS-N3710 | 770-BW9681-000G | Fanless, Intel Pentium N3710, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR3L, 0 to 60°C |
| BW968-BS-N3060 | 770-BW9681-200G | Fanless, Intel Celeron, N3060 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR3L, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| COM332-B carrier board kit | 770-CM3321-000G | |
| Heat spreader | A71-011070-000G | Height: 11mm |
