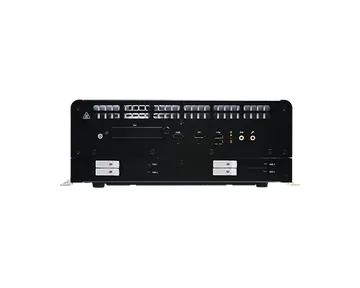

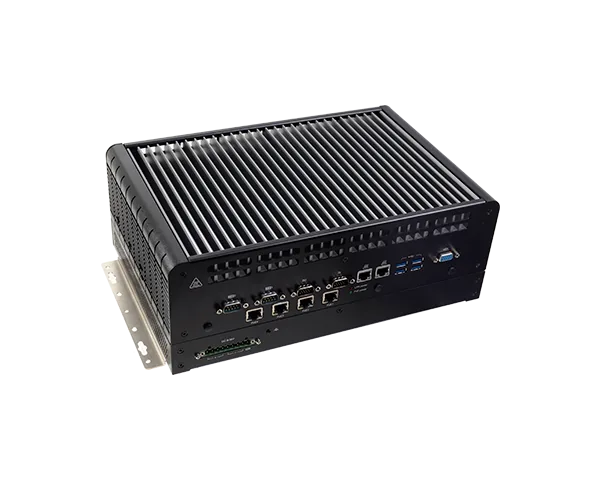

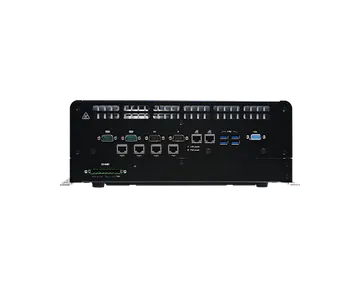

EC300-CS is the 5G/MXM-module and PoE support Fanless System powered by 8th/9th Intel® Processors. It designed for AI Vision application such as automated optical inspection (AOI) and vision guided robotics in factory, high-res diagnostic imaging in medical, traffic flow analysis in transportation, and more. EC300-CS support 8th/9th Gen Intel® Core, DDR4, 3 Mini PCIe, 2 M.2, 1 HDMI, 1 VGA, 1 DP++.
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Item Name | Part Number | Description |
|---|---|---|
| 2.5" SSD | 785-S251TBG 785-S25512G 785-S25256G 785-S25128G | 2.5" SATA SSD, 1TB MLC, -40 to 85°C, RoHS 2.5" SATA SSD, 512GB MLC, -40 to 85°C, RoHS 2.5" SATA SSD, 256GB MLC, -40 to 85°C, RoHS 2.5" SATA SSD, 128GB MLC, -40 to 85°C, RoH |
| M.2 SATA SSD | 785-M2SATA64G 785-M2SATA128G 785-M2SATA256G 785-M2SATA512G | 64GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp. 128GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp. 256GB, M.2 2280 SSD, SATA3 B+M Key, MLC, Wide Temp. 512GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K, 30u” -20~75℃ |
| Memory | 138-580004-104G 138-540002-121G | 8GB DDR4 2666Mhz SO-DIMM 1Rx8 IND 1Gx8 CL19 1.2V 4GB DDR4 2666Mhz SO-DIMM, '-40 to 85C |
| WiFi/BT module kit | 761-AP1235-000G | WiFi/Bluetooth Module ENL-R8852BE, antenna *2, 200mm SMA cables*2, Mini PCIe Bracket, screws |
| LTE module kit | 761-RC3000-001G | EG25GGB CAT4 miniPCIe module, antenna*2, 300mm SMA cables*2 |
| 5G module kit | 761-RC3000-100G | RM520N-GL-M2 M.2 module, antenna*4, 184mm SMA cables *4 |
| M12 Cable | A81-005038-054G | 8-pin M12 X-coded to RJ45 PoE cable |
| CAN bus module | 770-MPE21-100G | MPE-CAN2 MiniPCIe Full CAN Module Card Asssembly |
| Power Adapter | 671-133001-000G | 360W Meanwell GST360A,Input:85~264V,Output:12V/27.5A,220x95x46mm,L=1000mm, C8P |
| Power Cable | A81-004277-016G | HSG 2*4P/4.2mm L=100mm, UL1007, 18AWG |
| EC300-CS | 750-EC3001-000G | CPU i7-9700E, 2 COM, 6 USB, 2 GbE + 4 M12 PoE LAN, 16 DIO, DC 12V Power, 2*8GB RAM Memory, MXM RTX3000 MXM module |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
DT200-CS is the 5G and MXM-module support industrial pc powered by 8th/9th Intel® Processors. It is designed for AI Vision applications such as automated optical inspection (AOI) and vision-guided robotics in factory, high-res diagnostic imaging in medical, traffic flow analysis in transportation, and more. DT200-CS support 8th/9th Gen Intel® Core, DDR4, 3 M.2, 1 DP++, 4 DP.
DFI's EC100-XNX is the PoE module supports Embedded System powered by NVIDIA® Jetson Xavier™ NX. It brings versatility perfect for Electric bus, Autonomous, MaaS, Fleet management, Robotaxi, AI Railway surveillance, Driver-less, Autopilot, track monitoring, and more.
DFI's EC102-XNX is the AI module supports Embedded System powered by NVIDIA® Jetson Xavier™ NX. It brings versatility perfect for Electric bus, Autonomous, MaaS, Fleet management, Robotaxi, AI Railway surveillance, Driver-less, Autopilot, track monitoring, and more.
Fanless AI-Enabled Embedded System, 8th/9th Gen Intel® Core™, AI Accelerated, 5G, DDR4, 4 DP (from MXM), 1 DP++, 3 M.2, 4 LAN, 4 USB 3.1 Gen2, 2 COM
