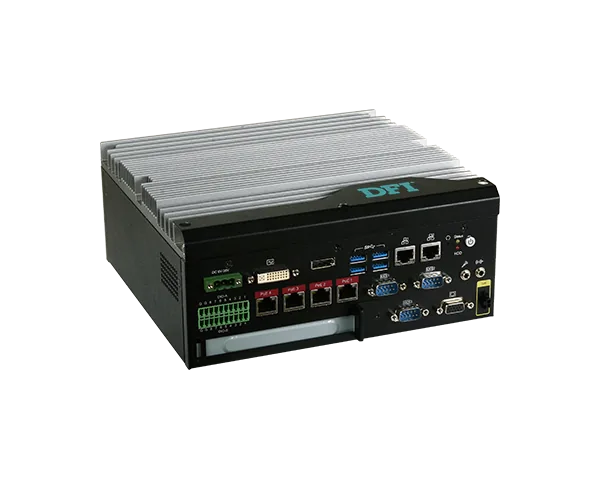

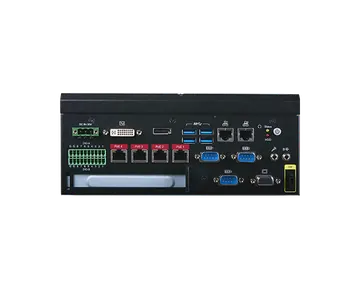

EC510/EC511-SD

EC510/EC511-SD, Fanless Embedded System with 6th/7th Gen Intel® i3/i5/i7 or Celeron®, designed with modual design and customizable I/O Boards which is ideal for AGV/bridge crane/ITS applications

  • 6th/7th Generation Intel® Core™ with Intel® Q170
  • Supports DDR4 SODIMM up to 32GB
  • Three independent displays: 1 VGA + 1 DVI + 1 DP
  • Supports 4 PoE GLAN ports and one expansion slot
  • 2 Mini PCIe slots support mSATA and Wi-Fi modules
  • 10-Year CPU Life Cycle Support Until Q2' 25 (Based on Intel IOTG Roadmap)
KifutóEnd of life EC510/EC511-SD Embedded Solution Powered by: DFI Proprietary Motherboard

Főbb jellemzők

Wide Voltage: 9~36V DC-in
Fanless Design
4K2K Display
DDR4
Triple Independent Display

Tanúsítványok

RoHS Certification
CE Certification
FCC Certification
#Intel #PoE #Mini PCIe #Fanless Design #4K2K Display #PCIe x16 #Windows #DVI-I #DVI-D #VGA #DP #DDR4 #RoHS Certification #CE Certification #FCC Certification #Material Handling #SCARA #Legacy ISA/PCI Expansion Port

Főbb jellemzőkKey features

  • 6th/7th Generation Intel® Core™ with Intel® Q170
  • Supports DDR4 SODIMM up to 32GB
  • Three independent displays: 1 VGA + 1 DVI + 1 DP
  • Supports 4 PoE GLAN ports and one expansion slot
  • 2 Mini PCIe slots support mSATA and Wi-Fi modules
  • 10-Year CPU Life Cycle Support Until Q2' 25 (Based on Intel IOTG Roadmap)

Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
