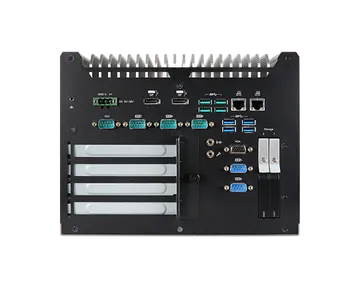

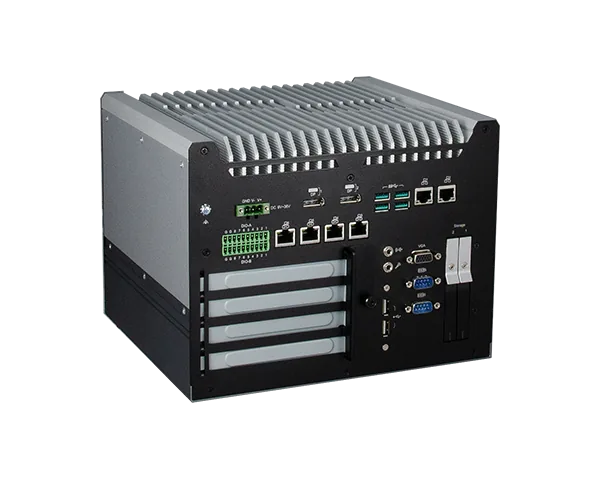

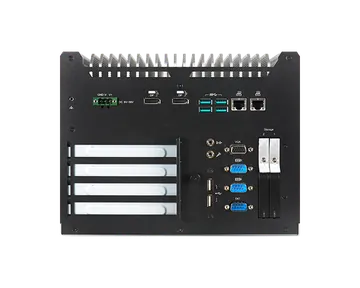

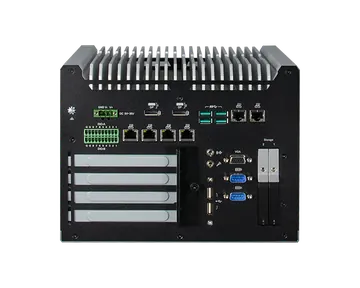

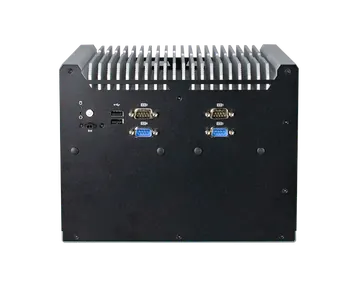

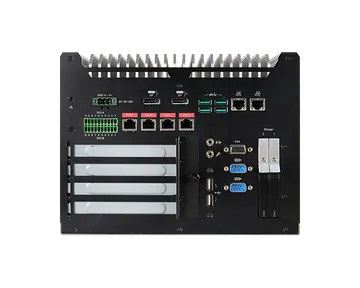

EC543-CS

DFI’s EC5XX-CS series is a PoE/5G support modular-designed system powered by 8th/9th Generation Intel® Core™ processors, providing excellent computing performance. Not only Built with rich industrial I/O interfaces and M.2 expansion slots but also supported AI accelerator card, EC5XX-CS series serves as a perfect solution for machine vision, robotic arm, and high-end factory automation.

  • 8th/9th Generation Intel® Core™ with Intel® Q370
  • Supports DDR4 SODIMM up to 64GB
  • Three independent displays: 1 VGA + 2 DP++
  • Support 4 PoE (EC543-CS6G86E-Q configuration)
  • 3 PCIe, 1 PCI, and 3 M.2 slots support NVMe
  • Support 5G communication
  • Operating temperature: -20 to 60°C
  • 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)
Minta elérhetőSample available EC543-CS Embedded Solution Powered by: DFI Proprietary Motherboard
Wide-temp: -20~70°C
Wide Voltage: 9~36V DC-in
Fanless Design
Windows
Linux
Multiple Expansion
Triple Independent Display
RoHS Certification
CE Certification
FCC Certification
UKCA Certification
#IoT #Intel #5G #PoE #Fanless Design #1G Ethernet #PCIe x16 #Windows #Linux #VGA #DP #Multiple Expansion #DDR4 #CE Certification #FCC Certification #High-Performance #AGV #AMR #Material Handling #SCARA #Service Robot #Legacy ISA/PCI Expansion Port #UKCA Certification

Főbb jellemzőkKey features

  • 8th/9th Generation Intel® Core™ with Intel® Q370
  • Supports DDR4 SODIMM up to 64GB
  • Three independent displays: 1 VGA + 2 DP++
  • Support 4 PoE (EC543-CS6G86E-Q configuration)
  • 3 PCIe, 1 PCI, and 3 M.2 slots support NVMe
  • Support 5G communication
  • Operating temperature: -20 to 60°C
  • 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)

Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
