DFI Networker Kft.

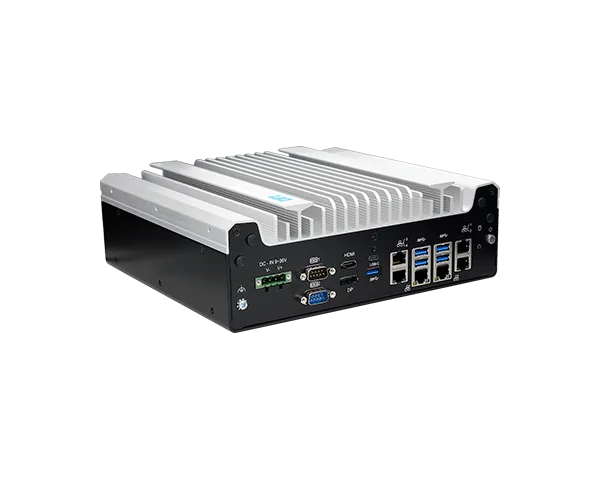

EC600-RPS

Fanless Embedded System, 14th/13th/12th Gen Intel® Core™, OOB, 5G, DDR5, 5 M.2, 1 mini-PCIe, 2 2.5GbE, 4 GbE, 5 USB3.2, 1 USB type-C, 1 VGA, 1 HDMI, 1 DP++, 10 COM, 9~36V DC-in, -20~70°C

  • 14th/13th/12th Generation Intel® Core™ with Intel® H610E/R680E
  • Supports DDR5 SODIMM up to 64GB
  • Rich I/O connectivity: 2 2.5GbE, 4 GbE(or 2 GbE, 2 PoE), 10 COM, 5 USB 3.2(Gen2x1), 1 USB Type-C
  • Multiple Expansion: 5 M.2 slots
  • Support 5G Communication
  • Operating Temperature: -20 to 70°C
  • 15-Year CPU Life Cycle Support Until Q4' 36 (Based on Intel IOTG Roadmap)
  • Support M2A-OOB
ElőzetesPreliminary
Wide-temp: -20~70°C
Fanless Design
Multiple Expansion
15 Years CPU Life Cycle Support
5G
DDR5
Rich I/O
Out-of-band (OOB)
RoHS Certification
CE Certification
FCC Certification
KC Certification
UKCA Certification
#12th Gen Intel® Core™ Processor #DDR5 #13th Gen Intel® Core™ Processor #Windows 10 #9~36V DC-in #M.2 #M2A-OOB #Out-Of-Band (OOB) #14th Gen Intel® Core™ Processor #IoT #Windows 11 #Intel #SIM Slot #5G #Fanless Design #Windows #Linux #HDMI #VGA #DP #RoHS Certification #CE Certification #FCC Certification #KC Certification #2.5G Ethernet #UKCA Certification

Főbb jellemzőkKey features

  • 14th/13th/12th Generation Intel® Core™ with Intel® H610E/R680E
  • Supports DDR5 SODIMM up to 64GB
  • Rich I/O connectivity: 2 2.5GbE, 4 GbE(or 2 GbE, 2 PoE), 10 COM, 5 USB 3.2(Gen2x1), 1 USB Type-C
  • Multiple Expansion: 5 M.2 slots
  • Support 5G Communication
  • Operating Temperature: -20 to 70°C
  • 15-Year CPU Life Cycle Support Until Q4' 36 (Based on Intel IOTG Roadmap)
  • Support M2A-OOB

Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
