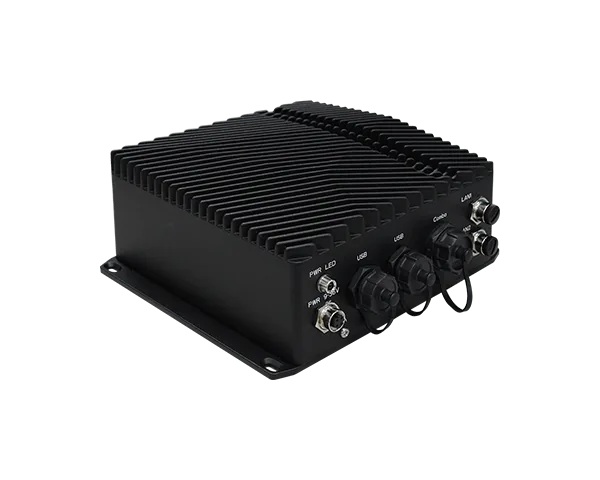

ECX700-ASL
Fanless Embedded PC, Intel Atom® Processor Industrial RE Series, IP68/ IP69K, support smart vent, Wi-Fi / LTE, MIL-STD-810H 514.8C-5, -40 to 70°C, LPDDR5 memory down, eMMC, 2 USB 3.2, 2 2.5GbE, HDMI, 2 COM, 2 CAN, DC 9~36V, TPM 2.0
- Waterproof and dustproof design certified to IP68 and IP69K
- Ruggedized design with vibration/shock resistance and wide operating temperature -40°C to 70°C
- Intel® Atom® Processor X7433RE/X7835RE Amston Lake CPU
- 8GB/16GB LPDDR5 4800 Memory down
- Rich waterproof I/O including 2x 2.5GbE, 2x USB 3.2, 1x HDMI, 4x antenna, 1x Combo port, and 1x IP67 vent
- Multiple expansion slots for Wifi/BT, 4G/LTE/5G cellular, NVMe SSD and function modules
- Wide voltage: 9V~36V DC-IN
- Long-term Promise of 15-Year CPU Life Cycle Until Q4' 31 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#9~36V DC-in
#Edge AI Computing
#IP69K
#M.2
#eMMC
#Intel® Processor Industrial RE Series
#IP68
#IoT
#AI
#Windows 11
#Intel
#Compact PC
#5G
#CAN-Bus
#Fanless Design
#Windows
#Linux
#HDMI
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
Főbb jellemzőkKey features
- Waterproof and dustproof design certified to IP68 and IP69K
- Ruggedized design with vibration/shock resistance and wide operating temperature -40°C to 70°C
- Intel® Atom® Processor X7433RE/X7835RE Amston Lake CPU
- 8GB/16GB LPDDR5 4800 Memory down
- Rich waterproof I/O including 2x 2.5GbE, 2x USB 3.2, 1x HDMI, 4x antenna, 1x Combo port, and 1x IP67 vent
- Multiple expansion slots for Wifi/BT, 4G/LTE/5G cellular, NVMe SSD and function modules
- Wide voltage: 9V~36V DC-IN
- Long-term Promise of 15-Year CPU Life Cycle Until Q4' 31 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel® Atom® X7433RE 4 Cores, 1.5GHz to 3.4 GHz Intel® Atom® X7835RE 8 Cores, 1.3GHz to 3.6GHz
- Memory
- 8GB/16GB LPDDR5 4800 Memory down
- BIOS
- AMI SPI 256Mbit (supports UEFI boot only)
Graphics
- Controller
- Intel® UHD Graphics
- Feature
- Execution Units: Up to 32 EUs 3D API: Open GL 4.6, DirectX12, Vulkan 1.2 (Windows) Mesa 3D, OpenGL 4.6, Vulkan 1.2 (Linux) Precision: FP32, FP16, INT8 Compute: OpenCL 3.0
- Display
- 1 x HDMI
Storage
- eMMC
- 64GB / 128GB Available
Expansion
- Interface
- 1 x M.2 2230 E key (USB 2.0/PCIe, support CNVi) 1 x M.2 3042/3052 B key: USB3.0/USB2.0/PCIe with SIM 1 x M.2 2242/2280 M key (*PCIe/SATA)
Ethernet
- Controller
- 2 x Intel Ethernet controller i226 2.5GbE
LED
- Indicators
- 1 x Power Status LED

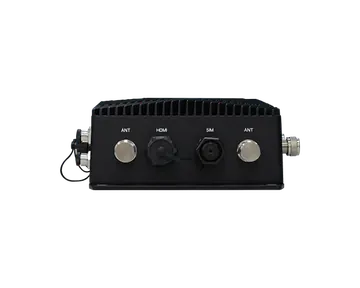

Front I/O
- Display
- 1 x HDMI
- Antenna
- 2 x Antenna (WiFi)
- SIM
- 1 x SIM card slot

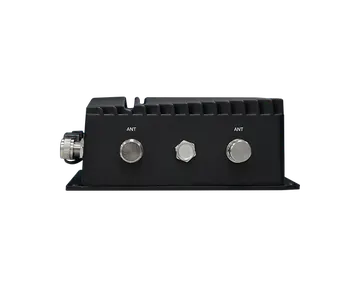

Top I/O
- Antenna Connectors
- 2 x Antenna (LTE)
- Vent
- 1 x Vent

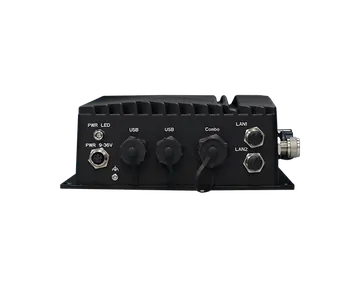

Bottom I/O
- Ethernet
- 2 x 2.5GbE
- USB
- 2 x USB 3.2
- Combo Port
- 2 x RS232 and 2 x Can bus protocol (4 x Can bus protocol by project support)
- Power
- 1 x DC-Input
Power
- Type
- DC-in 9~36V
- Connector
- M12 D-code
OS Support
- Microsoft
- Windows® 11 IoT Enterprise
- Linux
- Linux Ubuntu 22.04
Environment
- Operating Temperature
- -40 to 70°C with 0.6m/s air flow
- Storage Temperature
- -40 to 85°C
- Relative Humidity
- 5 to 95% RH (non-condensing)
Mechanism
- Mounting
- Wall mount
- Dimensions (W x H x D)
- 222 X 192 X 88.6mm (with wall-mount bracket)
- Weight
- 3 Kg
Standards and Certifications
- Shock
- Operation shock test: IEC-60068-2-27 MIL-STD-810H Method 516.8, Procedure I
- Vibration
- Operation Vibration test: IEC 60068-2-64 MIL-STD-810H Figure 514.8C-6 Category 4
- Certifications
- CE, FCC class A, ROHS
- Construction
- IP68 (1.5M, 30Min) / IP69K enclosure
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| ECX700-ASL2020A-X33 | 750-ECX7000-000G | ECX700-ASL: ECX700-ASL2020A-X33, IP68 Box PC, ATOM X7433RE, 64GB eMMC, 16GB memory down, 2 COM, 2 CAN, 2 USB, 1 HDMI, 2 LAN, DC9~36V, TPM2.0, Wide Temp. -40~70 F/G SYSTEM RoHS |
| ECX700-ASL2020A-X35 | 750-ECX7000-100G | ECX700-ASL: ECX700-ASL2020A-X35, IP68 Box PC, ATOM X7835RE, 64GB eMMC, 16GB memory down, 2 COM, 2 CAN, 2 USB, 1 HDMI, 2 LAN, DC9~36V, TPM2.0, Wide Temp. -40~70 F/G SYSTEM RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| External USB cable | A81-001129-068G | IP67 USB Plug to USB Plug, 300mm |
| External HDMI cable | A81-026004-068G | IP67 HDMI Plug to HDMI Plug, 300mm |
| WiFi / LTE Rod type Antenna | 612-139917-000G | Omni-S Thimble IP68 LTE ANTENNA, 1710-7125MHz, REVISE N TYPE, L= 55mm,1399.17.0224 (HUBER+SUHNER) RoHS *Note: Designed for high vibration environments such as mining and construction vehicles. |
| WiFi Cabled type Antenna | 612-RFA25T-100G | ANTENNA, 2400-2500MHz, 5150-5925MHz, REVISE N TYPE, L= 53mm, RFA-25-T288-41-1M-N (ARISTOTLE) RoHS *Note: Designed to resist corrosion under high temperature, humidity, and salt-spray exposure. |
| LTE Cabled type Antenna | 612-RFALTE-200G | ANTENNA, 698-960MHz, 1710-2170MHz, 2300-2700MHz, REVISE N TYPE, L= 53mm, RFA-LTE-T288-41-1M-N (ARISTOTLE) RoHS *Note: Designed to resist corrosion under high temperature, humidity, and salt-spray exposure. |
