ES220-CS

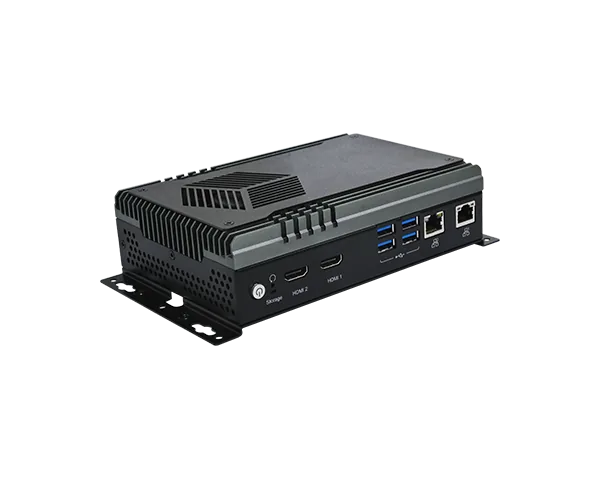

DFI's ES220-CS is the quiet Industrial Computer powered by 8th/9th Gen Intel Core Processors. It brings versatility perfect for AI License Plate identification, Technology Enforcement, Traffic Flow, MaaS, and more. DFI ES220-CS support Quiet and Compact System, 2 HDMI 2.0 @60Hz, 8th/9th Gen Intel® Core™, DDR4, M.2, 2.5" SSD, 6 USB, 2 LAN, 2 COM.
- 8th/9th Gen Intel® Core™ Processors with Intel® C246/Q370/H310 Chipset
- 2 DDR4 SODIMM up to 64GB
- Single/Triple storage: 1 M.2 SSD + 2 2.5" SSD (option) (with RAID supported)

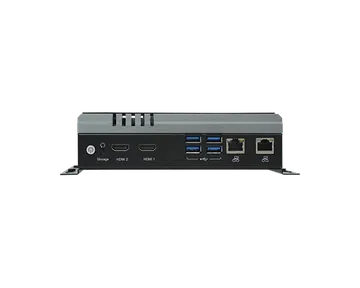

- Rich I/O connectivity: 2 Intel GbE, 4 USB 3.1, 2 USB 2.0, 2 COM
- 2 HDMI 2.0 Support resolution 4K@60Hz
- Acoustic level support full load 36dB @operating temperature 45° C
- 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Edge AI Computing
#IoT
#Intel
#Compact PC
#Compact Size
#4K2K Display
#Windows
#HDMI
#12V DC-in
#DDR4
#RoHS Certification
#FCC Certification
Főbb jellemzőkKey features
- 8th/9th Gen Intel® Core™ Processors with Intel® C246/Q370/H310 Chipset
- 2 DDR4 SODIMM up to 64GB
- Single/Triple storage: 1 M.2 SSD + 2 2.5" SSD (option) (with RAID supported)
- Rich I/O connectivity: 2 Intel GbE, 4 USB 3.1, 2 USB 2.0, 2 COM
- 2 HDMI 2.0 Support resolution 4K@60Hz
- Acoustic level support full load 36dB @operating temperature 45° C
- 15-Year CPU Life Cycle Support Until Q2' 34 (Based on Intel IOTG Roadmap)
System
- Processor
- 9th Gen Intel® Core™ Processors, LGA 1151 Socket Intel® Core™ i7-9700TE Processor (8C/8T, 12M Cache, 3.6GHz, TDP 35W) Intel® Core™ i5-9500TE Processor (6C/6T, 9M Cache, 3.6GHz, TDP 35W) Intel® Core™ i3-9100TE Processor (4C/4T, 6M Cache, 3.2GHz, TDP 35W) 8th Gen Intel® Core™ Processors, LGA 1151 Socket Intel® Xeon® E-2278GEL Processor (8C/16T; Max speed 3.9GHz, TDP 35W) (C246 only) Intel® Core™ i7-8700T Processor (6C/12T, 12M Cache, 4.0GHz; TDP 35W) Intel® Core™ i5-8500T Processor (6C/6T, 9M Cache, 3.5GHz; TDP 35W) Intel® Core™ i3-8100T Processor (4C/4T, 6M Cache, 3.1GHz; TDP 35W) Intel® Pentium® G5400T Processor (2C/4T, 4M Cache, 3.1GHz; TDP 35W) Intel® Celeron® G4900T Processor (2C/2T, 2M Cache, 2.9GHz; TDP 35W)
- Chipset
- Intel® C246/Q370/H310 Chipset
- Memory
- 2 x 260-pin SODIMM up to 64GB (ECC : C246 only) Dual Channel DDR4 2666MHz
- BIOS
- AMI SPI 128Mbit
Graphics
- Controller
- Intel® UHD Graphics 610/630
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
- Display
- 2 x HDMI 2.0 HDMI: resolution up to 4096x2160 @ 60Hz
- Dual Displays
- 2 x HDMI 2.0
Storage
- Internal
- 2 x 2.5” SATA bay (optional) support RAID 0/1
Expansion
- Interface
- 1 x M.2 2280 M key (PCIe x4/SATA 3.0) 1 x M.2 2230 E key (PCIe x1/USB2.0), WiFi
Ethernet
- Controller
- 2 x Intel® I219/I210IT (10/100/1000Mbps) (Support Intel® iAMT)
LED
- Indicators
- 1 x Power LED 1 x HDD LED

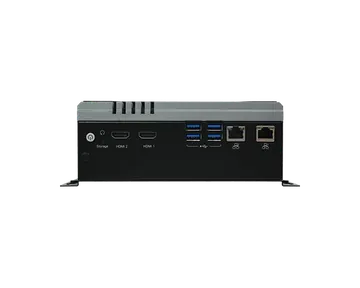

Front I/O
- Ethernet
- 2 x GbE (RJ-45)
- USB
- 4 x USB 3.1 (type A)
- Display
- 2 x HDMI
- Buttons
- 1 x Power Button 1 x Reset Button

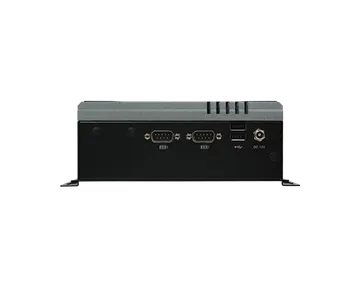

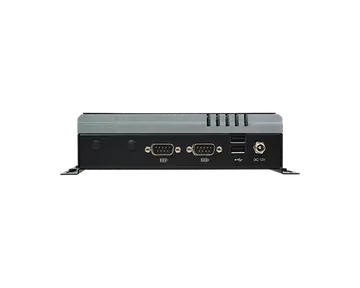

Rear I/O
- Serial
- 2 x RS232/RS422/RS485 (DB9) or 1 x RS232/RS422/RS485 (DB9)(COM1) + 1 x 8bit DIO (DB9)
- USB
- 2 x USB 2.0 (type A)
- Wi-Fi Antenna
- 2 x Opening Antenna Hole
Cooling
- Fan
- Active Fan
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM2.0 (option)
Power
- Type
- 12V DC-in jack lockable External power brick AC Power 100-250V, 50/60Hz
OS Support
- Microsoft
- Windows 10 IoT Enterprise 2019 LTSC + RS5 Windows 10 Professional
Environment
- Operating Temperature
- -5° to 45° C
- Storage Temperature
- -20° to 60° C
- Relative Humidity
- 5 to 90% RH
- Acoustic Level
- Full Load 36dB @op. temp. 45° C Full Load 30dB @op. temp. 25° C Idle Mode 26dB @op. temp. 45° C Idle Mode 21dB @op. temp. 25° C
Mechanism
- Construction
- Metal + Aluminum
- Mounting
- Wall mount VESA mount 75x75/10x10cm (optional)
- Dimensions (W x H x D)
- 175x48.5x120mm (1 Storage: 1 x m.2 SSD) 175x73.5x120mm (3 Storage: 1 x m.2 SSD + 2x 2.5” SSD)
- Weight
- 1.315 kg (1 Storage: 1 x m.2 SSD) 1.665 kg (3 Storage: 1 x m.2 SSD + 2x 2.5” SSD)
Standards and Certifications
- Certifications
- FCC, CE Class B, ROHs, WEEE
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| ES220-CS | 750-ES2200-000G | ES220-CS, CS251-H310, 2HDMI, 2LAN, 2COM, F/G SYSTEM, RoHS |
| ES220-CS | 750-ES2200-100G | ES220-CS, CS251-Q370, 2HDMI, 2LAN, 2COM, F/G SYSTEM, RoHS |
| ES220-CS | 750-ES2200-200G | ES220-CS, CS251-C246, 2HDMI, 2LAN, 2COM, F/G SYSTEM, RoHS |
| ES220-CS | 750-ES2200-300G | ES220-CS, CS251-H310, 2HDMI, 2LAN, 2OM, 2x 2.5”bay, F/G SYSTEM, RoHS |
| ES220-CS | 750-ES2200-400G | ES220-CS, CS251-Q370, 2HDMI, 2LAN, 2COM, 2x 2.5”bay, F/G SYSTEM, RoHS |
| ES220-CS | 750-ES2200-500G | ES220-CS, CS251-C246, 2HDMI, 2LAN, 2COM, 2x 2.5”bay, F/G SYSTEM, RoHS |
| ES220-CS | 750-ES2200-600G | ES220-CS3S, CS251-C246, i3-9100TE, DDR4 4G ECC x2, SSD 2.5" 128GB x2 + M.2 SATA 128GB GB, F/G SYSTEM, RoHS |
| ES220-CS | 750-ES2200-700G | ES220-CS1S, CS251-Q370, i7-9700TE, DDR4 4Gx2, SSD M.2 PCIe 256GB, F/G SYSTEM, RoHS |
| ES220-CS | 750-ES2200-800G | ES220-CS1S, CS251-H310, I3-9100TE, DDR4 4G, SSD M.2 SATA 128GB, F/G SYSTEM, RoHS |
| ES220-CS | 750-ES2200-900G | ES220-CS3S, CS251-H310, G4900T, DDR4 4G, INNOAGE SATA M.2 64GB TLC w/RJ45, Ubuntu 18.04, F/G SYSTEM, RoHS |
| ES220-CS | 750-ES2200-A00G | ES220-CS3S, CS251-Q370, I5-9500TE, 2x DDR4 4G, INNOAGE SATA 2x 2.5” 128GB TLC w/RJ45, Win10 IoT 2019 Value, F/G SYSTEM, RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| CPU | 143-101805-500G 143-10220G-500G 143-10220E-500G 143-10240A-500G 143-102104-501G 143-103105-500G 143-103103-500G 143-112900-500G | i7-9700TE, 1.8GHz to 3.8GHz, 8C8T, 12M cache, TDP 35W i5-9500TE, 2.2GHz to 3.6GHz, 6C6T, 9M cache, TDP 35W i3-9100TE, 2.2GHz to 3.2GHz, 4C4T, 6M cache, TDP 35W i7-8700T, 2.4GHz to 4GHz, 6C12T, 12M cache, TDP 35W i5-8500T, 2.1GHz to 3.5GHz, 6C6T, 9M cache, TDP 35W i3-8100T, 3.1GHz, 4C4T, 6M cache, TDP 35W G5400T, 3.1GHz, 2C4T, 4M cache, TDP 35W G4900T, 2.9GHz, 2C4T, 2M cache, TDP 35W |
| Memory | 138-540002-106G 138-5G0163-102G 138-580004-102G 138-540002-107G 138-580004-103G TBD TBD TBD | 4GB DDR4 2666Mhz SO-DIMM 1Rx8 512Mx8 CL19 1.2V 16GB DDR4 2666Mhz SO-DIMM 2Rx8 1Gx8 CL19 1.2V 8GB DDR4 2666Mhz SO-DIMM 1Rx8 1Gx8 CL19 1.2V 4GB DDR4 2666Mhz ECC-SO-DIMM 1Rx8 512Mx8 CL19 1.2V (C246 only) 8GB DDR4 2666Mhz ECC-SO-DIMM 1Rx8 1Gx8 CL19 1.2V (C246 only) 32GB DDR4 2666Mhz SO-DIMM 2Rx8 2Gx8 CL19 1.2V 16GB DDR4 2666Mhz ECC-SO-DIMM 2Rx8 1Gx8 CL19 1.2V (C246 only) 32GB DDR4 2666Mhz ECC-SO-DIMM 2Rx8 1Gx8 CL19 1.2V (C246 only) |
| OS | 921-151310-000G 921-151320-000G 921-151340-000G 921-151330-000G 642-000W10-000G | Win10 IoT Ent 2019 LTSC MultiLang High End EPKEA Win10 IoT Ent 2019 LTSC MultiLang High End PKEA Win10 IoT Ent 2019 LTSC MultiLang High Value EPKEA Win10 IoT Ent 2019 LTSC MultiLang High Value PKEA Win Pro 10 64Bit English 1pk DSP OEI DVD version 1809 |
| Power Cord | 332-700010-201G A81-004003-000G A81-000001-000G 332-054034-005G A81-004056-000G A81-004031-007G | Power Cord US 3pin 1830mm Length Power Cord EU 2pin 1830mm Length Power Cord China 3pin 1830mm Length Power Cord Japan 3pin 1830mm Length, with PSE logo label on cable (for worldwide) Power Cord Japan 3pin 2000mm Length, with PSE logo mark on inlet plug (for Japan) DC Cord UL 1185 5.5*2.5*9.5mm with Nut to stripped and tinned; L1000mm |
| M.2 SSD | 638-703218-100G TBD 638-712811-100G 638-725615-100G 638-712818-100G 638-725614-100G 638-751205-100G 638-701T01-100G 638-712816-110G 638-725608-100G TBD TBD | 32GB, M.2 2280 SSD, SATA3 B+M Key, MLC 64GB, M.2 2280 SSD, SATA3 B+M Key, MLC 128GB, M.2 2280 SSD, SATA3 B+M Key, MLC 256GB, M.2 2280 SSD, SATA3 B+M Key, MLC 128GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K 256GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K 512GB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K 1TB, M.2 2280 SSD, SATA3 B+M Key, 3D TLC, PE: 3K 128GB, M.2 2280, PCIe Gen3x4, M-Key, 3D TLC, PE: 3K 256GB, M.2 2280, PCIe Gen3x4, M-Key, 3D TLC, PE: 3K 512GB, M.2 2280, PCIe Gen3x4, M-Key, 3D TLC, PE: 3K 1TB, M.2 2280, PCIe Gen3x4, M-Key, 3D TLC, PE: 3K |
| 2.5” SSD | 635-600322-1A0G 635-600644-100G 635-601282-1E0G 635-602562-121G 635-605122-130G 635-601286-110G 635-602566-150G 635-605126-140G 635-610006-110G | 32GB, 2.5" SSD, SATA3, MLC 64GB, 2.5" SSD, SATA3, MLC 128GB, 2.5" SSD, SATA3, MLC 256GB, 2.5" SSD, SATA3, MLC 512GB, 2.5" SSD, SATA3, MLC 128GB, 2.5" SSD, SATA3, 3D TLC, PE: 3K 256GB, 2.5" SSD, SATA3, 3D TLC, PE: 3K 512GB, 2.5" SSD, SATA3, 3D TLC, PE: 3K 1TB, 2.5" SSD, SATA3, 3D TLC, PE: 3K |
| M.2 WIFI | 761-OPS150-001G TBD | 1x intel M.2 2230 AC 3168.NGWG 802.11abgn/ac 1T1R + Bluetooth 4.2, 2x MHF4 to SMA cable 200mm 2x dipole antenna 1x M2x4mm screw 1x Intel® Wireless-AC 9260, 2230, 2x2 AC+BT, Gigabit No vPRO 2x MHF4 to SMA cable 200mm 2x dipole antenna 1x M2x4mm screw |
| VESA MOUNT | TBD | 1x VESA mount bracket for ES220-CS, SGCC 1.2T, Black coating 6x Screw P/W #6-32 L=6mm OD=6.6mm Zn coating 4x M.4*10mm w/spring washer |
| Adapter | 671-110006-100G TBD | Power Adapter AC/DC 100W 12V, inlet C14 Power Adapter AC/DC 160W 12V, inlet C14 |
