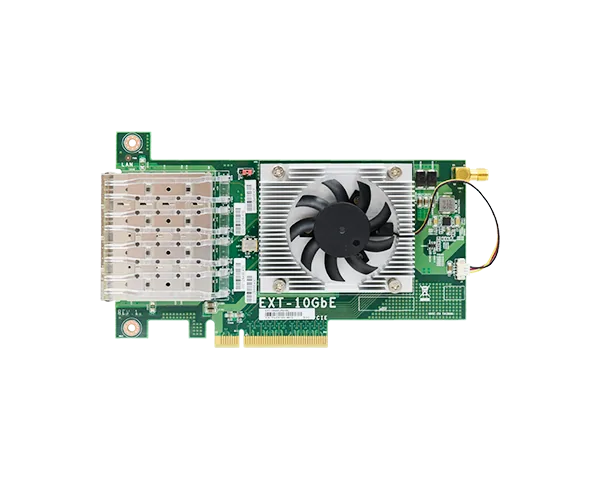

EXT-10GbE
LAN Extension Module Card
- Chip: XL710-BM1
- Mode: 10GbE
- Ports: 4 x 10GbE SFP+
- Input Interface: PCIe Gen3 x8
- Form factor: PCIe x8
Főbb jellemzők
Tanúsítványok
#Windows 10
#Windows
#10G Ethernet
Főbb jellemzőkKey features
- Chip: XL710-BM1
- Mode: 10GbE
- Ports: 4 x 10GbE SFP+
- Input Interface: PCIe Gen3 x8
- Form factor: PCIe x8
Specifications
- Features
- ◆ Controller • Intel® XL710 ◆ I/O Connectors • 4 x 10GbE SFP+ ◆ Power • 12V, 9W ◆ Mechanical Design • 161.04 x 100.15 mm ◆ Temperature • Operating: 0 to 55°C • Storage: -40 to 85°C ◆ Humidity • Operating: 5% to 95% non-condensing • Storage: 5% to 95% non-condensing ◆ Form Factor • PCIe x8 ◆ Regulation • CE, FCC class B, RoHS ◆ Compatibility • Win10 x64 / WinSVR2016/ WinSVR2019/ • Ubuntu18.04
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| EXT-10GbE | 770-EX10G1-001G | 4 10GbE, Operating temp.: 0~55°C |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
