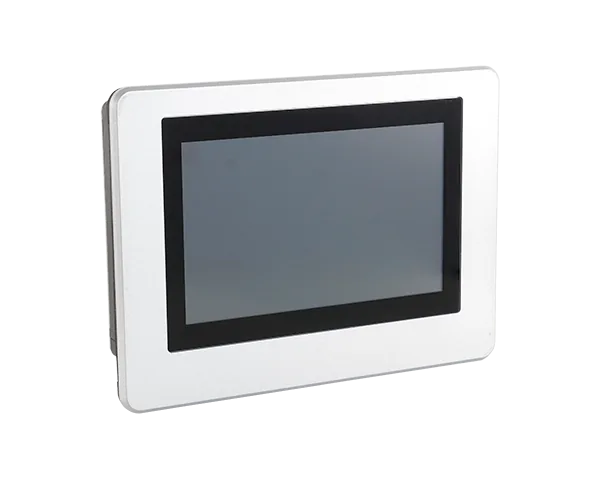

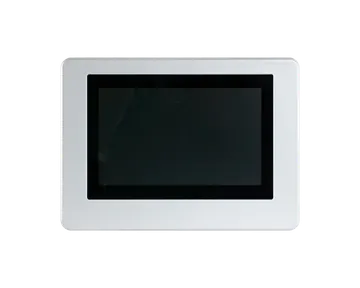

IDP070-MS
7" Industrial Touch Monitor, Projected Capacitive Multi-touch/Resistive Touch
- Two Types Touch: Projected Capacitive Multi-touch / Resistive Touch
- IP Rating: IP65 Front Panel
- Support 3 Signal Interfaces: VGA/DVI/HDMI
- Support Modular Extended Display: Wifi Display
- Various Mounting Type: VESA Mount 75 / Panel Mount
- Advanced Voltage: Support USB Type C (Optional)
Főbb jellemzők
Tanúsítványok
#IDP-MS Series
#IDP Series
#IP65 Front Panel Protection
#HDMI
#DVI-D
#VGA
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- Two Types Touch: Projected Capacitive Multi-touch / Resistive Touch
- IP Rating: IP65 Front Panel
- Support 3 Signal Interfaces: VGA/DVI/HDMI
- Support Modular Extended Display: Wifi Display
- Various Mounting Type: VESA Mount 75 / Panel Mount
- Advanced Voltage: Support USB Type C (Optional)
Display and Touch Screen
- Display
- 7" TFT LCD Monitor Projected Capacitive Multi-touch / Resistive Touch
- Brightness
- 500 cd/m²
- Contrast
- 400 : 1
- Active Area
- 152.4mm x 91.44mm (H x V)
- Response Time
- 5ms
- View Angle
- 130/140
- Backlight Lifetime
- 40,000 Hrs LED Backlight
- Max. Resolution
- 800 x 480

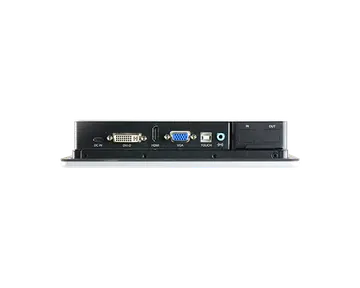

Bottom I/O
- Serial
- 1 x RS232 Remote Control Power on/off, sound, backlight, Light Sensor ON/OFF
- USB
- 1 x USB Type B port (touch to external PC)
- Display
- 1 x VGA resolution 800 X 480 1 x DVI-D resolution 800 X 480 1 x HDMI resolution 800 X 480
- Audio
- 1 x Line-in
- External Display (opt.)
- Wifi Display
Power
- Type
- 1 x DC Power (Optional), 12 to 24 VDC or 1 x USB Type C DC Power (Optional), 20 VDC input
- Consumption
- 5.51W Max.
Environment
- Operating Temperature
- 0°C ~ 75°C standard -40°C ~ 75°C (Optional)
- Storage Temperature
- -30°C ~ 85°C
- Relative Humidity
- 90% RH@ 60°C, 240Hrs (non-condensing)
Mechanism
- Construction
- Aluminum Front Bezel
- IP Rating
- IP65 Front Panel
- Mounting
- VESA Mount/ Panel Mount/ Din-rail
- Dimensions (W x H x D)
- 224 x 163.55 x 43.6
- Weight
- 1.3 kg
Standards and Certifications
- Certifications
- CE, FCC Class A, UKCA
Packing List
- Packing List
- 1 IDP070-MS Monitor 1 Audio Cable 1 VGA Cable 1 USB Cable 1 RS232 Cable 1 Quick Guide
Others

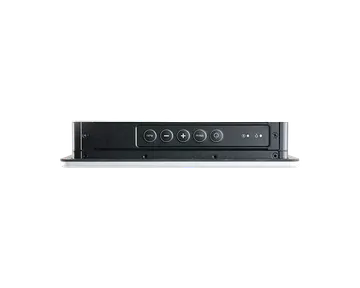

- OSD Keypad
- Multi-language OSD
- Speaker
- 2 x 3W
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| IDP070PMSC20 | 750-IDP070-000G | 7" TFT WVGA Monitor with Projected Capacitive Touch, 500nits, VGA/DVI-D/HDMI, USB Type C 20VDC input |
| IDP070PMSW24 | 750-IDP070-100G | 7" TFT WVGA Monitor with Projected Capacitive Touch, 500nits, VGA/DVI-D/HDMI, 12 to 24VDC input |
| IDP070RMSC20 | 750-IDP070-200G | 7" TFT WVGA Monitor with Resistive Touch, 500nits, VGA/DVI-D/HDMI, USB Type C 20VDC input |
| IDP070RMSW24 | 750-IDP070-300G | 7" TFT WVGA Monitor with Resistive Touch, 500nits, VGA/DVI-D/HDMI, 12 to 24VDC input |
| DM-WIFI | 750-DMWIFI0-000G | External Wifi Display Module |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
