KS070-AL

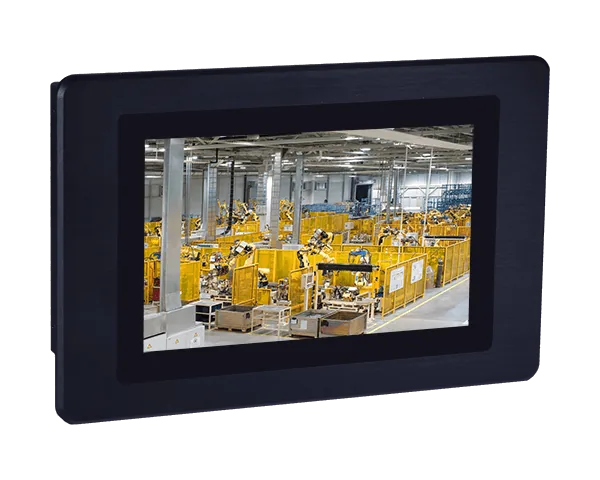

KS070-AL, Fanless Touch Panel PC with Intel Atom®/Celeron®, designed with IP65 front panel protection which is ideal for AMR/factory automation/transportation applications
- 7" 800x480 TFT LCD panel with touch screen
- Intel Atom® Processor E3900
- IP65 front panel protection
- Dual displays: VGA + DP++
- Rich I/O: 2 LAN, 2 COM, 2 USB 3.0, 2 USB 2.0
- 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#Mini PCIe
#Fanless Design
#IP65 Front Panel Protection
#Windows
#VGA
#DP
#DDR3L
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- 7" 800x480 TFT LCD panel with touch screen
- Intel Atom® Processor E3900
- IP65 front panel protection
- Dual displays: VGA + DP++
- Rich I/O: 2 LAN, 2 COM, 2 USB 3.0, 2 USB 2.0
- 15-Year CPU Life Cycle Support Until Q4' 31 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel Atom® Processor E3900 Series, BGA 1296 Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
- Memory
- One 204-pin SODIMM up to 8GB (4GB memory by default) Single Channel DDR3L 1866MHz
- BIOS
- Insyde SPI 128Mbit (supports UEFI boot only)
Display and Touch Screen
- Display
- 7” 800x480 TFT LCD Panel with Capacitive/Resistive Touch Screen
- Brightness
- 500 cd/m²
- Contrast
- 400:1
- Backlight Lifetime
- 50,000 hours
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 4.2, Direct X 11.1, OpenCL 1.2, OGL ES 3.0 HW Decode: H.264, MPEG2, VC1, VP8, H.265, MPEG4 HW Encode: H.264, MPEG2, MPEG4
- Display
- 1 x VGA 1 x DP++ VGA: resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2160 @ 60Hz
- Dual Displays
- VGA + DP++
Storage
- External/Internal
- 1 x CFast Socket
Expansion
- Interface
- 1 x Full-size Mini PCIe (USB/PCIe) 1 x M.2 2242 B-key (SATA 3.0/USB 2.0/PCIe Gen2 x2)
Audio
- Audio Codec
- Realtek ALC262
Ethernet
- Controller
- 2 x Intel® I211AT PCIe (10/100/1000Mbps)

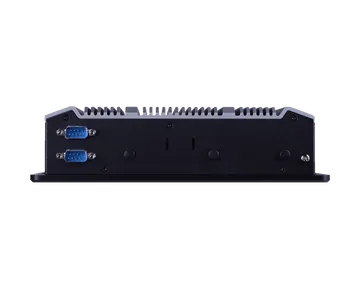

Top I/O
- Serial
- 2 x RS-232/422/485 (DB-9)
- Wi-Fi Antenna
- 3 x Wi-Fi Module Antenna Hole
- DIO
- 1 x 8-bit DIO (DB-9) (available upon request)
- Buttons
- 1 x Power Button

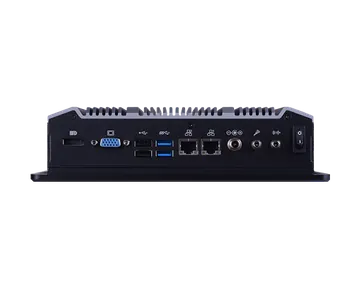

Bottom I/O
- Ethernet
- 2 x GbE (RJ-45) (10/100/1000Mbps)
- USB
- 2 x USB 3.0 (type A) 2 x USB 2.0 (type A)
- Display
- 1 x VGA 1 x DP++
- Audio
- 1 x Line-out 1 x Mic-in
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- 12V DC
- Connector
- DC Jack
OS Support
- OS Support (UEFI Only)
- Windows 10 IoT Enterprise 64-bit
Environment
- Operating Temperature
- -20 to 55°C
- Storage Temperature
- -30 to 80°C
- Relative Humidity
- 5 to 85% RH (non-condensing)
Mechanism
- Construction
- Sheet Metal
- IP Rating
- IP65 Front Panel Protection
- Mounting
- Panel/VESA Mount
- Dimensions (W x H x D)
- 230mm x 150mm x 58.3mm
- Weight
- 1.5kg
Standards and Certifications
- Shock
- OP: Half-sine, 3G @ 11ms Non-OP: Half-sine, 5G @ 11ms
- Vibration
- OP: Random, 1Grms @ 5~500Hz, 30min Non-OP: Sweep sine, 3Grms @ 10~500Hz, 30min
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- 1 KS070-AL Touch Panel PC 1 Poron foam 1 Chassis Panel Mount Bracket 1 Quick Installation Guide Note: Please choose "KS070-AL product page > Download button" to download the Driver and Manual.
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| KS070-ALE39P | 750-KS0701-000G | 7" Panel PC, Intel Atom® x5-E3940, 4GB Memory, Capacitive Touch |
| KS070-ALN33P | 750-KS0701-100G | 7" Panel PC, Intel® Celeron® Processor N3350, 4GB Memory, Capacitive Touch |
| KS070-ALN33R | 750-KS0701-200G | 7" Panel PC, Intel® Celeron® Processor N3350, 4GB Memory, Resistive Touch |
| Item Name | Part Number | Description |
|---|---|---|
| Wi-Fi | 761-AP1235-000G | Wi-Fi kit, RoHS |
| Power Cord | 785-PWRD | Power cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| Power Adapter | 671-106012-000G | 60W, 12V/5A, Level 6, RoHS |
| Panel Mount | 761-KS2020-000G | 7" Panel PC Panel Mount Kit, RoHS |
