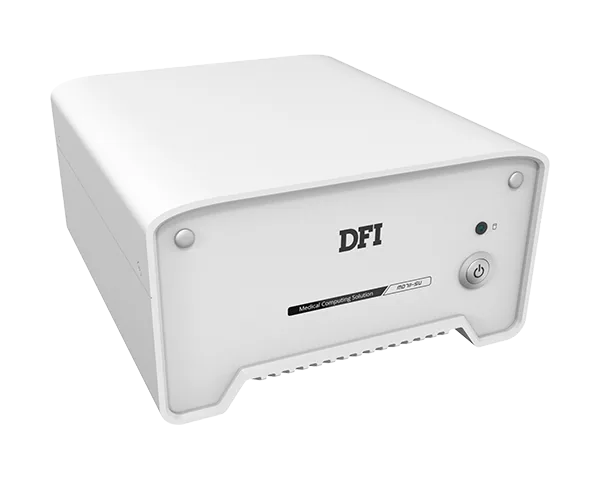

MD711-SU
DFI’s MD711-SU is a high-performance fanless embedded box PC designed to work with medical equipment and all the accompanying demands. It supports high-end 6th Generation Intel® Core™ i7 processor and is built with high quality industrial-grade components to ensure the entire unit is durable and reliable to run 24/7, 365. This medical PC is also equipped with 4kV isolated I/O ports (COM, USB, LAN), a PCIe expansion slot, and specialized heat dissipation technology with easy clean design and silent operation. The ideal medical applications cover nursing carts, operating rooms, healthcare information systems, and medical OEM equipment integration to ensure the best patient care.
- 6th Generation Intel® Core™ Medical Computing System
- 2 DDR4 SODIMM up to 32GB
- 2 x 2.5" SATA 3.0 drive bay
- Supports 1 PCIe 16 slot, 1 Full-Size Mini PCIe slot, 1 M.2 slot (2242 B key)
- 4KV Isolated I/O ports: 2 Intel GbE, 2 COM, 2 USB 2.0
- 15-Year CPU Life Cycle Support Until Q3' 30 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Intel
#Mini PCIe
#Fanless Design
#PCIe x16
#Windows
#Linux
#DVI-D
#DP
#DDR4
#EN-60601-1-2
#PART 18 CLASS B
#RoHS Certification
#CE Certification
#FCC Certification
#Medical
Főbb jellemzőkKey features
- 6th Generation Intel® Core™ Medical Computing System
- 2 DDR4 SODIMM up to 32GB
- 2 x 2.5" SATA 3.0 drive bay
- Supports 1 PCIe 16 slot, 1 Full-Size Mini PCIe slot, 1 M.2 slot (2242 B key)
- 4KV Isolated I/O ports: 2 Intel GbE, 2 COM, 2 USB 2.0
- 15-Year CPU Life Cycle Support Until Q3' 30 (Based on Intel IOTG Roadmap)
System
- Processor
- 6th Generation Intel® Core™ Processors, BGA 1356 Intel® Core™ i7-6600U Processor, Dual Core, 4M Cache, 2.6GHz, 15W Intel® Core™ i5-6300U Processor, Dual Core, 3M Cache, 2.4GHz, 15W
- Memory
- Two 260-pin SODIMM up to 32GB Dual Channel DDR4 2133MHz
- BIOS
- Insyde SPI 128Mbit
Graphics
- Controller
- Intel® HD Graphics GT Series
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x DP 1 x DVI-D DP: resolution up to 4096x2304 @ 60Hz DVI-D: resolution up to 1920x1200 @ 60Hz
- Dual Displays
- DVI-D + DP
Storage
- External/Internal
- 2 x 2.5" SATA 3.0 Drive Bay
Expansion
- Interface
- 1 x PCIe x16 (Gen 3) (x4 signal) 1 x Full-size Mini PCIe (PCIe/USB) 1 x M.2 (2242 B Key) (PCIe/USB/SATA)
Audio
- Audio Codec
- Realtek ALC888 5.1-channel
Ethernet
- Controller
- 1 x Intel® I210AT PCIe (10/100/1000Mbps) 1 x Intel® I219LM with iAMT11.0 PCIe (10/100/1000Mbps)
LED
- Indicators
- 1 x Power LED 1 x HDD LED

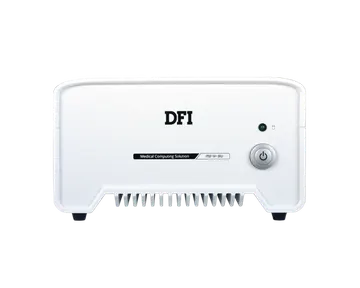

Front I/O
- Buttons
- 1 x Power Button

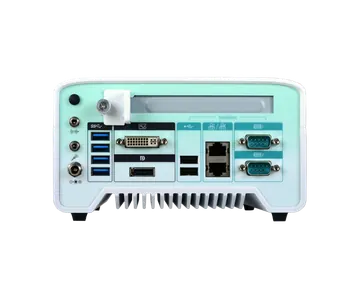

Rear I/O
- Ethernet
- 2 x GbE (RJ-45) (supports 4kV isolation)
- Serial
- 2 x RS-232 (DB-9) (supports 4kV isolation)
- USB
- 4 x USB 3.0 (type A) 2 x USB 2.0 (type A, full speed) (supports 4kV isolation)
- Display
- 1 x DP 1 x DVI-D
- Audio
- 1 x Line-out 1 x Mic-in
- Wi-Fi Antenna
- 1 x Wi-Fi Antenna Hole
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- Wide Range 9~36V
- Connector
- DC Jack
OS Support
- OS Support
- Windows 7 (32/64-bit) Windows 8.1 (64-bit) Windows 10 WES 7 WE8S Linux
Environment
- Operating Temperature
- 0 to 40°C (w/0.7m air flow)
- Storage Temperature
- -20 to 85°C
- Relative Humidity
- 5 to 90% RH (non-condensing)
Mechanism
- Construction
- Aluminum + Metal Aluminum
- Mounting
- Wall Mount
- Dimensions (W x H x D)
- 182 x 97.6 x 200 mm (7.17" x 3.84" x 7.87")
- Weight
- 2.3 kg
Standards and Certifications
- Shock
- Operating: 3G, 11ms Non-Operating: 5G, 11ms
- Vibration
- Operating: Random 5~500Hz, IEC68-2-64 (3G) (SSD/mSATA), IEC68-2-64 (0.5G) (HDD) Non-Operating: Sine 10~500Hz, IEC68-2-6 (3G) (SSD/mSATA), IEC68-2-6 (1G) (HDD)
- Certifications
- CE, FCC, RoHS IEC 60601-1-2:2014 EN 60601-1-2:2015 ISO 14971:2007
Packing List
- Packing List
- 1 MD711-SU system unit Mounting screws for SATA drive Mounting screws for Mini PCIe module 1 Quick Installation Guide 1 Power Adapter
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| MD711-SU2061 | 750-MD7110-000G | Fanless, Intel Core i5-6300U, 1 DP, 1 DVI-D, 2 LAN, 2 COM, 6 USB, 1 PCIe x16, RoHS |
| MD711-SU2061 | 750-MD7110-100G | Fanless, Intel Core i7-6600U, 1 DP, 1 DVI-D, 2 LAN, 2 COM, 6 USB, 1 PCIe x16, RoHS |
| MD711-SU2061 | 750-MD7110-200G | Fanless, Intel Core i5-6300U, 1 DP, 1 DVI-D, 2 LAN, 2 COM, 6 USB, 1 PCIe x16, RoHS |
| MD711-SU2061 | 750-MD7110-300G | Fanless, Intel Core i7-6600U, 1 DP, 1 DVI-D, 2 LAN, 2 COM, 6 USB, 1 PCIe x16, RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| Power Cord | 785-PWRD | Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| Wi-Fi | 785-WIFIKT | Wi-Fi Kit, RoHS |
| 32GB SSD | 785-S25032G | 2.5" SATA SSD, 32GB MLC, -40 to 85°C, RoHS |
| 64GB SSD | 785-S25064G | 2.5" SATA SSD, 64GB MLC, -40 to 85°C, RoHS |
| 128GB SSD | 785-S25128G | 2.5" SATA SSD, 128GB MLC, -40 to 85°C, RoHS |
| 256GB SSD | 785-S25256G | 2.5" SATA SSD, 256GB MLC, -40 to 85°C, RoHS |
| 512GB SSD | 785-S25512G | 2.5" SATA SSD, 512GB MLC, -40 to 85°C, RoHS |
| 1TB SSD | 785-S251TBG | 2.5" SATA SSD, 1TB MLC, -40 to 85°C, RoHS |
| 500GB HDD | 785-H25500G | 2.5” SATA HDD, 500GB, RoHS |
| 1TB HDD | 785-H251TBG | 2.5” SATA HDD, 1TB, RoHS |
| 4GB DDR4 | 785-RSOD44G | SODIMM, DDR4 Module, 4GB, RoHS |
| 8GB DDR4 | 785-RSOD48G | SODIMM, DDR4 Module, 8GB, RoHS |
| 16GB DDR4 | 785-RSOD416G | SODIMM, DDR4 Module, 16GB, RoHS |
| Wall Mount | 761-MD7110-000G | MD711-SU Wall Mount Kit, RoHS |
| Power Adapter | 671-106016-000G | 60W, 24V/2.5A, Level 6, RoHS |
