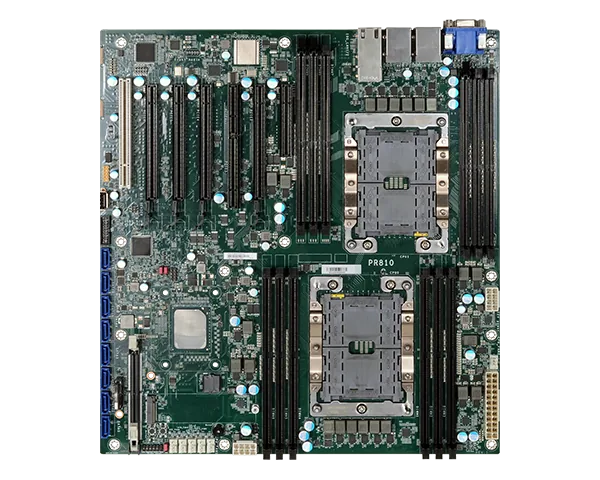

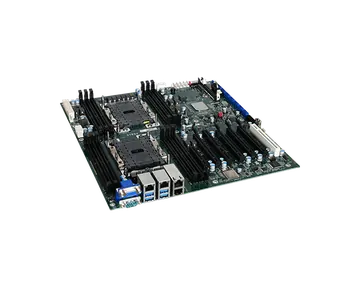

PR810-C622
EATX, Intel® 1st/2nd Xeon® Scalable Family, 12 DDR4, 4 PCIe x16, 1 PCIe x8, PCI, 1 M.2, DVI-I, 2 Intel 10GbE, 2 Intel GbE, 2 COM, 8 SATA 3, 3 USB 2.0, 6 USB 3.1 Gen1, 1 VGA, C622 Chipset
- Intel® 1st/2nd Xeon® Scalable Family
- 12 DDR4 ECC-RDIMM up to 768GB
- VGA resolution up to 1920x1200 @ 60Hz
- Multiple expansion: 4 PCIe x16, 1 PCIe x8, 1 PCI, 1 M.2
- Rich I/O: 2 Intel 10GbE, 2 Intel GbE, 2 COM, 8 SATA 3, 3 USB 2.0, 6 USB 3.1 Gen1
- 15-Year CPU Life Cycle Support Until Q3' 32 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Server Boards
#IoT
#Intel
#PCIe x16
#Windows
#Linux
#VGA
#Multiple Expansion
#10G Ethernet
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#Legacy ISA/PCI Expansion Port
#UKCA Certification
Főbb jellemzőkKey features
- Intel® 1st/2nd Xeon® Scalable Family
- 12 DDR4 ECC-RDIMM up to 768GB
- VGA resolution up to 1920x1200 @ 60Hz
- Multiple expansion: 4 PCIe x16, 1 PCIe x8, 1 PCI, 1 M.2
- Rich I/O: 2 Intel 10GbE, 2 Intel GbE, 2 COM, 8 SATA 3, 3 USB 2.0, 6 USB 3.1 Gen1
- 15-Year CPU Life Cycle Support Until Q3' 32 (Based on Intel IOTG Roadmap)
System
- Processor
- 1st Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket, TDP upto 165W: Intel® Xeon® Platinum 8160T (24 Cores, 27.5M Cache, up to 3.7 GHz); 150W Intel® Xeon® Gold 6138T (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6138 (20 Cores, 27.5M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6130T (16 Cores, 22M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6130 (16 Cores, 22M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6126T (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6126 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 5120T (14 Cores, 19.25M Cache, up to 3.2 GHz); 105W Intel® Xeon® Gold 5119T (14 Cores, 19.25M Cache, up to 3.2 GHz); 85W Intel® Xeon® Gold 5118 (12 Cores, 16.5M Cache, up to 3.2 GHz); 105W Intel® Xeon® Silver 4116T (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4116 (12 Cores, 16.5M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4114T (10 Cores, 13.75M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4110 (8 Cores, 11M Cache, up to 3.0 GHz); 85W Intel® Xeon® Silver 4109T (8 Cores, 11M Cache, up to 3.0 GHz); 70W Intel® Xeon® Bronze 3106 (8 Cores, 11M Cache, 1.7 GHz); 85W 2nd Generation Intel® Xeon® Scalable Processor Family, LGA 3647 Socket, TDP upto 165W: Intel® Xeon® Gold 6252N (24 Cores, 35.75M Cache, up to 3.6 GHz); 150W Intel® Xeon® Gold 6238T (22 Cores, 30.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 6230T (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W Intel® Xeon® Gold 6230N (20 Cores, 27.5M Cache, up to 3.5 GHz); 125W Intel® Xeon® Gold 6230 (20 Cores, 27.5M Cache, up to 3.9 GHz); 125W Intel® Xeon® Gold 6226 (12 Cores, 19.25M Cache, up to 3.7 GHz); 125W Intel® Xeon® Gold 5220T (18 Cores, 24.75M Cache, up to 3.9 GHz); 105W Intel® Xeon® Gold 5218T (16 Cores, 22M Cache, up to 3.8 GHz); 105W Intel® Xeon® Gold 5218N (16 Cores, 22M Cache, up to 3.7 GHz); 110W Intel® Xeon® Gold 5215 (10 Cores, 13.75M Cache, up to 3.4 GHz); 85W Intel® Xeon® Silver 4216 (16 Cores, 22M Cache, up to 3.2 GHz); 100W Intel® Xeon® Silver 4215 (8 Cores, 11M Cache, up to 3.5 GHz); 85W Intel® Xeon® Silver 4214 (12 Cores, 16.5M Cache, up to 3.2 GHz); 85W Intel® Xeon® Silver 4210 (10 Cores, 13.75M Cache, up to 3.2 GHz); 85W Intel® Xeon® Silver 4209 (8 Cores, 11M Cache, up to 3.2 GHz); 70W
- Chipset
- Intel® C622 Chipset
- Memory
- 12 x 288-pin ECC-RDIMM up to 768GB Single Channel DDR4 up to 2133/2400/2666/2933 MHZ (Support Intel DC Persistent Memory)
- BIOS
- Insyde
Graphics
- Display
- 1 x VGA (opt.)
- Single Display
- VGA (opt.)
Expansion
- Interface
- 4 x PCIe x16 (Gen 3) 1 x PCIe x8 (Gen 3) 1 x PCI 1 x M.2 M key2280 (PCIe Gen3 x4 NVMe/SATA) 1 x BMC Module slot for SEM2500/2510 (IPMI) 1 x 100GbE slot (x4 + x8) for EXT-100GbE proprietary module *Note: PCIe x8 slot is OPEN edge.
Audio
- Audio Codec
- ALC887
Ethernet
- Controller
- 2 x Intel® I210AT (10/100/1000Mbps) 1 x Intel® x557-AT2 (10GbE)

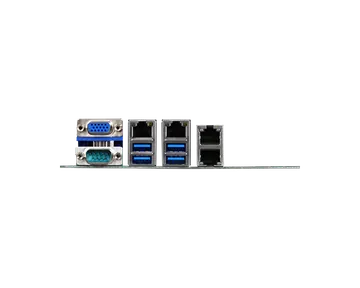

Rear I/O
- Ethernet
- 2 x GbE (RJ-45) 2 x 10 GbE x557-AT2 IPMI 2.0: 1 share w/ i210AT (opt.)
- Serial
- 1 x RS-232 (DB-9)
- USB
- 4 x USB 3.1 Gen1
- Display
- 1 x VGA (opt.)
Internal I/O
- Serial
- 1 x RS-232
- USB
- 1 x USB 2.0 header (2x USB 2.0) 1 x USB 2.0 vertical Type A 1 x USB 3.1 Gen1 header (2x USB 3.1 Gen1)
- SATA
- 8 x SATA 3 (up to 6Gb/s) RAID 0/1/5/10
- SMBus
- 1 x SMBus
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 sec/Min
Security
- TPM
- TPM 2.0 (opt.)
Power
- Type
- ATX
- Connector
- 8-pin ATX 12V power 24-pin ATX power
- Consumption
- Idle: 8276M 3.3V @ 0.03A (0.09W), 5V @ 3.86A (19.3W), 12V @ 3.42A (41.04W) Max: 8276M 3.3V @ 0.04A (0.13W), 5V @ 4.84A (24.2W), 12V @ 25.28A (303.36W)
- RTC Battery
- CR2032 Coin Cell
OS Support
- OS Support
- Windows 10 IoT Enterprise LTSC RS5(64-bit) Windows Server 2019 Windows Server 2016 Linux
Environment
- Temperature
- Operating: 0 to 40°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 450,938 hrs @ 25°C; 305,034 hrs @ 40 °C Calculation model: Telcordia Issue 4 Environment: GB, GC - Ground Benign, Controlled
Mechanism
- Dimensions
- EATX Form Factor 305mm (12") x 330mm (13")
- Height
- PCB: 1.8mm Top Side: 32 mm, Bottom Side: 4.0mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- 1 PR810-C622 motherboard 1 I/O shield 1 M.2 screw for 2280 A32-112016-041G 1 CPU clip 348-436471-100G 1 SEM 2500/2510 (by orderd P/N)
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| PR810-C622IR | 770-PR8101-000G | 2 10GbE, 2 GbE, 1 RS-232, 6 USB 3.2 Gen1, 5 USB 2.0, 0 to 40°C |
| PR810-C622IRV | 770-PR8101-100G | 2 10GbE, 2 GbE, 1 RS-232, 6 USB 3.2 Gen1, 5 USB 2.0, 1 VGA, 1 BMC Module: SEM2510-VGA, 0 to 40°C |
| PR810-C622IRI | 770-PR8101-200G | 2 10GbE, 2 GbE, 1 RS-232, 6 USB 3.2 Gen1, 5 USB 2.0, 1 VGA, 1 BMC Module: SEM2510-VGA/IPMI, 0 to 40°C |
| PR810-C622IR | 770-PR8101-300G | 2 10GbE, 2 GbE, 1 RS-232, 6 USB 3.2 Gen1, 5 USB 2.0, 1 TPM 2.0, 0 to 40°C |
| PR810-C622IRV | 770-PR8101-400G | 2 10GbE, 2 GbE, 1 RS-232, 6 USB 3.2 Gen1, 5 USB 2.0, 1 VGA, 1 TPM 2.0, 1 BMC Module: SEM2510-VGA, 0 to 40°C |
| PR810-C622IRI | 770-PR8101-500G | 2 10GbE, 2 GbE, 1 RS-232, 6 USB 3.2 Gen1, 5 USB 2.0, 1 VGA, 1 TPM 2.0, 1 BMC Module: SEM2510-VGA/IPMI, 0 to 40°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB 2.0 port cable | A81-001066-016G | Length: 350mm |
| SATA cable | 332-553001-005G | Length: 500mm |
| USB 3.1 Gen1 cable | A81-001052-023G | Length: 320mm |
| Cooler | A71-101400-000G | Narrow ILM LGA 3647 |
| EXT-100GbE | 770-EXT100-000G |
