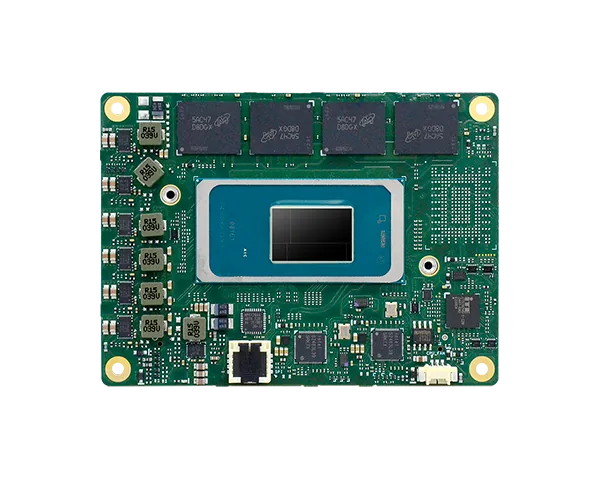

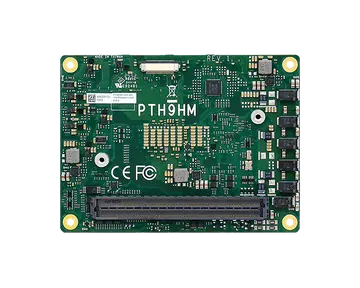

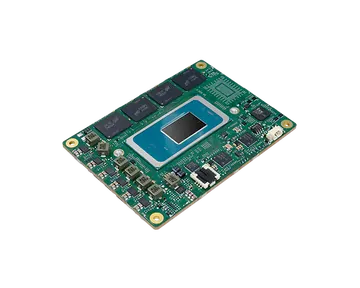

PTH9HM
PICMG COM HPC® R1.3, Mini, Intel® Core™ Ultra Series 3 Processors , LPDDR5, 2 DDI, 1 eDP, 8 PCIe x1 (Gen4), 1 PCIe x4 (Gen5) or 2 PCIe x4, 2 Intel 2.5GbE, 4 USB 3.2, Supports 8K/4K resolution
- Intel® Core™ Ultra Series 3 processors
- Dual Channel LPDDR5x- 8533 memory down UP to 64GB
- Multiple Displays: 2 DDI, 1 eDP
- Multiple Expansion: Up to 8 PCIe x1 (Gen4), 1 PCIe x4 (Gen5) or 2 PCIe x4 (selected sku)
- Rich I/O: 2 Intel 2.5GbE, 4 USB 3.2
Főbb jellemzők
Tanúsítványok
#8K resolution
#eDP
#USB 4.0
#LPDDR5x
#Intel Panther Lake H processor
#Intel® Core™ Ultra processors
#IoT
#Windows 11
#Intel
#Windows
#Linux
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
Főbb jellemzőkKey features
- Intel® Core™ Ultra Series 3 processors
- Dual Channel LPDDR5x- 8533 memory down UP to 64GB
- Multiple Displays: 2 DDI, 1 eDP
- Multiple Expansion: Up to 8 PCIe x1 (Gen4), 1 PCIe x4 (Gen5) or 2 PCIe x4 (selected sku)
- Rich I/O: 2 Intel 2.5GbE, 4 USB 3.2
System
- Processor
- Intel® Core™ Ultra Series 3 Processor Intel® Core™ Ultra 7 358H, 16C, 4.8 GHz, 18M Cache, 25W Intel® Core™ Ultra 7 366HRE, 16C, 4.8 GHz, 18M Cache, 25W Intel® Core™ Ultra 7 356H, 16C, 4.7 GHz, 18M Cache, 25W Intel® Core™ Ultra 5 336HRE, 12C, 4.6 GHz, 18M Cache, 25W Intel® Core™ Ultra 5 325, 8C, 4.5 GHz, 12M Cache, 25W
- Memory
- Up to 64GB LPDDR5x memory down w/max. 8533 MT/s on selected skus (IBECC support)
- BIOS
- AMI BIOS
Graphics
- Controller
- Intel® ARC™ graphics or Intel® graphics
- Feature
- DX12, Open GL 4.6, Vulkan 1.2 HW Decode: HEVC/VP9/AV1/AVC/H.265/MJPEG HW Encode: HEVC/VP9/AV1/AVC/H.265/MJPEG
- Display
- 2 x DDI 1 x eDP
Expansion
- Interface
- Up to 8 x PCIe x1 (Gen4) + 1 x PCIe x4 (Gen 5) or 2 x PCIe x4 (Gen 5) on selected sku 2 x I2C 1 x SMBus 1 x SPI 2 x UART
Audio
- Audio Codec
- HD Audio
Ethernet
- Controller
- 2 x Intel® I226 series (10/100/1000/2500Mbps), co-lay 2 x PCIe x1 (available upon request)
I/O
- USB
- Up to 3 x USB 4.0 (co-lay with DDI and USB3, available upon request) 4 x USB 3.2 Gen.2 (co-lay with USB4) 8 x USB 2.0
- DIO
- 1 x 12-bit DIO
- NVMe SSD
- 1 x 128GB/256GB/512GB/1024GB on board SSD (available upon request)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM 2.0
Power
- Type
- 8.5~20V DC
- Consumption
- TBD
OS Support
- Microsoft
- Windows 11 IoT Enterprise 64-bit
- Linux
- Linux
Environment
- Temperature
- Operating: -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 10 to 90% RH Storage: 10 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- COM HPC® Mini 95mm (3.74") x 70mm (2.76")
- Compliance
- PICMG COM HPC® R1.3, Mini
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- • Cooler TBD • CPU block, A71-210414-000G • Thermal Grease, 912-077621-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| PTH9HM-TC30-358H | 770-PTH9HM1-100G | Ultra 7 358H, 32GB Memory, DDI, LAN, USB3, Cooler, -40~85°C |
| PTH9HM-TC60-366HRE | 770-PTH9HM1-200G | Ultra 7 366HRE, 64G Memory, DDI, LAN, USB3, Cooler, -40~85°C |
| PTH9HM-TC60-356H | 770-PTH9HM1-300G | Ultra 7 356H, 64GB Memory, DDI, LAN, USB3, Cooler, -40~85°C |
| PTH9HM-TC30-336HRE | 770-PTH9HM1-400G | Ultra 5 336HRE, 32GB Memory, DDI, LAN, USB3, Cooler, -40~85°C |
| PTH9HM-TC10-325 | 770-PTH9HM1-500G | Ultra 5 325, 16GB Memory, DDI, LAN, USB3, Cooler, -40~85°C |
| Item Name | Part Number | Description |
|---|---|---|
| COM337 Carrier Board | 770-COM3371-000G |
