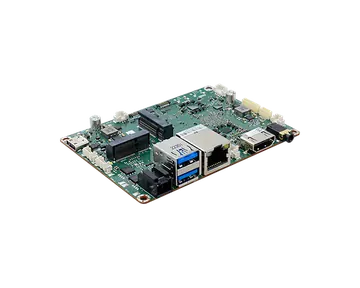

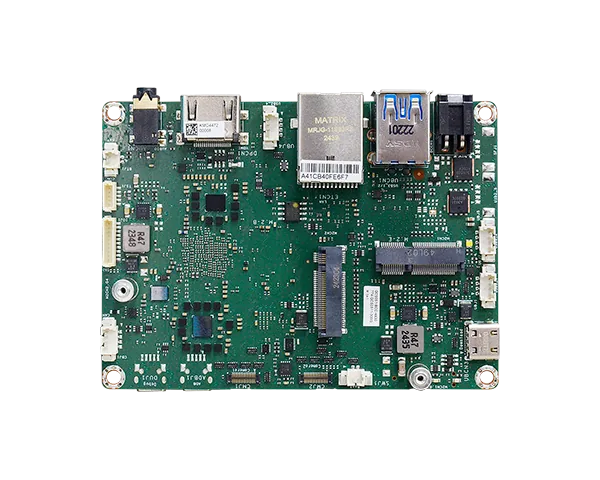

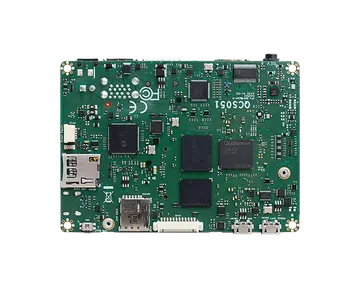

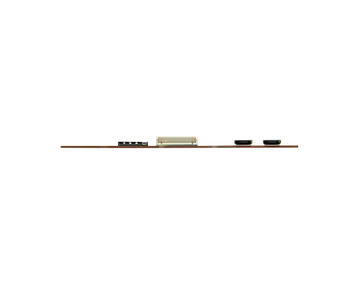

QCS051
2.5" Pico-ITX, Qualcomm® QCS6490 / QCS5430, LPDDR5x, 1 HDMI, 1 M.2 E key, 2 M.2 B key, 1 Nano SIM, 1 LAN, 1 COM, 2 USB 3.1 Gen1, 3 USB 2.0, 1 USB Type C, 1 Micro USB debug UART, 0°C~60°C, -25°C~75°C
- Qualcomm QCS6490 high-level platform
- Target on AMR, box PC application
- Thin client concept and ruggedize
- 2 M.2 Expansions: 1 M.2 E key 2230, 1 M.2 B key 3052
Főbb jellemzők
Tanúsítványok
#Edge AI Computing
#M.2
#LPDDR5x
#Qualcomm® QCS6490
#AI
#Qualcomm®
#SIM Slot
#CAN-Bus
#Fanless Design
#Compact Size
#Linux
#HDMI
#RoHS Certification
#CE Certification
#FCC Certification
#AMR
#UKCA Certification
Főbb jellemzőkKey features
- Qualcomm QCS6490 high-level platform
- Target on AMR, box PC application
- Thin client concept and ruggedize
- 2 M.2 Expansions: 1 M.2 E key 2230, 1 M.2 B key 3052
System
- Processor
- QCS6490 Qualcomm® Kryo™ 670, 8 cores, up to 2.7 GHz, 12 TOPS (INT8) QCS5430 (FP1) Qualcomm® Kryo™ 670, 6 cores, up to 2.1 GHz, 3.5 TOPS (INT8)
- Memory
- LPDDR5x, 4/8GB
Graphics
- Controller
- Qualcomm® Adreno™ 643L GPU
- Feature
- OpenGL ES 3.2
- Display
- 1 x HDMI Type A, w/o audio. 1080P support on Linux.
- Single Display
- HDMI
Storage
- UFS
- Support UFS 3.1, default 128GB
Expansion
- Interface
- 1 x M.2 B key 3052 (USB 3.1/ Opt. USB 2.0) reference RM502Q-AE Quectel *Optional USB 2.0 signal with UBJ4 1 x Nano SIM slot 1 x M.2 E key 2230 (PCIe x1) reference ENL-Q6856M2 Wifi module
Audio
- Audio Codec
- Audio codec WCD9385
Ethernet
- Controller
- AX88179A USB3 to GbE controller

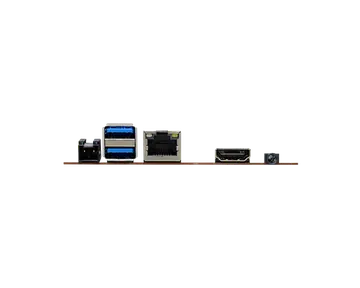

Rear I/O
- Ethernet
- 1 x GbE (RJ-45)
- USB
- 2 x USB 3.1 Gen1 Type A
- Display
- 1 x HDMI 1.4
- Audio
- 1 x Line out/Mic in audio jack
- Debug
- 1 x Micro USB debug UART
Internal I/O
- Serial
- 1 x RS-232 (COM1, 1x5P/1.00mm)
- USB
- 3 x USB 2.0 (UBJ1/2/4, 1x4P/1.25mm), UBJ4 could option to M.2 B key 1 x USB Type C (Download only)
- DIO
- 1 x 8-bit DIO
- SD
- 1 x uSD3.0 card
- CANBus
- 1 x CAN FD
- Other I/O
- 1 x Ext. IO (1*12P/1.25mm), 1 x Power LED, 1 x System LED, 1 x Front Panel 1 x Fan connector (upon request)
- Camera
- 2 x MIPI-CSI2 for 4-lanes camera, reference to IMX577
Power
- Type
- 5VDC
- Connector
- 2 pin Power Jack
- Consumption
- Typical: QCS6490: 5V @ 0.6A (3.0Watt) Max.: QCS6490: 5V @ 1.45A (7.25Watt)
- RTC Battery
- CR2032 Coin Cell
OS Support
- Linux
- Default: Yocto (Linux Kernel 6.6.x) Upon request: Ubuntu 20.04 (Linux Kernel 5.4.x)
Environment
- Temperature
- Operating: 0°C~60°C, -25°C~75°C Storage: -40°C~85°C
- Humidity
- Operating: 5%~90% RH Storage: 5%~90% RH
Mechanism
- Dimensions
- 2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83")
- Height
- PCB: 1 mm Top Side: 16.44 mm Bottom Side: 3.45 mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- • 1 QCS051 board • Heat spreader (Height: 7mm) A71-808357-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
- EC900-QCS、QCS051 UKCA Declaration of Conformity (PDF)
- EC900-QCS、QCS051 FCC Declaration of Conformity (PDF)
- EC900-QCS、QCS051 CE Declaration of Conformity (PDF)
- EC900-QCS、QCS051 FCC Compliance Verification (PDF)
- EC900-QCS、QCS051 CE Compliance Verification (PDF)
- EC900-QCS、QCS051 Declaration of RoHS Compliance (PDF)
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| QCS051-BCC-4890 | 770-QCS0511-000G | Qualcomm® QCS6490, LPDDR5x 4GB, 128GB UFS 3.1, HDMI, 1 GbE, 2 USB 3.1 Gen1, 3 USB 2.0, 1 RS-232, 5VDC Power, Fanless, 0 to 60°C |
| QCS051-ECC-8890 | 770-QCS0511-100G | Qualcomm® QCS6490, LPDDR5x 8GB, 128GB UFS 3.1, HDMI, 1 GbE, 2 USB 3.1 Gen1, 3 USB 2.0, 1 RS-232, 5VDC Power, Fanless, -25 to 75°C |
| QCS051-BCC-4830 | 770-QCS0511-300G | Qualcomm® QCS5430, LPDDR5x 4GB, 128GB UFS 3.1, HDMI, 1 GbE, 2 USB 3.1 Gen1, 3 USB 2.0, 1 RS-232, 5VDC Power, Fanless, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| Heat sink for 0 to 60°C/-25 to 75°C | A71-008191-010G | Height: 17.1mm |
| USB 2.0 port cable | A81-001188-018G | Length: 100mm |
| COM port cable | A81-015121-018G | Length: 200mm |
| CAN Bus cable | A81-015122-018G | Length: 150mm |
| 2 pole to DC Jack power cable | A81-004381-018G | Length: 150mm |
| Front panel cable | A81-006104-018G | Length: 150mm |
| Power adapter | 671-103002-000G | 30W, 5V, DC Jack |
