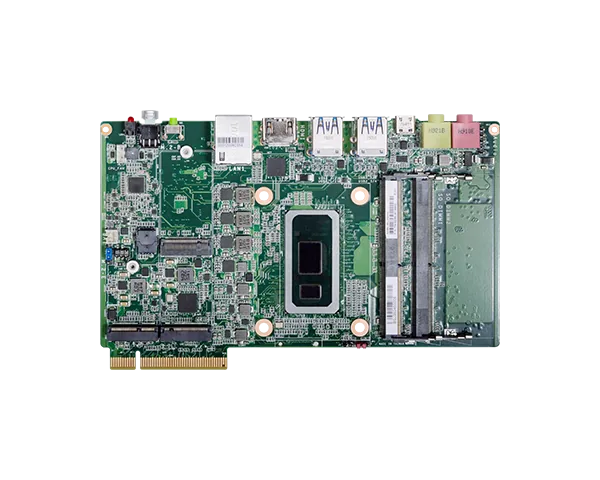

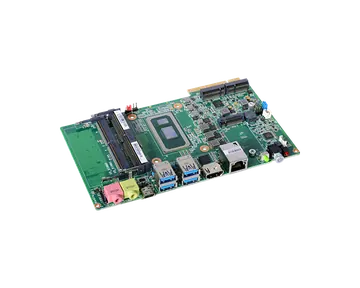

SDML-WL
SDM, 8th Gen Intel® Core™, 2 DDR4, 3 M.2, 2 HDMI, 1 DP++, 1 Intel GbE, 4 USB3.1, 1 USB3.1 Type C
- 2 DDR4 2400MHz SODIMM up to 32G
- Multiple expansion: 1 M.2 E Key, 1 M.2 M Key, 1 M.2 B Key
- 1 HDMI resolution up to 4096 x 2160 @ 60Hz Display port resolution up to 4096 x 2304 @ 60Hz
- Rich I/O: 1 Intel GbE, 4 USB3.1, 1 USB3.1 Type C
- 15-Year CPU Life Cycle Support Until Q3' 34 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#8th Gen Intel® Core™ Processor
#IoT
#Intel
#4K2K Display
#Windows
#HDMI
#Multiple Expansion
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#ULT
#UKCA Certification
Főbb jellemzőkKey features
- 2 DDR4 2400MHz SODIMM up to 32G
- Multiple expansion: 1 M.2 E Key, 1 M.2 M Key, 1 M.2 B Key
- 1 HDMI resolution up to 4096 x 2160 @ 60Hz Display port resolution up to 4096 x 2304 @ 60Hz
- Rich I/O: 1 Intel GbE, 4 USB3.1, 1 USB3.1 Type C
- 15-Year CPU Life Cycle Support Until Q3' 34 (Based on Intel IOTG Roadmap)
System
- Processor
- 8th Gen Intel® Core™ Processor, FCBGA1528 Intel® Core™ i7-8665UE Processor, Quad Core, 8M Cache, 1.7GHz (4.4GHz), 15W Intel® Core™ i5-8365UE Processor, Quad Core, 6M Cache, 1.6GHz (4.1GHz), 15W Intel® Core™ i3-8145UE Processor, Dual Core, 4M Cache, 2.2GHz (3.9GHz), 15W Intel® Celeron® Processor 4305UE, Dual Core, 2M Cache, 2.0GHz, 15W
- Memory
- 2 SODIMM up to 32 GB Dual Channel DDR4 2400MHz
- BIOS
- AMI Winbond SPI 128Mbit
Graphics
- Controller
- Intel® UHD Graphics 620
- Dual Displays
- 1 x Display port via PCIe x8 gold finger 1 x HDMI 2.0 to PCIe x8 gold finger 1 x HDMI 1.4 to rear I/O Display port: resolution up to 4096x2304 @ 60Hz HDMI: resolution up to 4096x2160 @ 60Hz
Expansion
- Interface
- 1 x 2230 E Key (PCIe x1 interface) 1 x 2242 B Key (PCIe x1 interface) 1 x 2280 M Key
Audio
- Audio Codec
- Realtek ALC262-VC2-GR
Ethernet
- Controller
- 1 x Intel® I219LM(V) (10/100/1000Mbps) (Core™ i5 and i7 support vPro function)

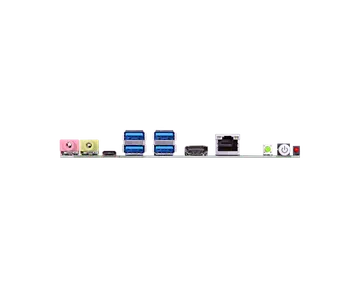

Rear I/O
- Ethernet
- 1 x GbE (RJ-45)
- USB
- 4 x USB 3.1 1 x USB 3.1 Type C
- Display
- 1 x HDMI 1.4
- Audio
- 1 x Line-out 1 x Mic-in
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- Single 12V DC
- Connector
- DC Jack
- RTC Battery
- CR2032 Coin Cell with cable
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit Yocto kernel 4.19
Environment
- Temperature
- Operating: 0 to 60°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- 175mm (6.9") x 100mm (3.9")
- Height
- PCB: 1.6mm Top Side: Max 20mm
Standards and Certifications
- Certifications
- CE / FCC / RoHS / UKCA
SDM Golden Finger
- Serial
- 1 x UART
- USB
- 1 x USB 3.1 1 x USB 2.0
- Display
- 1 x Display port 1 x HDMI 2.0
- SMBus
- 2 x I2C
Country of Origin
- Country of Origin
- Taiwan
