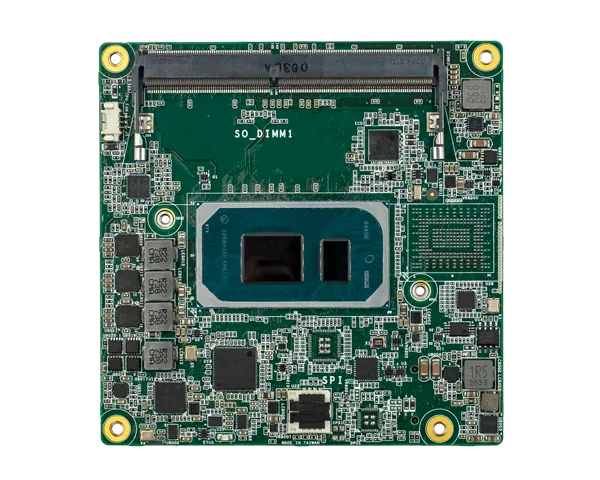

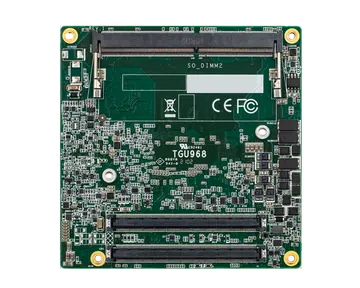

TGU968
COM Express Type 6, 11th Gen Intel® CPU, DDR4, 8 PCIe x1, 2 SATA 3.0, 8 USB 2.0, 4 USB 3.1, 1 VGA, 1 LVDS, 1 DDI
- 11th Generation Intel® Processor COM Express® Compact
- DDR4 3200MHz SODIMM up to 64GB
- VGA/DDI + LVDS/eDP + DDI
- DP++ supports 4K x 2K resolution
- Multiple expansion: 8 PCIe x1, 1 I2C, 1 SMBus
- Rich I/O: 1 Intel 2.5GbE, 4 USB 3.2, 8 USB 2.0
- 15-Year CPU Life Cycle Support Until Q3' 35 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Edge AI Computing
#Slim Bootloader
#IoT
#Intel
#4K2K Display
#Windows
#Linux
#HDMI
#VGA
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#11th Gen Intel® Tiger Lake Processor
#UKCA Certification
Főbb jellemzőkKey features
- 11th Generation Intel® Processor COM Express® Compact
- DDR4 3200MHz SODIMM up to 64GB
- VGA/DDI + LVDS/eDP + DDI
- DP++ supports 4K x 2K resolution
- Multiple expansion: 8 PCIe x1, 1 I2C, 1 SMBus
- Rich I/O: 1 Intel 2.5GbE, 4 USB 3.2, 8 USB 2.0
- 15-Year CPU Life Cycle Support Until Q3' 35 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel® Core™ i7-1185G7E Processor (Core 4; Max speed 2.8 GHz; TDP 15-28W) Intel® Core™ i7-1185GRE Processor (Core 4; Max speed 2.8 GHz; TDP 15-28W) Intel® Core™ i5-1145G7E Processor (Core 4; Max speed 2.6 GHz; TDP 15-28W) Intel® Core™i5-1145GRE Processor (Core 4; Max speed 2.6 GHz; TDP 15-28W) Intel® Core™ i3-1115G4E Processor (Core 2; Max speed 3.0 GHz; TDP 15-28W) Intel® Core™ i3-1115GRE Processor (Core 2; Max speed 3.0 GHz; TDP 15-28W) Intel® Celeron® 6305E Processor (Core 2; Max speed 1.8 GHz; TDP 15W)
- Memory
- Two 260-pin SODIMM up to 64GB Dual Channel DDR4 3200MHz
- BIOS
- AMI BIOS
Graphics
- Controller
- Intel® UHD Graphics for 11th Gen Intel® Processors
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: WMV9, AVC/H264, JPEG/MJPEG, HEVC/H265, VP9, AV1 HW Encode: AVC/H264, JPEG, HEVC/H265, VP9
- Display
- 1 x VGA/DDI (DDI available upon request) 1 x LVDS/eDP (eDP available upon request) 3 x DDI VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz eDP: resolution up to 4096x2304 @ 60Hz HDMI: resolution up to 4096x2160 @ 30Hz DP++: resolution up to 4096x2304 @ 60Hz VGA + LVDS + DDI DDI + eDP + DDI (available upon request)
Expansion
- Interface
- 1 x PCIe x4 (Gen 4) 5 x PCIex1 (Gen3) (8 x PCIex1 available upon request) 1 x I2C 1 x SMBus 1 x SPI 2 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® i226 series (10/100/1000Mbps/2.5G)
I/O
- USB
- 4 x USB 3.1 Gen.2 8 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s)
- SSD
- 1 x 64GB/128GB/256GB/512GB/1024GB on board SSD (available upon request)
- DIO
- 1 x 8-bit DIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Available Upon Request
Power
- Type
- 8.5~20V, 5VSB, VCC_RTC (ATX mode) 8.5~20V, VCC_RTC (AT mode)
- Consumption
- TBD
OS Support
- OS Support
- (UEFI Only) Windows: Windows 10 IoT Enterprise 64-bit Linux
Environment
- Temperature
- Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 10 to 90% RH Storage: 10 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- COM Express® Compact 95mm (3.74") x 95mm (3.74")
- Compliance
- PICMG COM Express® R3.0, Type 6
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- TBD
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| TGU968-TS6-1185GRE | 770-TGU9681-000G | I7-1185GRE, 2 SODIMM, LVDS, LAN, SATA, 4 USB3.2 Gen2, 8 USB2.0, NVMe 64GB, ATX/AT, Cooler, -40 to 85°C |
| TGU968-BS0-1145G7E | 770-TGU9681-100G | I5-1145G7E, 2 SODIMM, LVDS, LAN, SATA, 4 USB3.2 Gen2, 8 USB2.0, ATX/AT, Heatsink, 0 to 60°C |
| TGU968-TS0-1115GRE | 770-TGU9681-200G | I3-1115GRE, 2 SODIMM, LVDS, LAN, SATA, 4 USB3.2 Gen2, 8 USB2.0, ATX/AT, Cooler, -40 to 85°C |
| TGU968-BS0-6305E | 770-TGU9681-300G | Celeron 6305E, 2 SODIMM, eDP, LAN, SATA, 4 USB3.2 Gen2, 8 USB2.0, ATX/AT, Heatsink, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| Heat Spreader | A71-808335-000G | |
| COM335 Carrier Board Kit | 770-CM3351-000G |
