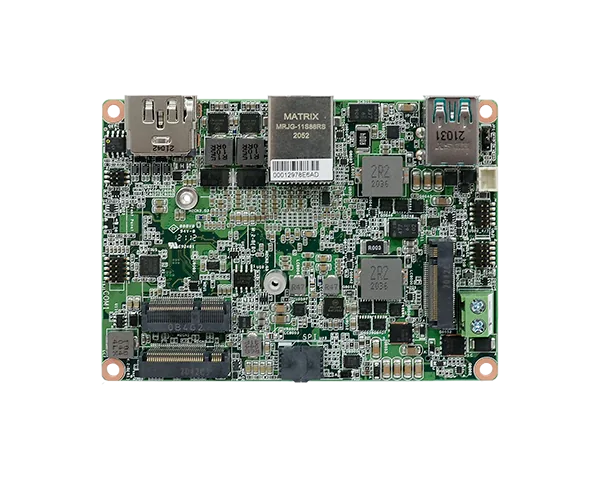

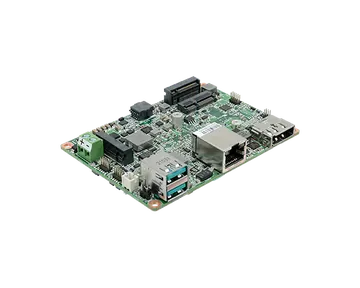

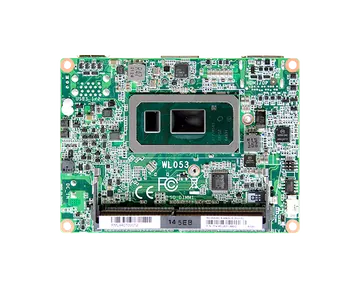

WL053
2.5" Pico-ITX, 8th Gen Intel® Core™, 1 DDR4, 1 M.2 E key, 2 M.2 B key, 1 DP++
- 8th Gen Intel® Core™ Processor 2.5" Pico-ITX
- Small form factor 2.5" Pico-ITX for space-limited applications
- 1 DDR4 SODIMM up to 32GB
- Independent display: DP++
- Expansion and Storage: 1 M.2 E key, 2 M.2 B key
- Rich I/O: 1 Intel GbE, 1 COM, 2 USB 3.1 Gen 2, 2 USB 2.0
Főbb jellemzők
Tanúsítványok
#8th Gen Intel® Core™ Processor
#Intel
#4K2K Display
#Windows
#Linux
#DP
#Multiple Expansion
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- 8th Gen Intel® Core™ Processor 2.5" Pico-ITX
- Small form factor 2.5" Pico-ITX for space-limited applications
- 1 DDR4 SODIMM up to 32GB
- Independent display: DP++
- Expansion and Storage: 1 M.2 E key, 2 M.2 B key
- Rich I/O: 1 Intel GbE, 1 COM, 2 USB 3.1 Gen 2, 2 USB 2.0
System
- Processor
- 8th Generation Intel® Core™ Processors, BGA 1528 Intel® Core™ i7-8665UE, Quad Core, 8M Cache, 1.7GHz (4.4GHz), 15W Intel® Core™ i5-8365UE, Quad Core, 6M Cache, 1.6GHz (4.1GHz), 15W Intel® Core™ i3-8145UE, Dual Core, 4M Cache, 2.2GHz (3.9GHz), 15W Intel® Core™ Celeron® 4305UE, Dual Core, 2M Cache, 2.0GHz (2.0GHz), 15W
- Memory
- One 260-pin SODIMM up to 32GB Single Channel DDR4 up to 2400MHz
- BIOS
- AMI SPI 128Mbit
Graphics
- Controller
- Intel® UHD Graphics 620/ Intel® UHD Graphics 610 (for Celeron 4305UE)
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x DP++ DP++: resolution up to 4096x2304 @ 60Hz
Expansion
- Interface
- 1 x M.2 E key 2230 (PCIe x2/USB 2.0) 2 x M.2 B key 3042/2242 (PCIe x1 or SATA 3.0/USB 3.1 Gen1/USB 2.0)
Ethernet
- Controller
- 1 x Intel® I219V/I219LM (only Core i7/i5 supports iAMT)

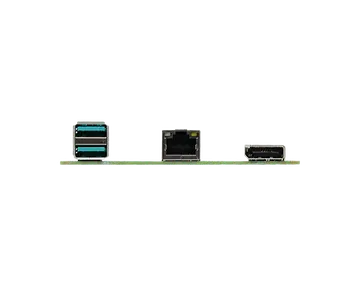

Rear I/O
- Ethernet
- 1 x GbE (RJ-45)
- USB
- 2 x USB 3.1 Gen 2
- Display
- 1 x DP++
Internal I/O
- Serial
- 1 x RS-232/422/485 (1.27mm pitch)
- USB
- 2 x USB 2.0 (1.27mm pitch)
- DIO
- 1 x 8-bit DIO
- SMBus
- 1 x SMBus, or I2C (Opt.)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- fTPM2.0
Power
- Type
- Wide Range 9~36V
- Connector
- 2-pin Terminal Block
- Consumption
- Typical: 8665UE:12V @ 0.43A (5.16Watt) Max.: 8665UE:12V @ 2.91A (34.92Watt)
- RTC Battery
- CR2032 Coin Cell
OS Support
- OS Support (UEFI Only)
- Windows 10 IoT Enterprise (64-bit) Linux
Environment
- Temperature
- Operating: 0 to 60°C, -30 to 80 °C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 8665UE : 569,616 hrs @ 25°C; 410,391 hrs @ 45°C ; 301,279 hrs @ 60°C; 187,893 hrs @ 80°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- 2.5" Pico-ITX Form Factor 100mm (3.94") x 72mm (2.83")
- Height
- PCB: 1.6mm Top Side: 15mm Bottom Side: 8mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- 1 WL053 board 1 Heat spreader (Height: 11mm) A71-808331-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| WL053-BCA-8665UE | 770-WL0531-000G | Intel Core® i7-8665UE, 1 SODIMM, 1 DP++, 1 LAN, 1 RS-232/422/485, 2 USB 3.1 Gen2, 2 USB 2.0, 9~36VDC, Fanless, -5 to 65℃ |
| WL053-BCA-8365UE | 770-WL0531-100G | Intel Core® i5-8365UE, 1 SODIMM, 1 DP++, 1 LAN, 1 RS-232/422/485, 2 USB 3.1 Gen2, 2 USB 2.0, 9~36VDC, Fanless, -5 to 65℃ |
| WL053-BCA-8145UE | 770-WL0531-200G | Intel Core® i3-8145UE, 1 SODIMM, 1 DP++, 1 LAN, 1 RS-232/422/485, 2 USB 3.1 Gen2, 2 USB 2.0, 9~36VDC, Fanless, -5 to 65℃ |
| WL053-BCA-4305UE | 770-WL0531-300G | Intel Core® Celeron 4305UE, 1 SODIMM, 1 DP++, 1 LAN, 1 RS-232/422/485, 2 USB 3.1 Gen2, 2 USB 2.0, 9~36VDC, Fanless, -5 to 65℃ |
| WL053-ECA-8665UE | 770-WL0531-400G | Intel Core® i7-8665UE, 1 SODIMM, 1 DP++, 1 LAN, 1 RS-232/422/485, 2 USB 3.1 Gen2, 2 USB 2.0, 9~36VDC, Fanless, -30 to 80℃ |
| WL053-ECA-8365UE | 770-WL0531-500G | Intel Core® i5-8365UE, 1 SODIMM, 1 DP++, 1 LAN, 1 RS-232/422/485, 2 USB 3.1 Gen2, 2 USB 2.0, 9~36VDC, Fanless, -30 to 80℃ |
| WL053-ECA-8145UE | 770-WL0531-600G | Intel Core® i3-8145UE, 1 SODIMM, 1 DP++, 1 LAN, 1 RS-232/422/485, 2 USB 3.1 Gen2, 2 USB 2.0, 9~36VDC, Fanless, -30 to 80℃ |
| WL053-ECA-4305UE | 770-WL0531-700G | Intel Core® Celeron 4305UE, 1 SODIMM, 1 DP++, 1 LAN, 1 RS-232/422/485, 2 USB 3.1 Gen2, 2 USB 2.0, 9~36VDC, Fanless, -30 to 80℃ |
| Item Name | Part Number | Description |
|---|---|---|
| 2 pole terminal to DC Jack cable | A81-004013-000G | |
| USB 2.0 cable | A81-001084-016G | Length: 200mm, 2 ports |
| COM cable | A81-015050-016G | Length: 300mm, 1 port |
| Heat sink for -5 to 65°C | A71-008153-010G | Height: 37.8mm |
| Heat sink for -30 to 80℃ | A71-008154-000G | Height: 37.8mm |
| DIO cable | A81-009203-018G | Length: 160mm |
| SMBus cable | A81-009353-016G | Length: 240mm |
| Front Panel cable | A81-020047-016G | Length: 200mm |
| Cooler | A71-108144-000G | Height: 23mm |
