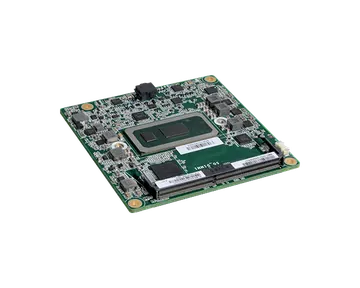

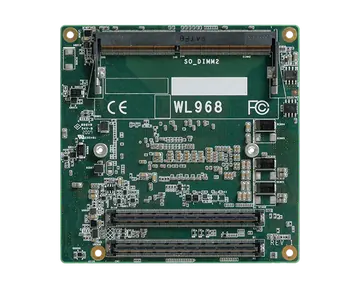

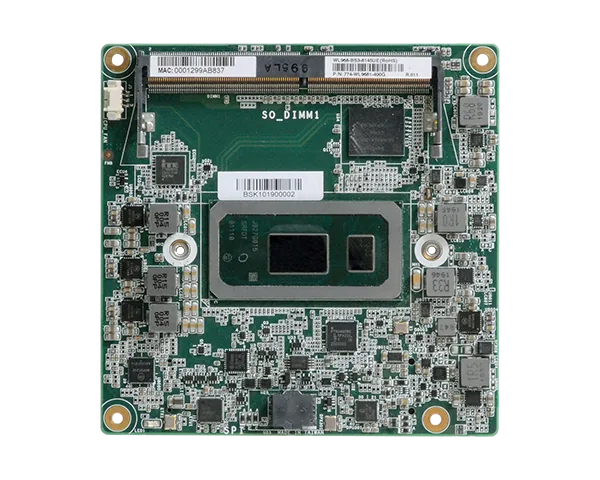

WL968
COM Express Type 6, 8th Gen Intel® Core™, DDR4, 4 or 5 PCIe x1, 1 PCIe x4 or 3 PCIe x1, 2 PCIe x2, 3 SATA 3.0, 4 USB 3.0, 8 USB 2.0, 1 VGA, 1 LVDS, 1 DDI
- 8th Generation Intel® Core™ Processor COM Express® Compact
- DDR4 2400/2133MHz SODIMM up to 64GB
- Triple Displays: VGA/DDI + LVDS/eDP + DDI
- DP++ supports 4K x 2K resolution
- Multiple expansion: 4 or 5 PCIe x1 + 1 PCIe x4 or 3 PCIe x1 + 2 PCIe x2, 1 LPC, 1 I²C, 1 SMBus, 2 UART
- Rich I/O: 1 Intel GbE, 4 USB 3.1 Gen2, 8 USB 2.0, 3 SATA 3.0
- 15-Year CPU Life Cycle Support Until Q2' 35 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#8th Gen Intel® Core™ Processor
#IoT
#Intel
#4K2K Display
#Windows
#Linux
#HDMI
#VGA
#DP
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#ULT
#UKCA Certification
Főbb jellemzőkKey features
- 8th Generation Intel® Core™ Processor COM Express® Compact
- DDR4 2400/2133MHz SODIMM up to 64GB
- Triple Displays: VGA/DDI + LVDS/eDP + DDI
- DP++ supports 4K x 2K resolution
- Multiple expansion: 4 or 5 PCIe x1 + 1 PCIe x4 or 3 PCIe x1 + 2 PCIe x2, 1 LPC, 1 I²C, 1 SMBus, 2 UART
- Rich I/O: 1 Intel GbE, 4 USB 3.1 Gen2, 8 USB 2.0, 3 SATA 3.0
- 15-Year CPU Life Cycle Support Until Q2' 35 (Based on Intel IOTG Roadmap)
System
- Processor
- 8th Gen Intel® Core™ Processor, FCBGA1528 Intel® Core™ i7-8665UE Processor, Quad Core, 8M Cache, 1.7GHz (4.4GHz), 15W Intel® Core™ i5-8365UE Processor, Quad Core, 6M Cache, 1.6GHz (4.1GHz), 15W Intel® Core™ i3-8145UE Processor, Dual Core, 4M Cache, 2.2GHz (3.9GHz), 15W Intel® Celeron® Processor 4305UE, Dual Core, 2M Cache, 2.0GHz (2.0GHz), 15W
- Memory
- Two 260-pin SODIMM up to 64GB Dual Channel DDR4 2400MHz, 2133MHz for Celeron Processor
- BIOS
- AMI SPI 128Mbit
Graphics
- Controller
- Intel® HD Graphics
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA/DDI (DDI available upon request) 1 x LVDS/eDP (eDP available upon request) 1 x DDI VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz eDP: resolution up to 4096x2304 @ 60Hz HDMI: resolution up to 4096x2160 @ 30Hz DP++: resolution up to 4096x2304 @ 60Hz
- Triple Displays
- VGA + LVDS + DDI or DDI + eDP + DDI
Expansion
- eMMC
- 1 x 8GB/16GB/32GB/64GB/128GB eMMC 5.1 (available upon request)
- Interface
- 6 PCIe x1 or 2 PCIe x1 + 1 PCIe x4 or 3 PCIe x1 + 2 PCIe x2 (support up to 5 devices and 7 lanes) 1 x LPC 1 x I2C 1 x SMBus 2 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I219LM with iAMT12.x PCIe (10/100/1000Mbps)
I/O
- USB
- 4 x USB 3.1 Gen2 8 x USB 2.0
- SATA
- Default 2xSATA , 3xSATA by BOM request (up to 6Gb/s) RAID 0/1/5
- DIO
- 1 x 8-bit DIO
Watchdog Timer
- Output & Interval
- Support COM Express 3kinds WDT Modes by BIOS setting
Security
- TPM
- Available Upon Request
Power
- Type
- 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
- Consumption
- TBD
OS Support
- OS Support
- Windows: Windows 10 IoT Enterprise 64-bit Linux
Environment
- Temperature
- Operating: 0 to 60°C (For normal Temperature skus); -40 to 85°C (For Extend temperature skus with Heat spreader , Heat-sink and active Fan) Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 28W@25℃
Mechanism
- Dimensions
- COM Express® Compact 95mm (3.74") x 95mm (3.74")
- Compliance
- PICMG COM Express® R3.0, Type 6
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- 1 WL968 board 1 CPU Cooler (for -40 to 85°C, H=35.2mm): A71-108124-000G 1 Heat sink (for 0 to 60°C, H=26.8mm): A71-008151-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| WL968-BS-4305UE | 770-WL9681-000G | Fanless, Intel Celeron 4305UE, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| WL968-TS-8365UE | 770-WL9681-200G | Cooler, Intel Core i5-8365UE, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, -40~85C |
| WL968-TS-8665UE | 770-WL9681-300G | Cooler, Intel Core i7-8665UE, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, -40~85C |
| WL968-BS-8145UE | 770-WL9681-400G | Fanless, Intel Core i3-8145UE, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| WL968-BS-8365UE | 770-WL9681-500G | Fanless, Intel Core i5-8365UE, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| WL968-BS-8665UE | 770-WL9681-600G | Fanless, Intel Core i7-8665UE, 1 LVDS, 1 VGA, 1 LAN, 4 USB 3.0, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| COM332-B carrier board kit | 770-CM3321-000G | |
| Heatspreader (H=11mm) | A71-808324-000G |
