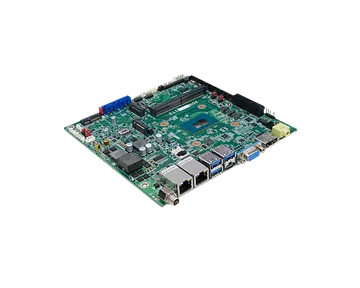

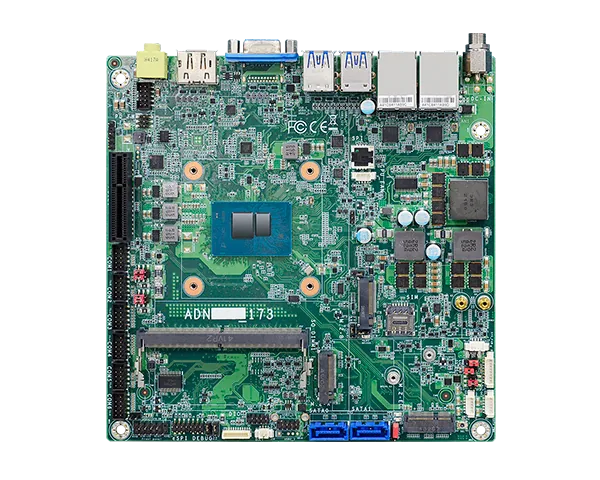

Mini-ITX, Intel® Atom® Alder Lake-N Processors, 1 DDR5 SODIMM, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key, 1 M.2 A Key, DP++/VGA + HDMI/DP++ + USB-Type C + *M2A-Display(opt.), 2 2.5GbE LAN, up to 4 USB 3.2, 1 USB Type C, 4 USB 2.0, 2 SATA3.0, 6 COM
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| ADN171-CB-x7213E | 770-ADN1711-000G | Intel® Atom® x7213E, 1 DDR5, Rear I/O(1 DP++, 1 VGA, 2 LAN, 3 USB 3.2 Gen2, 1 USB Type C), Internal I/O (4 RS-232, 2 RS-232/422/485, 4 USB 2.0), 12V DC Jack, Fanless, -5 to 65°C. Note: DO NOT SUPPORT CNVi. |
| ADN171-CB-N200 | 770-ADN1711-100G | Intel® Processor N200, 1 DDR5, Rear I/O(1 DP++, 1 HDMI, 2 LAN, 4 USB 3.2 Gen2), Internal I/O (4 RS-232, 2 RS-232/422/485, 4 USB 2.0), 12V DC Jack, Fanless, -5 to 65°C |
| ADN171-CB-N50 | 770-ADN1711-200G | Intel® Processor N50, 1 DDR5, Rear I/O(2 DP++, 2 LAN, 3 USB 3.2 Gen2, 1 USB 2.0), Internal I/O (4 RS-232, 2 RS-232/422/485, 4 USB 2.0), 12V DC Jack, Fanless, -5 to 65°C |
| ADN171-CB-N97 | 770-ADN1711-300G | Intel® Processor N97, 1 DDR5, Rear I/O(2 DP++, 2 LAN, 3 USB 3.2 Gen2, 1 USB Type C), Internal I/O (4 RS-232, 2 RS-232/422/485, 4 USB 2.0), 12V DC Jack, Fanless, -5 to 65°C |
| ADN171-CB-i3-N305 | 770-ADN1711-400G | Intel® Atom® i3-N305, 1 DDR5, Rear I/O(1 DP++, 1 HDMI, 2 LAN, 3 USB 3.2 Gen2, 1 USB 2.0), Internal I/O (4 RS-232, 2 RS-232/422/485, 4 USB 2.0), 12V DC Jack, Fanless, -5 to 65°C |
| ADN171-CB-N100 | 770-ADN1711-500G | Intel® Processor N100, 1 DDR5, Rear I/O(2 DP++, 2 LAN, 3 USB 3.2 Gen2, 1 USB Type C), Internal I/O (4 RS-232, 2 RS-232/422/485, 4 USB 2.0), 12V DC Jack, Fanless, -5 to 65°C |
| ADN173-CB-x7213E | 770-ADN1731-000G | Intel® Atom® x7213E, 1 DDR5, Rear I/O(1 DP++, 1 HDMI, 2 LAN, 3 USB 3.2 Gen2, 1 USB 2.0), Internal I/O (4 RS-232, 2 RS-232/422/485, 4 USB 2.0), 9~36V DC Jack, Fanless, -5 to 65°C. Note: DO NOT SUPPORT CNVi. |
| ADN173-CB-N50 | 770-ADN1731-100G | Intel® Processor N50, 1 DDR5, Rear I/O(2 DP++, 2 LAN, 3 USB 3.2 Gen2, 1 USB Type C), Internal I/O (4 RS-232, 2 RS-232/422/485, 4 USB 2.0), 9~36V DC Jack, Fanless, -5 to 65°C |
| ADN173-CB-x7425E | 770-ADN1731-200G | Intel® Atom® x7425E, 1 DDR5, Rear I/O(1 DP++, 1 VGA, 2 LAN, 3 USB 3.2 Gen2, 1 USB Type C), Internal I/O (4 RS-232, 2 RS-232/422/485, 4 USB 2.0), 9~36V DC Jack, Fanless, -5 to 65°C |
| ADN173-CB-N97 | 770-ADN1731-300G | Intel® Processor N97, 1 DDR5, Rear I/O(2 DP++, 2 LAN, 3 USB 3.2 Gen2, 1 USB 2.0), Internal I/O (4 RS-232, 2 RS-232/422/485, 4 USB 2.0), 9~36V DC Jack, Fanless, -5 to 65°C |
| ADN173-CB-i3-N305 | 770-ADN1731-400G | Intel® Atom® i3-N305, 1 DDR5, Rear I/O(1 DP++, 1 HDMI, 2 LAN, 3 USB 3.2 Gen2, 1 USB 2.0), Internal I/O (4 RS-232, 2 RS-232/422/485, 4 USB 2.0), 9~36V DC Jack, Fanless, -5 to 65°C |
| ADN173-CB-N100 | 770-ADN1731-500G | Intel® Processor N100, 1 DDR5, Rear I/O(2 DP++, 2 LAN, 3 USB 3.2 Gen2, 1 USB 2.0), Internal I/O (4 RS-232, 2 RS-232/422/485, 4 USB 2.0), 9~36V DC Jack, Fanless, -5 to 65°C |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
