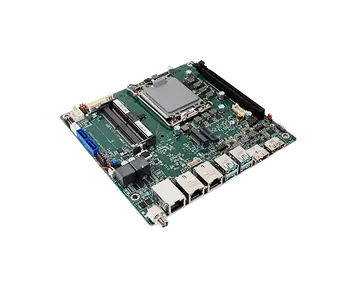

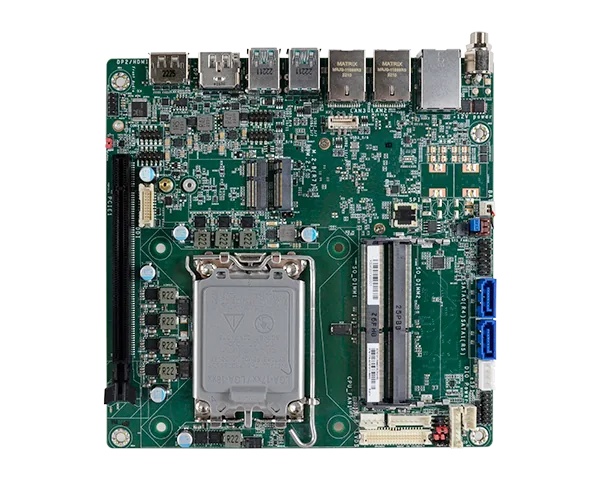

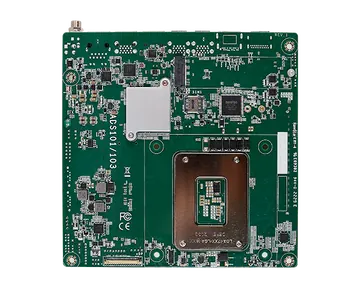

Mini-ITX, Bartlett Lake, Alder Lake, 14th/13th/12th Gen Intel® Core™, 2 DDR4 SODIMM, 1 PCIe x16, 1 M.2 E Key, 1 M.2 M Key, 1 M.2 B Key, 2 DP++, LVDS/eDP, DFI display extension port (DP/HDMI/VGA available), 1 Intel 2.5GbE, up to 2 Intel GbE, 2 COM, up to 6 USB 3.2 Gen2, 2 USB 3.2 Gen1, 4 USB 2.0, 2 SATA 3.0
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|

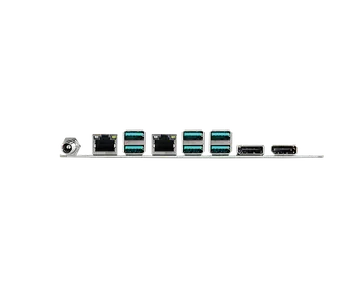

| ADS101-R680DB | 770-ADS1012-000G | ADS101-R680DB, 2 DDR4, Rear I/O (2 DP++, 1 2.5GbE + 1 GbE, 6 USB 3.2 Gen2), Internal I/O (M.2 M/B/E Key, 2 USB3.2 Gen1, 4 USB 2.0), dTPM, 12V DC-Jack, -5°C ~ 65°C |
| ADS101-Q670DB | 770-ADS1012-100G | ADS101-Q670DB, 2 DDR4, Rear I/O (2 DP++, 1 2.5GbE + 1 GbE, 6 USB 3.2 Gen2), Internal I/O (M.2 M/B/E Key, 2 USB3.2 Gen1, 4 USB 2.0), dTPM, 12V DC-Jack, -5°C ~ 65°C |

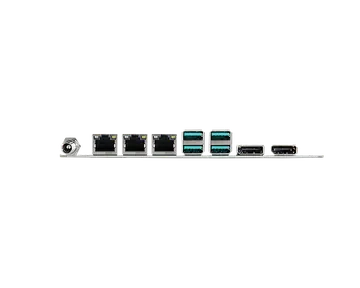

| ADS101-H610IB | 770-ADS1012-200G | ADS101-H610IB, 2 DDR4, Rear I/O (2 DP++, 1 2.5GbE + 2 GbE, 2 USB 3.2 Gen2, 1 USB 3.2 Gen1, 1 USB 2.0), Internal I/O (M.2 M/B/E Key, 4 USB 2.0), dTPM, 12V DC-Jack, -5°C ~ 65°C |
| ADS101-R680IB | 770-ADS1012-300G | ADS101-R680IB, 2 DDR4, Rear I/O (2 DP++, 1 2.5GbE + 2 GbE, 4 USB 3.2 Gen2), Internal I/O (M.2 M/B/E Key, 2 USB3.2 Gen1, 4 USB 2.0), dTPM, 12V DC-Jack, -5°C ~ 65°C |
| ADS103-R680DB | 770-ADS1032-000G | ADS103-R680DB, 2 DDR4, Rear I/O (2 DP++, 1 2.5GbE + 1 GbE, 6 USB 3.2 Gen2), Internal I/O (M.2 M/B/E Key, 2 USB3.2 Gen1, 4 USB 2.0), dTPM, 15~36V DC-IN, -5°C ~ 65°C |
| ADS103-Q670DB | 770-ADS1032-100G | ADS103-Q670DB, 2 DDR4, Rear I/O (2 DP++, 1 2.5GbE + 1 GbE, 6 USB 3.2 Gen2), Internal I/O (M.2 M/B/E Key, 2 USB3.2 Gen1, 4 USB 2.0), dTPM, 15~36V DC-IN, -5°C ~ 65°C |
| ADS103-H610IB | 770-ADS1032-200G | ADS103-H610IB, 2 DDR4, Rear I/O (2 DP++, 1 2.5GbE + 2 GbE, 2 USB 3.2 Gen2, 1 USB 3.2 Gen1, 1 USB 2.0), Internal I/O (M.2 M/B/E Key, 4 USB 2.0), dTPM, 15~36V DC-IN, -5°C ~ 65°C |
| ADS103-R680IB | 770-ADS1032-300G | ADS103-R680IB, 2 DDR4, Rear I/O (2 DP++, 1 2.5GbE + 2 GbE, 4 USB 3.2 Gen2), Internal I/O (M.2 M/B/E Key, 2 USB3.2 Gen1, 4 USB 2.0), dTPM, 15~36V DC-IN, -5°C ~ 65°C |
| Item Name | Part Number | Description |
|---|---|---|
| COM port cable | A81-015011-001G | Length: 250mm, 1 x COM ports |
| USB 3.1 cable | A81-001075-017G | 2-port USB3.1 Gen1/2, Length: 300mm, w/bracket |
| Serial ATA data & power cable w/lock | A81-002101-016G | Length: 300mm |
| Thermal solution | A71-101136-000G A71-101137-000G | For 35W, Height: 29.4mm For 65W, Height: 46mm |
| DT122 Chassis | 761-DT1220-200G | |
| EXT-VGA module board | 770-DP2VGA-000G | EXT-VGA: DP-to-VGA MODULE CARD |
| EXT-HDMI module board | 770-DP2HDM-000G | EXT-HDMI: DP-to-HDMI 1.4 MODULE CARD |
| EXT-DP module board | 770-EXTDP1-000G | EXT-DP: DP-to-DP MODULE CARD |
