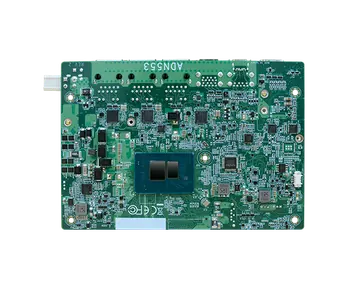

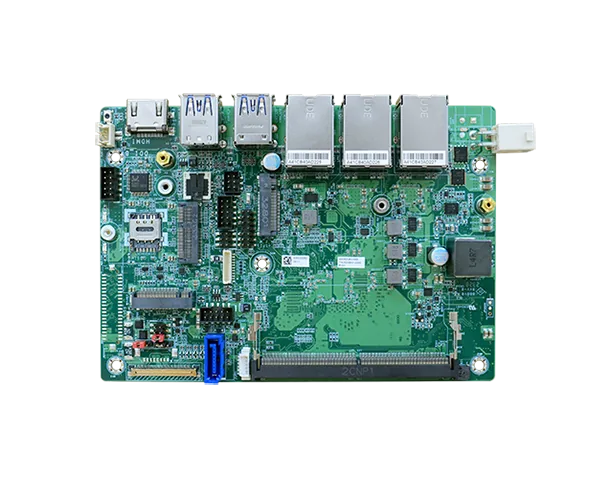

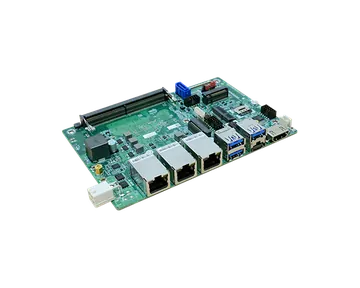

ADN553
3.5" SBC, Intel® Atom® Alder Lake-N Processors, 1 DDR5, 1 M.2 E Key, 1 M.2 B Key, 1 M.2 E Key, 1 HDMI, 1 Type-C DP Alt. Mode, 1 LVDS/eDP, 3 2.5GbE LAN, 4 USB 3.2, 2 USB 2.0, 1 SATA
- Intel® Atom® Alder Lake-N Processors 3.5" SBC
- 1 DDR5 SO-DIMM
- 4K High Resolution: Supports 4K/ 2K resolution
- Triple Display: 1 HDMI, 1 Type-C DP Alt. Mode, 1 LVDS/eDP
- Rich I/O Connectivity: 3 2.5GbE LAN, 4 USB 3.2, 2 USB 2.0, 1 SATA
- Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
Főbb jellemzők
Tanúsítványok
#DDR5
#Windows 10
#9~36V DC-in
#LVDS
#Edge AI Computing
#Intel® Atom® Alder Lake-N Processors
#eDP
#IoT
#Windows 11
#Intel
#HMI
#5G
#Fanless Design
#4K2K Display
#Windows
#Linux
#HDMI
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#KC Certification
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Atom® Alder Lake-N Processors 3.5" SBC
- 1 DDR5 SO-DIMM
- 4K High Resolution: Supports 4K/ 2K resolution
- Triple Display: 1 HDMI, 1 Type-C DP Alt. Mode, 1 LVDS/eDP
- Rich I/O Connectivity: 3 2.5GbE LAN, 4 USB 3.2, 2 USB 2.0, 1 SATA
- Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
System
- Processor
- Intel® Atom® Alder Lake-N Processors, TDP up to 15W · Embedded Intel Atom® x7425E, 4 cores, 6M Cache, up to 3.40 GHz, 12W Intel Atom® x7213E, 2 cores, 6M Cache, up to 3.20 GHz, 10W Intel Atom® x7211E, 2 cores, 6M Cache, up to 3.20 GHz, 6W · PC Client Intel® Core™ i3-N305, 8 cores, 6M Cache, up to 3.80 GHz, 15W Intel® Processor N200, 4 cores, 6M Cache, up to 3.70 GHz, 6W Intel® Processor N97, 4 cores, 6M Cache, up to 3.60 GHz, 12W Intel® Processor N50, 2 cores, 6M Cache, up to 3.40 GHz, 6W
- Memory
- One 262-pin SODIMM up to 16GB Single Channel DDR5 4800MHz
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® UHD Graphics
- Feature
- OpenGL 4.6, Direct X 12.1, OpenCL 3.0 HW Decode: HEVC, VP9, AV1, AVC HW Encode: HEVC, VP9, AVC
- Display
- 1 x HDMI 1 x Type-C DP Alt. Mode 1 x LVDS/eDP HDMI: resolution up to 4096x2160@24Hz DP: resolution up to 3840x2160 @60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200@60Hz eDP: resolution up to 4096x2160 @60Hz
- Triple Displays
- HDMI + Type-C DP Alt. Mode + LVDS/eDP
Expansion
- Interface
- 1 x M.2 M key 2280/2242 (PCIe Gen3 x1/SATA3.0) 1 x M.2 B key 3052/3042 (USB3.0/USB2.0, optional PCIe x1), 1 x SIM slot for 4G/5G 1 x M.2 E key 2230 (USB/PCIe x1, support CNVi)
Audio
- Audio Codec
- Realtek ALC888S
Ethernet
- Controller
- 3 x Intel® I226V(10/100/1000/2500Mbps). LAN3 option with M.2 3052 PCIe x1.

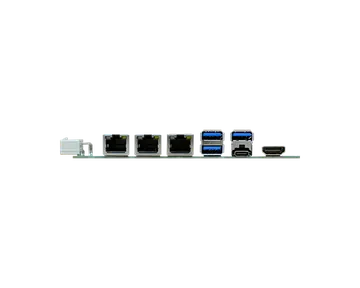

Rear I/O
- Ethernet
- 3 x 2.5GbE (RJ-45)
- USB
- 4 x USB 3.2
- Display
- 1 x HDMI 1 x Type-C DP Alt. Mode
Internal I/O
- Serial
- 1 x RS-232/422/485 (2.0mm pitch)
- USB
- 2 x USB 2.0 (2.0mm pitch)
- Display
- 1 x LVDS LCD Panel Connector and 1 x LCD/Inverter Power or 1 x eDP Connector
- Audio
- 1 x Audio (Line-out/Mic-in)
- SATA
- 1 x SATA 3.0 (up to 6Gb/s) 1 x SATA Power
- DIO
- 1 x 8-bit DIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- dTPM2.0
Power
- Type
- Wide Range 9~36V DC
- Connector
- Right Angle Connector (4-pin) DC-in Jack (available upon request) Vertical Type Connector (4-pin) (available upon request)
- Consumption
- Typical: i3-N305, 19V @ 0.45A (8.55W) Max: i3-N305, 19V @ 2.7A (51.3W)
- RTC Battery
- CR2032 Coin Cell
OS Support
- OS Support (UEFI Only)
- Windows 10 IoT Enterprise (64-bit) Windows 11 Linux
Environment
- Temperature
- Operating: -5 to 65C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 593,096 hrs @ 25°C; 398,330 hrs @ 45°C; 276,293 hrs @ 60°C Calculation Model: Telcordia Issue 4 Environment: GB, GC - Ground Benign, Controlled
Mechanism
- Dimensions
- 3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02")
- Height
- PCB: 1.6mm Top Side: 15.0mm Bottom Side: 4.0mm
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS, UKCA, KC
Packing List
- Packing List
- • 1 ADN553 board • 1 COM port cable(Length: 250mm, 1x COM port), A81-015115-018G • 1 SATA DATA/Power cable (Length : 300mm), A81-002144-018G • 1 Heat sink (Height: 29 mm), A71-008353-020G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| ADN553-BN-x7425E | 770-ADN5532-000G | Intel Atom® x7425E, 4C, 12W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + LVDS, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C |
| ADN553-BN-x7211E | 770-ADN5532-100G | Intel Atom® x7211E, 2C, 6W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + eDP, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C |
| ADN553-BN-N305 | 770-ADN5532-200G | Intel® Core™ i3-N305, 8 cores, 15W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + eDP, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C |
| ADN553-BN-N200 | 770-ADN5532-300G | Intel® Processor N200, 4 cores, 6W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + LVDS, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C |
| ADN553-BN-N97 | 770-ADN5532-400G | Intel® Processor N97, 4C, 12W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + eDP, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C |
| ADN553-BN-N50 | 770-ADN5532-500G | Intel® Processor N50, 2 cores, 6W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + eDP, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C |
| ADN553-BN-x7213E | 770-ADN5532-600G | Intel Atom® x7213E, 2C, 10W. 1 DDR5 SO-DIMM, HDMI + Type-C DP Alt. Mode + LVDS, 3 2.5G LAN, 1 RS232/422/485, 4 USB 3.2, 2 USB 2.0, 9~36 VDC, Fanless, -5 to 65°C |
| Item Name | Part Number | Description |
|---|---|---|
| Power adapter | 671-106012-000G | 60W, 12V |
| USB 2.0 cable | A81-001163-018G | Length: 200mm, 2 USB ports |
| Front panel cable | A81-009678-018G | Length: 250mm |
| Audio cable | A81-022007-016G | Length: 160mm |
| Heat spreader | A71-808356-010G | Height: 7mm |
| 4-pin power to DC jack cable | A81-004051-016G | Length: 100mm |
