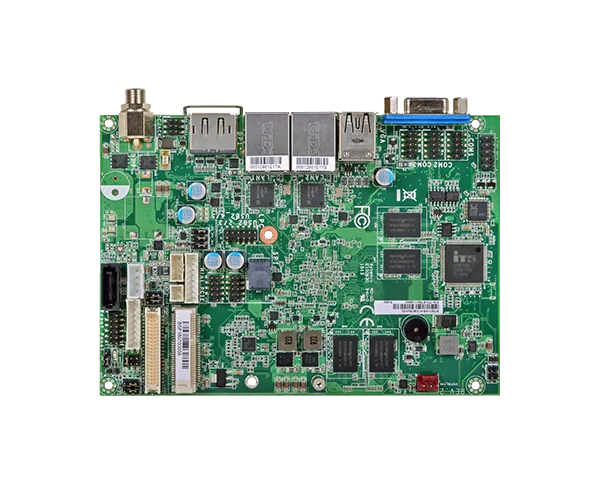

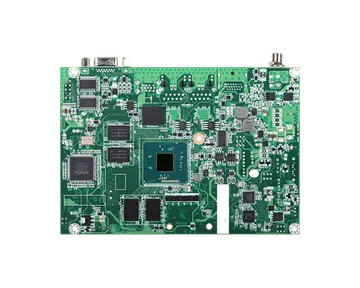

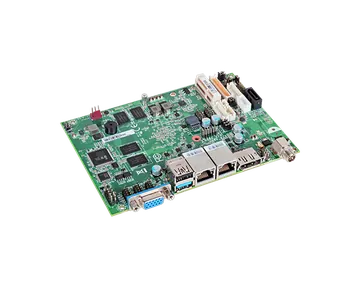

BT553
Intel®Atom™ processor E3800 product family, providing low power consumption and substantially better performance than previous generation Intel®Atom™ processors. The platform with BGA 1170 packaging technology features low-power consumption.
- 2GB/4GB DDR3L memory down
- 1 VGA, 1 LVDS, 1 DP
- Expansion: 1 Mini PCIe
- Rich I/O: 2 Intel GbE, 3 COM, 1 USB 3.0, 5 USB 2.0
- Intel Atom® Processor E3800
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#Mini PCIe
#Fanless Design
#Windows
#VGA
#DDR3L
#RoHS Certification
Főbb jellemzőkKey features
- 2GB/4GB DDR3L memory down
- 1 VGA, 1 LVDS, 1 DP
- Expansion: 1 Mini PCIe
- Rich I/O: 2 Intel GbE, 3 COM, 1 USB 3.0, 5 USB 2.0
- Intel Atom® Processor E3800
System
- Processor
- Intel® Atom™ E3826, Dual Core, 1M Cache, 1.46GHz, 7W Intel® Atom™ E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W
- Memory
- 2GB/4GB DDR3L memory down Dual channel DDR3L 1066/1333MHz
- BIOS
- AMI SPI 64Mbit
Graphics
- Controller
- Intel® HD Graphics
- Feature
- Supports hardware acceleration for DirectX 11, OCL 1.2, OGL 4.0, H.264, MPEG2, MVC, VC-1, WMV9 and VP8 (supported version dependent on OS)
- Display
- 1 x VGA 1 x LVDS 1 x DP VGA: 24-bit, resolution up to 2560x1600 @ 60Hz LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz DP: supports DP++, resolution up to 2560x1600 @ 60Hz
Expansion
- Interface
- 1 x Mini PCIe
Audio
- Audio Codec
- Realtek ALC888
Ethernet
- Controller
- 2 x Intel® I210 PCIe (10/100/1000Mbps)

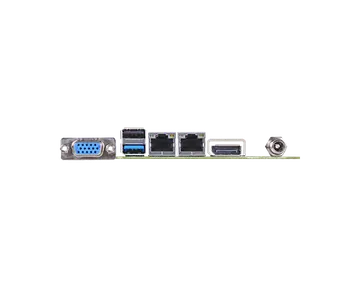

Rear I/O
- Ethernet
- 2 x GbE (RJ45)
- USB
- 1 x USB 3.0 1 x USB 2.0
- Display
- 1 x DP 1 x VGA
Internal I/O
- Serial
- 1 x RS485 (2.0mm pitch) 2 x RS232 (2.0mm pitch)
- USB
- 4 x USB 2.0
- Display
- 1 x LVDS
- Audio
- 1 x Line-out 1 x Mic-in
- SATA
- 1 x SATA 2.0 (up to 3Gb/s)
- DIO
- 8-bit DIO
- CANBus
- 1 x SMBus
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Available Upon Request
Power
- Type
- Wide Range 15~36V
- Connector
- DC-in Jack Vertical Type Connector (4-pin) (available upon request)
- Consumption
- Idle: E3845 10W: 15V @ 0.413A (6.195W) Max: E3845 10W: 15V @ 0.986A (14.790W)
OS Support
- OS Support
- Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8.1 Embedded Pro x86 (32-bit) Windows 8.1 Embedded Pro x64 (64-bit) Windows 10 IoT Enterprise (64-bit)
Environment
- Temperature
- Operating: 0°C to 60°C - Atom, Celeron (Fanless) -20°C to 70°C - Celeron (Fanless) -40°C to 85°C - Atom (Fanless) Storage: -40°C to 85°C
- Humidity
- Operating: 5% to 90% RH Storage: 5 to 90% RH
- MTBF
- 373,288 hrs @ 25°C; 218,452 hrs @ 45°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- 3.5" board 146mm (5.75") x 102mm (4.02")
- Height
- PCB: 1.6mm Top Side: 16.5mm Bottom Side: 3mm
Packing List
- Packing List
- 1 BT553 board 1 Serial ATA data with power cable: A81-002013-000G 1 Heat spreader with heat sink: 761-BT5511-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| BT553-NB-21E26 | Fanless, Intel® Atom™ E3826, 2 GB DDR3L SODIMM, 16GB eMMC, 3 COM, 0 to 60°C | |
| BT553-NB-41E45 | Fanless, Intel® Atom™ E3845, 4 GB DDR3L SODIMM, 16GB eMMC, 3 COM, 0 to 60°C | |
| BT553-NB-41J00 | Fanless, Intel® Celeron® J1900, 4 GB DDR3L SODIMM, 16GB eMMC, 3 COM, 0 to 60°C | |
| BT553-NT-41E45 | Fanless, Intel® Atom™ E3845, 4 GB DDR3L SODIMM, 16GB eMMC, 3 COM, -40 to 85°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB port cable | A81-001032-016G | |
| COM port cable | 332-753040-000G | |
| Power adapter | 671-112009-100G | 120W, 19V |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
