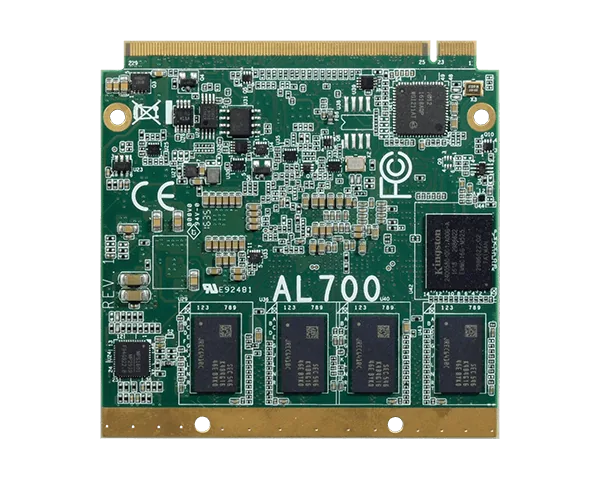

AL700
AL700, Qseven with Intel Atom®/Pentium®/Celeron®, designed with Ruggedize, wide temperature, power-saving which is ideal for Smart Teach Pendant/medical/multimedia/industrial automation applications
- Intel Atom® E3900 Series
- Rich I/O: 1 Intel GbE, 1 USB 3.0, 8 USB 2.0
- Multiple expansions: 4 PCIe x1
- 1 DDI*, 1 LVDS*/(eDP + DDI) Supports triple displays: eDP+2DDI
- 4GB/8GB DDR3L Dual Channel Memory Down
- 15-Year CPU Life Cycle Support Until Q1' 31 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
Főbb jellemzőkKey features
- Intel Atom® E3900 Series
- Rich I/O: 1 Intel GbE, 1 USB 3.0, 8 USB 2.0
- Multiple expansions: 4 PCIe x1
- 1 DDI*, 1 LVDS*/(eDP + DDI) Supports triple displays: eDP+2DDI
- 4GB/8GB DDR3L Dual Channel Memory Down
- 15-Year CPU Life Cycle Support Until Q1' 31 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel Atom® Processor E3900 Series, BGA 1296 Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
- Memory
- 4GB/8GB DDR3L Memory Down Dual Channel DDR3L 1600MHz
- BIOS
- AMI SPI 128Mbit (supports UEFI boot only)
Graphics
- Controller
- Intel® HD Graphics Gen9LP Series
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
- Display
- 1 x DDI (HDMI/DVI/DP++) 1 x LVDS/(eDP+DDI) (DDI available upon request) LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 3840x2160 @ 30 Hz DP++: resolution up to 4096x2160@60Hz eDP: resolution up to 3840x2160 @ 60Hz
- Dual Displays/ Triple Displays
- LVDS + DDI (Dual) eDP + DDI (Dual) eDP+2DDI (Triple) (available upon request)
Expansion
- Interface
- 4 x PCIe x1 (Gen 2) 1 x SDIO (with LED) 1 x LPC 1 x I2C 1 x SMBus 1 x SPI 1 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I211AT (10/100/1000Mbps) (0~60°C) 1 x Intel® I210IT (10/100/1000Mbps) (-40 to 85°C)
I/O
- USB
- 1 x USB 3.0 + 8 x USB 2.0 3 x USB 3.0 + 4 x USB 2.0 (option)
- SATA
- 2 x SATA 3.0 (up to 6Gb/s)
- eMMC
- Supports up to 32GB eMMC eMMC 5.0, BGA-153 Ball 8~32G (MLC mode)
- GPIO
- 1 x 4-bit GPIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- FTPM
- Enables or Disables the BIOS support for the security device
Power
- Type
- 5V, 5VSB, VCC_RTC
- Consumption
- Typical: E3940: 12V @ 0.53A (6.36W) Max.: E3940: 12V @ 1.78A (21.36W)
OS Support
- OS Support (UEFI Only)
- Windows 10 IoT Enterprise 64-bit Linux
Environment
- Temperature
- Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 1,020,531 hrs @ 25°C; 583,481 hrs @ 45°C; 364,855 hrs @ 60°C Calculation model: Telcordia Issue 2 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- Qseven form factor 70mm (2.76") x 70mm (2.76")
- Compliance
- Qseven specification revision 2.1
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS
Packing List
- Packing List
- 1 AL700 board 1 Heat sink: (E Series) A71-008302-000G ; (N Series) A71-008301-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| AL700-B40-E50 | 770-AL7001-100G | Fanless, Intel Atom x5-E3950, 1 LVDS, 1 LAN, 1 USB 3.0, 8 USB 2.0, 4GB DDR3L Memory Down , 0 to 60°C |
| AL700-T40-E30 | 770-AL7001-600G | Fanless, Intel Atom x5-E3930, 1 LVDS, 1 LAN, 1 USB 3.0, 8 USB 2.0, 4GB DDR3L Memory Down , -40 to 85°C |
| AL700-T40-E40 | 770-AL7001-500G | Fanless, Intel Atom x5-E3940, 1 LVDS, 1 LAN, 1 USB 3.0, 8 USB 2.0, 4GB DDR3L Memory Down , -40 to 85°C |
| Item Name | Part Number | Description |
|---|---|---|
| Qseven Carrier Board Q7X-151 | 770-Q7X153-000G | |
| Bracket | A31-028001-200G | |
| Heat Sink | A71-008301-000G (N Series) |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
Hasonló termékekRelated products

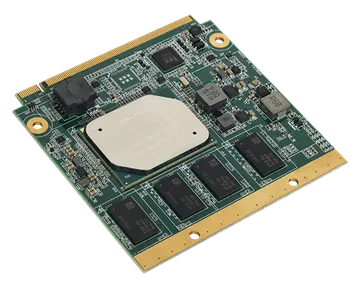

BT700
