AL700, Qseven with Intel Atom®/Pentium®/Celeron®, designed with Ruggedize, wide temperature, power-saving which is ideal for Smart Teach Pendant/medical/multimedia/industrial automation applications

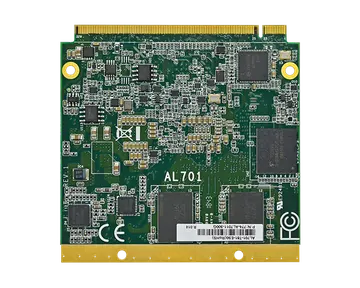

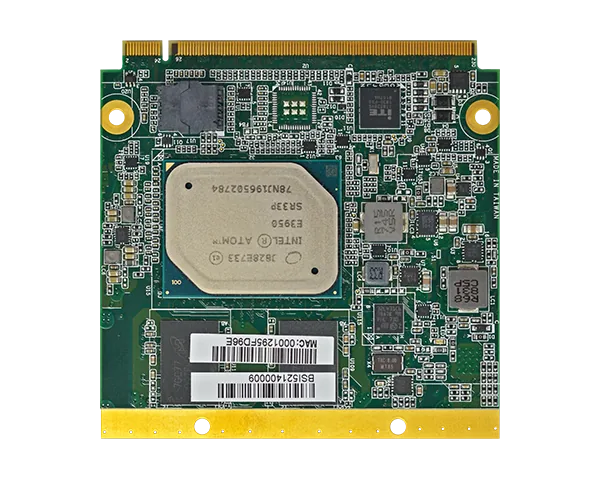

AL701
Qseven, Intel Atom® E3900, LPDDR4, 4 PCIe x1, 9 USB, 1 LVDS, 1 DDI
- 4GB/8GB LPDDR4 Dual Channel Memory Down
- 1 DDI*, 1 LVDS*/(eDP + DDI)；Supports triple displays: eDP+2DDI
- DP++ resolution supports up to 4096x2160 @ 60Hz
- Multiple expansions: 4 PCIe x1
- Rich I/O: 1 Intel GbE, 1 USB 3.0, 8 USB 2.0
- 15-Year CPU Life Cycle Support Until Q4' 32 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#CAN-Bus
#Fanless Design
#4K2K Display
#1G Ethernet
#Windows
#Linux
#HDMI
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- 4GB/8GB LPDDR4 Dual Channel Memory Down
- 1 DDI*, 1 LVDS*/(eDP + DDI)；Supports triple displays: eDP+2DDI
- DP++ resolution supports up to 4096x2160 @ 60Hz
- Multiple expansions: 4 PCIe x1
- Rich I/O: 1 Intel GbE, 1 USB 3.0, 8 USB 2.0
- 15-Year CPU Life Cycle Support Until Q4' 32 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel Atom® Processor E3900 Series, BGA 1296 Intel Atom® x7-E3950 Processor, Quad Core, 2M Cache, 1.6GHz (2.0GHz), 12W Intel Atom® x5-E3940 Processor, Quad Core, 2M Cache, 1.6GHz (1.8GHz), 9.5W Intel Atom® x5-E3930 Processor, Dual Core, 2M Cache, 1.3GHz (1.8GHz), 6.5W Intel® Pentium® Processor N4200, Quad Core, 2M Cache, 1.1GHz (2.5GHz), 6W Intel® Celeron® Processor N3350, Dual Core, 2M Cache, 1.1GHz (2.4GHz), 6W
- Memory
- 4GB/8GB LPDDR4 Memory Down Dual Channel LPDDR4 3200MHz
- BIOS
- AMI SPI 128Mbit (supports UEFI boot only)
Graphics
- Controller
- Intel® HD Graphics Gen9LP Series
- Feature
- OpenGL 5.0, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.265, VP8, VP9, MVC
- Display
- 1 x DDI (HDMI/DVI/DP++) 1 x LVDS/(eDP+DDI) (DDI available upon request) LVDS: NXP PTN3460, 24-bit, dual channel, resolution up to 1920x1200 @ 60Hz HDMI: resolution up to 3840x2160 @ 30 Hz DP++: resolution up to 4096x2160@60Hz eDP: resolution up to 3840x2160 @ 60Hz
- Dual Displays/ Triple Displays
- LVDS + DDI (Dual) eDP + DDI (Dual) eDP+2DDI (Triple) (available upon request)
Expansion
- Interface
- 4 x PCIe x1 (Gen 2) 1 x SDIO (with LED) 1 x LPC 1 x I2C 1 x SMBus 1 x SPI 1 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I211AT (10/100/1000Mbps) (0~60°C) 1 x Intel® I210IT (10/100/1000Mbps) (-40 to 85°C)
I/O
- USB
- 1 x USB 3.0 + 8 x USB 2.0 3 x USB 3.0 + 4 x USB 2.0 (option)
- SATA
- 2 x SATA 3.0 (up to 6Gb/s)
- eMMC
- Supports up to 32GB eMMC eMMC 5.0, BGA-153 Ball 8~32G(MLC mode)
- GPIO
- 1 x 4-bit GPIO
- CANBus
- CAN Bus Function (available upon request)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- FTPM
- Enables or Disables the BIOS support for the security device
Power
- Type
- 5V, 5VSB, VCC_RTC
- Consumption
- Typical: E3940: 12V @ 0.92A (11.04W) Max.: E3940:12V @ 1.82A (21.84W)
OS Support
- OS Support (UEFI Only)
- Windows 10 IoT Enterprise 64-bit Linux (Intel graphic driver available)
Environment
- Temperature
- Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 2,261,043 hrs @ 25°C; 1,441,014 hrs @ 45°C; 975,882 hrs @ 60°C 740,273 hrs @ 70°C; 481,855 hrs @ 85°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- Qseven form factor 70mm (2.76") x 70mm (2.76")
- Compliance
- Qseven specification revision 2.1
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS, UKCA
Packing List
- Packing List
- 1 AL701 board 1 Heat sink: A71-008123-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| AL701-B40-E30 | 770-AL7011-100G | Fanless, Intel Atom x5-E3930, 1 LVDS, 1 LAN, 1 USB 3.0, 8 USB 2.0, 4GB LPDDR4 Memory Down, 0 to 60°C |
| AL701-B40-E40 | 770-AL7011-200G | Fanless, Intel Atom x5-E3940, 1 LVDS, 1 LAN, 1 USB 3.0, 8 USB 2.0, 4GB LPDDR4 Memory Down, 0 to 60°C |
| AL701-T80-E50 | 770-AL7011-300G | Fanless, Intel Atom x5-E3950, 1 LVDS, 1 LAN, 3 USB 3.0, 4 USB 2.0, 8GB LPDDR4 Memory Down, -40 to 85°C |
| Item Name | Part Number | Description |
|---|---|---|
| Qseven Carrier Board | 770-Q7X154-000G | |
| Heat spreader | A71-808321-000G |
