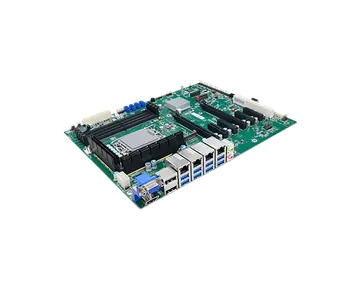

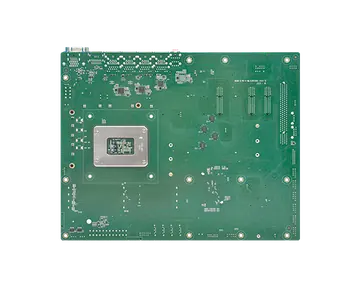

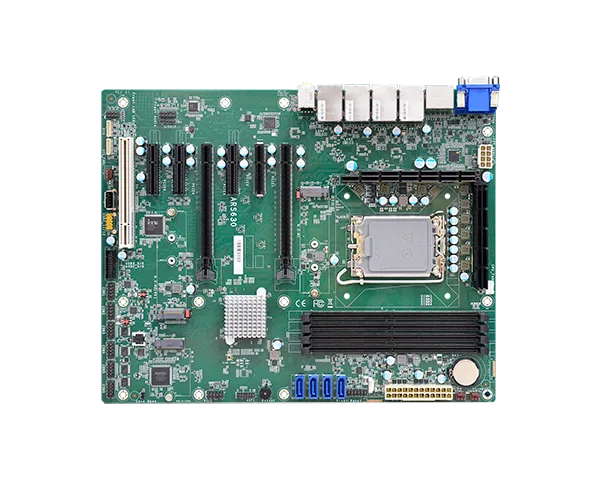

ARS630-W880/Q870
ATX, Intel® Core™ Ultra Processors, 4 DDR5 UDIMM, VGA, 2 DP++, HDMI, 2 PCIe x16, 4 PCIe x4, 1 PCI, 2 M.2 M key, 1 M.2 A Key (for OOB), 4 Intel 2.5GbE, 6 COM, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, -5 to 65°C
- Intel® Core™ Ultra with Intel® W880/Q870 chipset
- 4 DDR5 UDIMM up to 256GB
- Quad Displays: VGA, 2 DP++, HDMI
- Supports 4K resolution
- Multiple Expansion: 2 PCIe x16, 4 PCIe x4, 1 PCI, 2 M.2 M key, 1 M.2 A Key (for OOB)
- Rich I/O: 4 Intel 2.5GbE, 6 COM, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0
- Typically supports 5-Year CPU Life Cycle Until Q1’30 (Based on Intel IOTG Roadmap)
- Support M2A-OOB
Főbb jellemzők
Tanúsítványok
#DDR5
#Windows 10
#M2A-OOB
#Intel® Core™ Ultra processors
#IoT
#Windows 11
#Intel
#4K2K Display
#1G Ethernet
#PCIe x16
#Windows
#Linux
#HDMI
#VGA
#DP
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#KC Certification
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- Intel® Core™ Ultra with Intel® W880/Q870 chipset
- 4 DDR5 UDIMM up to 256GB
- Quad Displays: VGA, 2 DP++, HDMI
- Supports 4K resolution
- Multiple Expansion: 2 PCIe x16, 4 PCIe x4, 1 PCI, 2 M.2 M key, 1 M.2 A Key (for OOB)
- Rich I/O: 4 Intel 2.5GbE, 6 COM, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0
- Typically supports 5-Year CPU Life Cycle Until Q1’30 (Based on Intel IOTG Roadmap)
- Support M2A-OOB
System
- Processor
- Intel® Core™ Ultra LGA 1851 Socket Processors, TDP support up to 125W Intel® Core™ Ultra 9 285 (24 Cores, 36M Cache, up to 5.6 GHz); 65W Intel® Core™ Ultra 9 285T (24 Cores, 36M Cache, up to 5.4 GHz); 35W Intel® Core™ Ultra 7 265 (20 Cores, 30M Cache, up to 5.3 GHz); 65W Intel® Core™ Ultra 7 265T (20 Cores, 30M Cache, up to 5.3 GHz); 35W Intel® Core™ Ultra 5 245 (14 Cores, 24M Cache, up to 5.1 GHz); 65W Intel® Core™ Ultra 5 245T (14 Cores, 24M Cache, up to 5.1 GHz); 35W Intel® Core™ Ultra 5 225 (10 Cores, 20M Cache, up to 4.9 GHz); 65W Intel® Core™ Ultra 5 225T (10 Cores, 20M Cache, up to 4.9 GHz); 35W
- Chipset
- [ARS630-W880] Intel® W880 Chipset [ARS630-Q870] Intel® Q870 Chipset
- Memory
- [ARS630-W880] Four 288-pin UDIMM up to 256GB (ECC/Non-ECC) [ARS630-W880] Dual Channel DDR5 up to 5600 MHz [ARS630-W880] *Speed support list follow User’s Manual [ARS630-Q870] Four 288-pin UDIMM up to 256GB (Non-ECC) [ARS630-Q870] Dual Channel DDR5 up to 5600 MHz [ARS630-Q870] *Speed support list follow User’s Manual
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- Intel® UHD Graphics 700 series
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA 2 x DP++ 1 x HDMI 2.0a VGA: resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2304 @ 60Hz HDMI: resolution up to 4096x2160 @ 24Hz
- Quad Displays
- VGA + 2 DP++ + HDMI
Expansion
- Interface
- 2 x PCIe x16 (Gen 5, 16 or 8+8) -Support PCIE1/PCIE4 : single at x16(PCIE1) -Support PCIE1/PCIE4 : dual at x8 (PCIE1)/x8 (PCIE4) -Support PCIE1 : Riser card x16 or x8/x8 selected by Jumper 1 x PCIE x4 (Gen 4, x1, open edge slot) 3 x PCIe x4 (Gen 4, open edge slot) 1 x PCI
- M.2
- 1 x M.2 2242/2260/2280 M key (PCIe x4 Gen5 NVMe) 1 x M.2 2242/2260/2280 M key (PCIe x4 Gen4 NVMe, SATA) 1 x M.2 A key for M2-OOB
Audio
- Audio Codec
- Realtek ALC888S
Ethernet
- Controller
- [ARS630-W880] 1 x Intel® I226-LM [ARS630-W880] 1 x Intel® I210-AT (co-lay I226-V) [ARS630-W880] 2 x Intel® I226-V [ARS630-Q870] 1 x Intel® I226-LM [ARS630-Q870] 1 x Intel® I210-AT (co-lay I226-V)

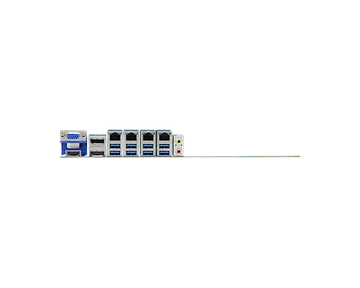

Rear I/O
- Ethernet
- [ARS630-W880] 3 x 2.5GbE (RJ-45) [ARS630-W880] 1 x 1GbE (RJ-45, opt. 2.5GbE) [ARS630-Q870] 1 x 2.5GbE (RJ-45) [ARS630-Q870] 1 x 1GbE (RJ-45, opt. 2.5GbE)
- USB
- 4 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1
- Display
- 1 x VGA 2 x DP++ 1 x HDMI
- Audio
- 1 x Line-out 1 x Mic-in 1 x Line-in (opt.)
Internal I/O
- Serial
- 2 x RS-232/422/485 4 x RS-232
- USB
- 2 x USB 3.2 Gen1 1 x USB 2.0 Vertical Type A 2 x USB 2.0 Pin Header (2.54mm pitch)
- Audio
- 1 x Front Audio 1 x S/PDIF
- SATA
- 4 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
- DIO
- 4-IN / 8-OUT DIO
- SMBus
- 1 x SMBus
- PS/2
- 1 x PS/2 (2.54mm pitch)
- eSPI
- 1 x eSPI
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM 2.0
Power
- Type
- ATX
- Connector
- 8-pin ATX 12V power 24-pin ATX power
- Consumption
- TBD
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit Windows 11 IoT Enterprise 64-bit
- Linux
- Linux
Environment
- Temperature
- Operating: -5 to 65°C Storage: -30 to 60°C with RTC Battery; -40 to 85°C without RTC Battery
- Humidity
- Operating: 5 to 95% RH Storage: 5 to 95% RH
- MTBF
- TBD
Mechanism
- Dimensions
- ATX Form Factor 305mm (12") x 244mm (9.6")
- Height
- PCB: 1.6mm Top Side: 33.3mm Bottom Side: 4mm
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS, UKCA, LVD, KC
Packing List
- Packing List
- · 1 ARS630 motherboard · 1 COM port cables (Length: 300mm, 2 x COM ports) · 1 Serial ATA data cable (Length: 500mm) · 1 I/O shield · 1 M.2 screw/standoff
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| ARS630-W880 | 770-ARS6301-000G | Intel® W880 Chipset, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, 4 SATA 3.0, TPM 2.0, 4 2.5GbE LAN |
| ARS630-W880 | 770-ARS6301-100G | Intel® W880 Chipset, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, 4 SATA 3.0, TPM 2.0, 1 GbE LAN, 3 2.5GbE LAN |
| ARS630-Q870 | 770-ARS6301-200G | Intel® Q870 Chipset, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, 4 SATA 3.0, TPM 2.0, 2 2.5GbE LAN |
| ARS630-Q870 | 770-ARS6301-300G | Intel® Q870 Chipset, 4 USB 3.2 Gen2, 6 USB 3.2 Gen1, 3 USB 2.0, 4 SATA 3.0, TPM 2.0, 1 GbE LAN, 1 2.5GbE LAN |
| Item Name | Part Number | Description |
|---|---|---|
| USB 2.0 port cable | A81-001066-016G | Length: 350/398mm |
| USB 3.2 Gen1 port cable | A81-001196-023G | Length: 320mm |
| COM port cable | A81-015026-023G | Length: 300mm, 2 x COM ports |
| Serial ATA data cable | 332-553001-005G A81-002128-017G | Length: 500mm, W/LOCK Length: 500mm, W/LOCK, 90D |
| Thermal solution | A71-101136-000G A71-101137-000G A71-101145-000G | For 35W, Height: 29.39mm For 65W, Height: 46mm For 95W/125W, Height: 110mm |
| DP to HDMI Dongle | 612-D2H13M-000G | |
| M.2-COM4 | 770-M2COM1-000G | M.2 serial port module |
| M.2-2LAN | 770-M22LN2-000G | M.2 LAN port module |
| M.2-2PSE | 770-M22PS2-000G | M.2 PSE module |
