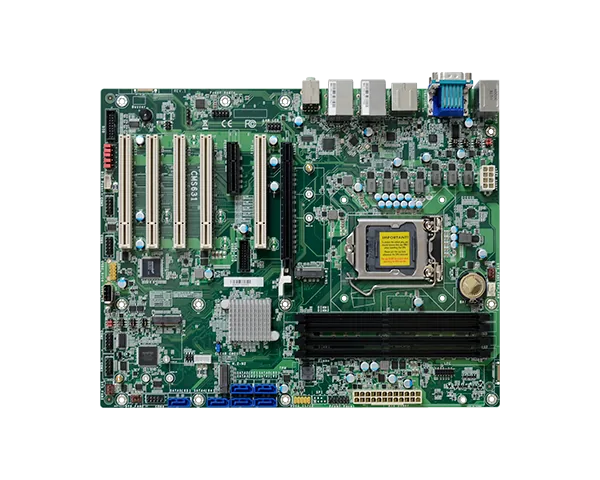

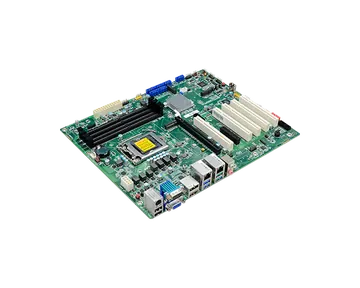

CMS631-Q470E/H420E
ATX, 10th Gen Intel® Core™, 2 DDR4 UDIMM, 1 PCIe x16, 1 PCIe x4, 5 PCI, 1 M.2 M key, 1 M.2 E key, 2 LAN, 6 COM, USB 3.2 Gen2, USB 3.2 Gen1, USB 2.0, 1 VGA, 1 HDMI, 1 DP++
- 10th Gen Intel® Core Processors
- Q470E: 2 DDR4 UDIMM up to 128GB / H420E: 2 DDR4 UDIMM up to 64GB
- Multiple Displays: Q470E: VGA + DP++ + HDMI / H420E: VGA + DP++, VGA + HDMI, DP++ + HDM
- Supports 4K/ 2K resolution
- Multiple Expansion: 1 PCIe x16, 1 PCIe x4, 5 PCI, 1 M.2 M key, 1 M.2 E key
- Rich I/O: 2 Intel GbE, 6 COM, Q470E: 13 USB / H420E: 10 USB
- 10-Year CPU Life Cycle Support Until Q2' 30 (Based on Intel IOTG Roadmap)
- Support EXT-OOB (Lite)
Főbb jellemzők
Tanúsítványok
#EXT-OOB (Lite)
#Windows 11
#Intel
#Fanless Design
#4K2K Display
#PCIe x16
#Windows
#Linux
#HDMI
#VGA
#DP
#Multiple Expansion
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#UKCA Certification
Főbb jellemzőkKey features
- 10th Gen Intel® Core Processors
- Q470E: 2 DDR4 UDIMM up to 128GB / H420E: 2 DDR4 UDIMM up to 64GB
- Multiple Displays: Q470E: VGA + DP++ + HDMI / H420E: VGA + DP++, VGA + HDMI, DP++ + HDM
- Supports 4K/ 2K resolution
- Multiple Expansion: 1 PCIe x16, 1 PCIe x4, 5 PCI, 1 M.2 M key, 1 M.2 E key
- Rich I/O: 2 Intel GbE, 6 COM, Q470E: 13 USB / H420E: 10 USB
- 10-Year CPU Life Cycle Support Until Q2' 30 (Based on Intel IOTG Roadmap)
- Support EXT-OOB (Lite)
System
- Processor
- 10th Generation Intel® LGA 1200 Socket Processors, TDP support up to 125W Intel® Core™ i9-10900E (10 Cores, 20M Cache, up to 4.7 GHz); 65W Intel® Core™ i9-10900TE (10 Cores, 20M Cache, up to 4.5 GHz); 35W Intel® Core™ i7-10700E (8 Cores, 16M Cache, up to 4.5 GHz); 65W Intel® Core™ i7-10700TE (8 Cores, 16M Cache, up to 4.4 GHz); 35W Intel® Core™ i5-10500E (6 Cores, 12M Cache, up to 4.2 GHz); 65W Intel® Core™ i5-10500TE (6 Cores, 12M Cache, up to 3.7 GHz); 35W Intel® Core™ i3-10100E (4 Cores, 8M Cache, up to 3.8 GHz); 65W Intel® Core™ i3-10100TE (4 Cores, 8M Cache, up to 3.6 GHz); 35W Intel® Pentium® G6400E (2 Cores, 4M Cache, 3.8 GHz); 58W Intel® Celeron® G5900E (2 Cores, 2M Cache, 3.2 GHz); 58W Intel® Celeron® G5900TE (2 Cores, 2M Cache, 3.0 GHz); 35W
- Chipset
- [CMS631-Q470E] Intel® Q470E Chipset [CMS631-H420E] Intel® H420E Chipset
- Memory
- [CMS631-Q470E] Four 288-pin Non-ECC UDIMM up to 128GB [CMS631-Q470E] Dual Channel DDR4 2400/2666/2933MHz [CMS631-H420E] Two 288-pin Non-ECC UDIMM up to 64GB [CMS631-H420E] Dual Channel DDR4 2400/2666/2933MHz
- BIOS
- AMI
Graphics
- Controller
- Intel® HD Gen 9 Graphics
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA, VGA: resolution up to 1920x1200 @ 60Hz 1 x DP++, DP++: resolution up to 4096x2160 @ 60Hz 1 x HDMI 1.4b, HDMI: resolution up to 4096x2160 @ 24Hz
- Multiple Displays
- [CMS631-Q470E] VGA + DP++ + HDMI (Triple Display) [CMS631-H420E] VGA + DP++ / VGA + HDMI / DP++ + HDMI (Dual Display)
Expansion
- Interface
- 1 x PCIe x16 (Gen 3) 1 x PCIe x4 (Gen 3) 5 x PCI
- M.2
- [CMS631-Q470E] 1 x M.2 2242/2260/2280 M key (PCIe Gen3 x4 NVMe/SATA/Intel® Optane Memory support) [CMS631-Q470E] 1 x M.2 2242/2260/2280 M key (PCIe Gen3 x1/SATA as option, MOQ required) [CMS631-Q470E] 1 x M.2 2230 E key (PCIe Gen3 x2/USB 2.0 as option, MOQ required) [CMS631-H420E] 1 x M.2 2242/2260/2280 M key (SATA as option, MOQ required)
Audio
- Audio Codec
- Realtek ALC888
Ethernet
- Controller
- [CMS631-Q470E] 1 x Intel® I210AT PCIe (10/100/1000Mbps) [CMS631-Q470E] 1 x Intel® I219LM/I219V with iAMT12.0 (10/100/1000Mbps) (only Core i9/i7/i5 supports iAMT) [CMS631-H420E] 1 x Intel® I210AT PCIe (10/100/1000Mbps) [CMS631-H420E] 1 x Intel® I219LM/I219V (10/100/1000Mbps)

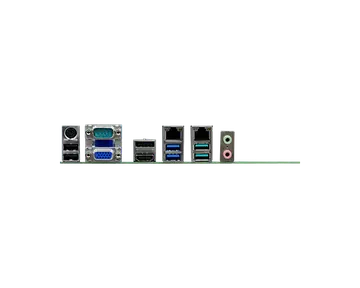

Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS-232/422/485 (RS-232 w/ power) (DB-9)
- USB
- [CMS631-Q470E] 2 x USB 3.2 Gen2 [CMS631-Q470E] 2 x USB 3.2 Gen1 [CMS631-Q470E] 2 x USB 2.0 [CMS631-H420E] 4 x USB 3.2 Gen1 [CMS631-H420E] 2 x USB 2.0
- Display
- 1 x VGA 1 x DP++ 1 x HDMI
- Audio
- 1 x Line-out 1 x Mic-in 1 x Line-in (opt., MOQ required)
Internal I/O
- Serial
- 1 x RS-232/422/485 (RS-232 w/ power) (2.54mm pitch) 4 x RS-232 (2.54mm pitch)
- USB
- [CMS631-Q470E] 2 x USB 3.2 Gen 1 [CMS631-Q470E] 4 x USB 2.0 (2.54mm pitch, colay vertical Type A, opt.: MOQ required) [CMS631-Q470E] 1 x USB 2.0 vertical Type A [CMS631-H420E] 2 x USB 3.2 Gen 1 [CMS631-H420E] 2 x USB 2.0 (2.54mm pitch, colay vertical Type A, opt.: MOQ required)
- Audio
- 1 x Front Audio Header 1 x S/PDIF
- SATA
- [CMS631-Q470E] 6 x SATA 3.0 (up to 6Gb/s) [CMS631-Q470E] one SATA port share with M.2 M-key [CMS631-Q470E] RAID 0/1/5/10 [CMS631-H420E] 4 x SATA 3.0 (up to 6Gb/s) [CMS631-H420E] one SATA port share with M.2 M-key
- DIO
- 1 x 16-bit DIO
- LPC
- 1 x LPC Supports LPC EXT-RS232/RS485 module
- SMBus
- 1 x SMBus
- PS/2
- 1 x PS/2 (mini-DIN-6)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Infineon TPM2.0 (opt., MOQ required)
Power
- Type
- ATX
- Connector
- 8-pin ATX 12V power 24-pin ATX power
- Consumption
- Typical: i9-10900K: 3.3V @ 0.13A (0.429W); 5V @ 0.7A (3.5W); 12V @ 0.44A (5.28W) Max.: i9-10900K: 3.3V @ 0.18A (0.594W); 5V @ 1.59A (7.95W); 12V @ 14.22A (170.64W)
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit Windows 11 GAC
- Linux
- Linux Ubuntu 20.04
Environment
- Temperature
- Operating: -5 to 65°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- [CMS631-Q470E] 504,168 hrs @ 25°C ; 278,849 hrs @ 45°C ; 172,277 hrs @ 60°C ; 146,454 hrs @ 65°C [CMS631-Q470E] Calculation Model: Telcordia Issue 4 [CMS631-Q470E] Environment: GB, GC - Ground Benign, Controlled [CMS631-H420E] 521,024 hrs @ 25°C ; 292,119 hrs @ 45°C ; 181,960 hrs @ 60°C ; 155,038 hrs @ 65°C [CMS631-H420E] Calculation Model: Telcordia Issue 4 [CMS631-H420E] Environment: GB, GC - Ground Benign, Controlled
Mechanism
- Dimensions
- ATX Form Factor 305mm (12") x 244mm (9.6")
- Height
- PCB: 1.6mm Top Side: 37.7mm, Bottom Side: 3mm
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS, UKCA
Packing List
- Packing List
- • 1 CMS631 motherboard • 1 COM port cables (Length: 300mm, 2 x COM ports), A81-015026-023G • 1 Serial ATA data cable (Length: 500mm), 332-553001-005G • 1 I/O shield, A49-CMS631-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| CMS631-H420EC | 770-CMS6313-000G | 2 DDR4 UDIMM, 2 GbE, 2 RS-232/422/485, 6 USB 3.2 Gen1, 4 USB 2.0, 4 SATA, Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C |
| CMS631-Q470ECRM | 770-CMS6313-100G | 4 DDR4 UDIMM, 2 GbE, 1 M.2, 2 RS-232/422/485, 2 USB 3.2 Gen2, 4 USB 3.2 Gen1, 7 USB 2.0, 6 SATA, Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C |
| CMS631-H420EC | 770-CMS6313-200G | 2 DDR4 UDIMM, 2 GbE, 2 RS-232/422/485, 6 USB 3.2 Gen1, 4 USB 2.0, 4 SATA, 1 TPM 2.0, Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C |
| CMS631-Q470ECRM | 770-CMS6313-300G | 4 DDR4 UDIMM, 2 GbE, 1 M.2, 2 RS-232/422/485, 2 USB 3.2 Gen2, 4 USB 3.2 Gen1, 7 USB 2.0, 6 SATA, 1 TPM 2.0, Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C |
| CMS631-H420EC | 770-CMS6313-400G | 2 DDR4 UDIMM, 2 GbE, 1 M.2, 2 RS-232/422/485, 6 USB 3.2 Gen1, 4 USB 2.0, 3 SATA, Power 24-pin ATX/8-pin ATX 12V, -5 to 65°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB 2.0 port cable | A81-001066-016G | Length: 350/398mm |
| USB 3.1 Gen1 port cable | A81-001196-023G | Length: 320mm |
| COM port cable | A81-015026-023G | Length: 300mm, 2 x COM ports |
| Serial ATA data cable | 332-553001-005G A81-002128-017G | Length: 500mm, W/LOCK Length: 500mm, W/LOCK, 90D |
| Thermal solution | A71-101107-000G A71-101158-000G A71-101143-000G | For 35W, Height: 37.3mm For 65W, Height: 74.47mm For 95W, Height: 76.6mm |
| DP to HDMI Dongle | 612-D2H13M-000G | |
| EXT-RS232 | 770-EXTRS1-000G | 4 ports RS-232 LPC module |
| EXT-RS485 | 770-EXTRS1-100G | 4 ports RS-485 LPC module |
| M.2-COM4 | 770-M2COM1-000G | M.2 serial port module |
| M.2-2LAN | 770-M22LN2-000G | M.2 LAN port module |
| M.2-2PSE | 770-M22PS2-000G | M.2 PSE module |
