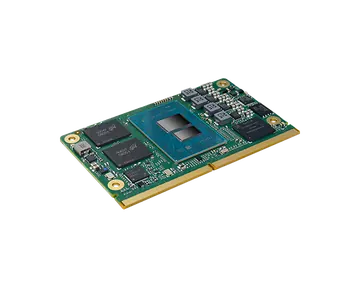

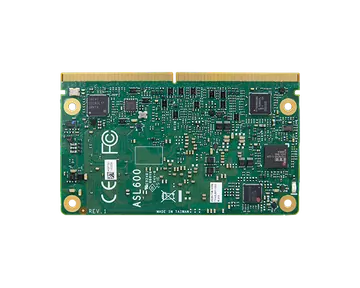

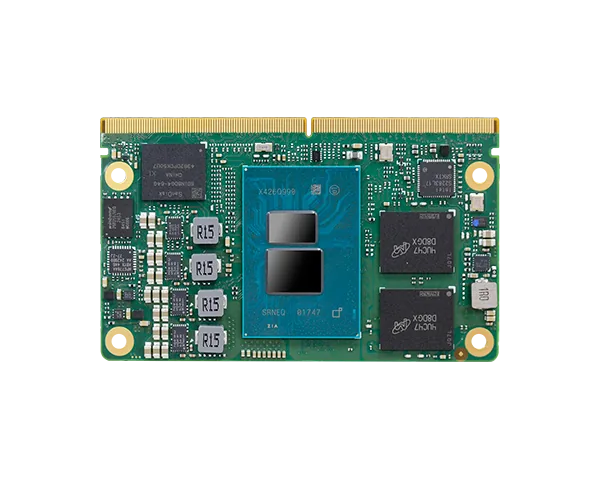

ASL600
SMARC, Intel® Atom® Amston Lake Processors, LPDDR5 onboard memory, LVDS/eDP + HDMI + DDI, 4 PCIe x1, 2 2.5GbE, 2 USB 3.2, 4 USB 2.0, 1 SATA 3.0, 64GB eMMC, -40 ~ 85°C
- Intel® Atom x7000RE series processors (Code Name: Amston Lake)
- Onboard LPDDR5 4800MHz up to 16GB
- Supports 4K/2K resolution
- Triple Displays: 1 LVDS/eDP, 1 HDMI, 1 DDI
- Multiple Expansion: Up to 4 PCIe x1 (Gen3)
- Rich I/O: 2 2.5GbE, 2 USB 3.2, 4 USB 2.0, 1 SATA 3.0
Főbb jellemzők
Tanúsítványok
#LVDS
#eDP
#LPDDR5
#eMMC
#Slim Bootloader
#Fast Resume & Low Power Standby
#Intel Atom® Twin Lake Processors
#Intel Atom® Amston Lake Processors
#4K2K Display
#Windows
#Linux
#HDMI
#DP
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
Főbb jellemzőkKey features
- Intel® Atom x7000RE series processors (Code Name: Amston Lake)
- Onboard LPDDR5 4800MHz up to 16GB
- Supports 4K/2K resolution
- Triple Displays: 1 LVDS/eDP, 1 HDMI, 1 DDI
- Multiple Expansion: Up to 4 PCIe x1 (Gen3)
- Rich I/O: 2 2.5GbE, 2 USB 3.2, 4 USB 2.0, 1 SATA 3.0
System
- Processor
- Intel® Atom x7000RE series processors (Code Name: Amston Lake) Intel® Atom Processor x7835RE, 8 Cores, 1.3~3.6GHz, 12W Intel® Atom Processor x7433RE, 4 Cores, 1.5~3.4GHz, 9W Intel® Atom Processor x7211RE, 2 Cores, 1.0~3.2GHz, 6W Intel® Processor N series (Code Name: Twin Lake) Intel® Processor N150, 4 Cores, 1.0~3.6 GHz, 6W Intel® Core™ 3 Processor N355, 8 Cores, 1.8~3.9 GHz, 15W
- Memory
- Onboard LPDDR5 4800MHz up to 16GB
- BIOS
- AMI SPI 256MHz
Graphics
- Controller
- Intel® UHD
- Feature
- DX12, Open GL 4.6, Vulkan 1.2 HW Decode: 4K60 10b 4:2:0, 4:4:4 HEVC/VP9/SCC, 4K60 10b 4:2:0 AV1 HW Encode: 4K60 10b 4:2:0, 4:4:4 HEVC/VP9/SCC
- Display
- 1 x LVDS/eDP 1 x HDMI/DDI1 1 x DDI LVDS: dual channel 1920x1200 @60Hz eDP: 4096x2160 @60Hz HDMI 1.4b: 4096x2160 @30Hz DP: 4096x2160 @60Hz
- Triple Displays
- LVDS/eDP + HDMI + DDI
Expansion
- Interface
- Up to 4x PCIex1 (Gen3) or 1x PCIex4 (available upon request) 2 x I2C 2 x CANBus 1 x SPI, 1 x eSPI/QSPI 2 x 4-wire UART; 2 x 2-wire UART 1 x 4-lane MIPI-CSI; 1 x 2-lane MIPI-CSI
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 2 x Intel® I226 series (10/100/1000/2500Mbps)
I/O
- USB
- 2 x USB 3.2 4 x USB 2.0
- SATA
- 1 x SATA 3.0 (up to 6Gb/s) BOM option 1 PCIe x1 (available upon request)
- eMMC
- 1 x 64GB eMMC 5.1
- GPIO
- 1 x 14-pin GPIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM 2.0
Power
- Type
- 5Vdc, +/-5%
- Consumption
- TBD
OS Support
- Microsoft
- Windows 11/10 IoT Enterprise 64-bit
- Linux
- Linux
Environment
- Temperature
- Operating: -40 ~ 85°C Storage: -40 ~ 85°C
- Humidity
- Operating: 10 ~ 90% RH Storage: 10 ~ 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- SMARC V2.2 82mm (3.22") x 50mm (1.96")
- Compliance
- SGET SMARC Specifications 2.2
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- · Heatspreader A71-808370-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| ASL600-TC16-7835RE | 770-ASL6001-000G | Intel® Atom Processor x7835RE, 8 Cores, 12W, 16GB Memory, 64GB eMMC, LVDS, TPM 2.0, Heatspreader Thermal, -40 to 85°C. |
| ASL600-TC86-7433RE | 770-ASL6001-100G | Intel ® Atom Processor x7433RE, 4 Cores, 9W, 8GB Memory, 64GB eMMC, LVDS, TPM 2.0, Heatspreader Thermal, -40 to 85°C. |
| ASL600-TC46-7211RE | 770-ASL6001-200G | Intel® Atom Processor x7211RE, 2 Cores, 6W, 4GB Memory, 64GB eMMC, LVDS, TPM 2.0, Heatspreader Thermal, -40 to 85°C. |
| Item Name | Part Number | Description |
|---|---|---|
| Cooler | A71-108311-000G | |
| SMX331 SMARC carrier board kit | 770-SMX3311-000G |
