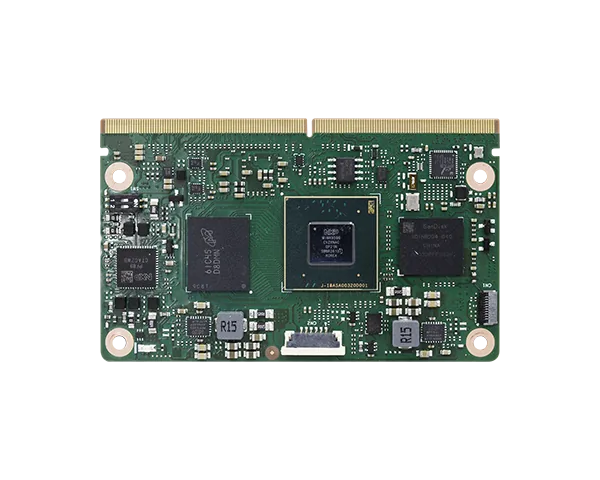

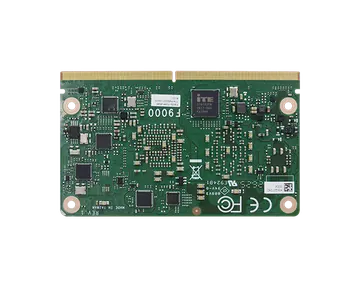

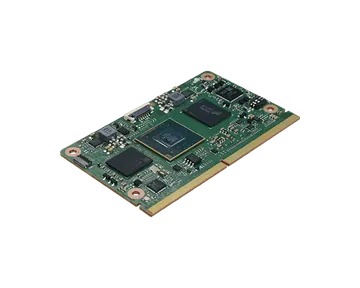

F9000
SMARC, NXP i.MX95 Processor, LPDDR5 Memory Down, 1 Dual channel LVDS, 1 HDMI, 2 PCIe 3.0, 1 SDIO 3.0, 1 I2C, 2 SPI, 4 UART, 2 CAN bus, 1 MIPI CSI, 2 GbE LAN, 1 USB OTG, 1 USB 3.2, 5 USB 2.0, -40 to 85°C
- NXP i.MX95 series up to 6 Arm Cortex A55 cores
- 4/8GB LPDDR5 Memory Down
- Display Options: 1 Dual channel LVDS or 1 HDMI
- Multiple Expansion: 2 PCIe 3.0, 1 SDIO 3.0, 1 I2C, 2 SPI, 4 UART, 2 CAN bus, 1 MIPI CSI
- Rich I/O: 2 GbE LAN, 1 USB OTG, 1 USB 3.2, 5 USB 2.0
Főbb jellemzők
Tanúsítványok
#LVDS
#LPDDR5
#NXP® i.MX 8M mini Series
#eMMC
#NXP i.MX95 Series
#1G Ethernet
#Linux
#HDMI
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- NXP i.MX95 series up to 6 Arm Cortex A55 cores
- 4/8GB LPDDR5 Memory Down
- Display Options: 1 Dual channel LVDS or 1 HDMI
- Multiple Expansion: 2 PCIe 3.0, 1 SDIO 3.0, 1 I2C, 2 SPI, 4 UART, 2 CAN bus, 1 MIPI CSI
- Rich I/O: 2 GbE LAN, 1 USB OTG, 1 USB 3.2, 5 USB 2.0
System
- Processor
- NXP i.MX95 series up to 6 Arm Cortex A55 cores, up to 2.0GHz
- Memory
- 4/8GB LPDDR5-6400 Memory Down
Graphics
- Controller
- Arm® Mali™ G310 GPU
- Feature
- OpenGL ES 3.2 Vulkan 1.2, OpenCL 3.0
- Display
- 1 x Dual channel LVDS (default) 1 x HDMI (BOM option)
Expansion
- Interface
- 2 x PCIe Gen3 x1 1 x SDIO 3.0 1 x I2C 2 x SPI 2 x 4-wire UART and 2 x 2-wire UART 2 x CAN bus 1 x 4-lanes MIPI CSI (default), or optional 1x 2-lanes MIPI CSI
Audio
- Interface
- 1 x I2S
Ethernet
- Controller
- 2 x 10/100/1000Mbps GbE
I/O
- USB
- 1 x USB OTG (default), or 1 x USB 2.0 1 x USB3.2 Gen2 x1 4 x USB 2.0 thru USB hub
- eMMC
- Supports eMMC 5.1, BGA-153 Ball up to 128GB
- GPIO
- 1 x 14-bit GPIO
Security
- FTPM
- TPM 2.0
Power
- Type
- 5V DC-In
- Consumption
- TBD
OS Support
- OS Support
- Linux Yocto
Environment
- Temperature
- Operating: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- SMARC form factor 82 mm (3.23") x 50 mm (1.97")
- Compliance
- SMARC specification revision 2.2 compliance
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- • 1 F9000 board • Cooler, A71-108320-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| F9000-TC86-9596 | 770-F900001-000G | 6 CPU Cores, 8GB LPDDR5 Memory Down, LVDS, TPM 2.0, 5 USB 2.0, 64GB eMMC, Operating Temp.: -40 to 85°C |
| Item Name | Part Number | Description |
|---|---|---|
| SMARC Carrier Board SMX331 | ||
| Heat spreader |
