BT9A3

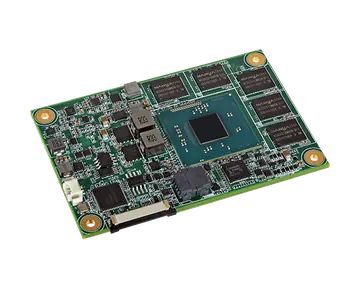

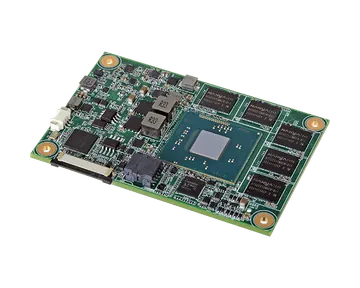

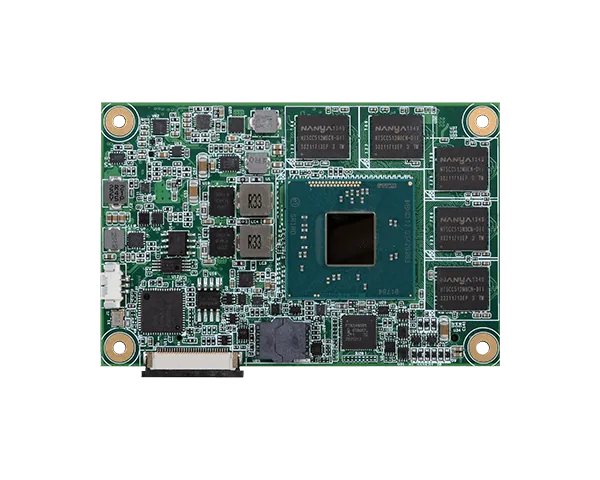

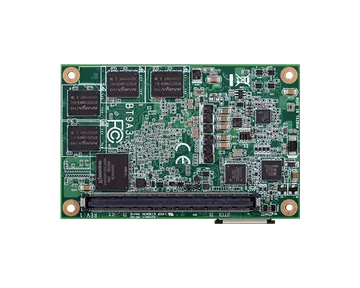

BT9A3 uses the low-power Intel® Atom™ processor E3800 SoC product family which primarily aimed at 24-hour operating intelligent systems, such as ATMs, POS terminals, and smart grid. The onboard graphics features one DDI (HDMI/DVI/DP) and one LVDS display interfaces that support high resolution.
- Intel Atom® E3800 Processor Series
- Rich I/O: 1 Intel GbE, 1 USB 3.0, 8 USB 2.0
- Multiple expansions: 3 PCIe x1, 2 SATA 2.0
- 1 LVDS, 1 DDI (HDMI/DVI/DP)
- Single Channel DDR3L 1333MHz ECC Memory Down up to 4GB
- 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Intel
#Fanless Design
#Compact Size
#Windows
#HDMI
#Multiple Expansion
#DDR3L
#Low Power Consumption
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- Intel Atom® E3800 Processor Series
- Rich I/O: 1 Intel GbE, 1 USB 3.0, 8 USB 2.0
- Multiple expansions: 3 PCIe x1, 2 SATA 2.0
- 1 LVDS, 1 DDI (HDMI/DVI/DP)
- Single Channel DDR3L 1333MHz ECC Memory Down up to 4GB
- 15-Year CPU Life Cycle Support Until Q4' 28 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel Atom® Processor E3800 Series, BGA 1170 Intel Atom® E3845, Quad Core, 2M Cache, 1.91GHz, 10W Intel Atom® E3827, Dual Core, 1M Cache, 1.75GHz, 8W Intel Atom® E3815, Single Core, 0.5M Cache, 1.46GHz, 5W Intel® Celeron® J1900, Quad Core, 2M Cache, 2GHz (2.41GHz), 10W Intel® Celeron® N2930, Quad Core, 2M Cache, 1.83GHz (2.16GHz), 7.5W
- Memory
- 2GB/4GB DDR3L 1333MHz ECC Memory Down Single Channel
- BIOS
- AMI SPI 64Mbit
Graphics
- Controller
- OpenGL 4.0, DirectX 11, OpenCL 1.2 HW Decode: AVC/H.264, MPEG2, VC1, WMV9, JPEG/MJPEG, HEVC/H.264, VP8, VP9, MVC HW Encode: AVC/H.264, JPEG/MJPEG, HEVC/H.264, VP8, VP9, MVC
- Display
- 1 x DDI (HDMI/DVI/DP) 1 x LVDS LVDS: single channel 24-bit, resolution up to 1366x768 @ 60Hz HDMI/DVI: resolution up to 1920x1080 @ 60Hz DP: resolution up to 2560x1600 @ 60Hz
Expansion
- Interface
- 3 x PCIe x1 (Gen 3) 1 x LPC 1 x I2C 1 x SMBus 2 x Serial (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I210 (10/100/1000Mbps)
I/O
- USB
- 1 x USB 3.0 8 x USB 2.0
- SATA
- 2 x SATA 2.0
- eMMC
- 1 x 4GB/8GB/16GB/32GB eMMC (available upon request)
- DIO
- 1 x 8-bit DIO
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Power
- Type
- 4.75V~20V, 5VSB, VCC_RTC (ATX mode) 4.75V~20V, VCC_RTC (AT mode)
- Consumption
- Typical: E3845: 12V @ 0.568A (10.79W) Max.: E3845:12V @ 0.720A (13.68W)
OS Support
- OS Support
- Windows 7 Ultimate x86 & SP1 (32-bit) Windows 7 Ultimate x64 & SP1 (64-bit) Windows 8.1 Enterprise x86 (32-bit) Windows 8.1 Enterprise x64 (64-bit) Windows 10 will be available upon request. Please contact DFI for more information.
Environment
- Temperature
- Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 800,542 hrs @ 25°C; 406,343 hrs @ 45°C Calculation model: Telcordia Issue 2, Method I Case 3 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- COM Express® Mini 84mm (3.30") x 55mm (2.16")
- Compliance
- PICMG COM Express® R2.1, Type 10
Standards and Certifications
- Certifications
- CE, FCC Class B, RoHS
Packing List
- Packing List
- 1 BT9A3 board 1 Heat sink: A71-011055-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| BT9A3-T24-E15 | 770-BT9A33-D00G | Fanless, Intel Atom E3815, 2GB DDR3L ECC Memory Down, 4GB eMMC, -40 to 85°C |
| BT9A3-T40-E45 | 770-BT9A33-E00G | Fanless, Intel Atom E3845, 4GB DDR3L ECC Memory Down, -40 to 85°C |
| BT9A3-B40-E45 | 770-BT9A33-I00G | Fanless, Intel Atom E3845, 4GB DDR3L ECC Memory Down, 0 to 60°C |
| BT9A3-B40-J00 | 770-BT9A33-H00G | Fanless, Intel Celeron J1900, 4GB DDR3L Memory Down, 0 to 60°C |
| BT9A3-B48-E45 | 770-BT9A33-500G | Fanless, Intel Atom E3845, 4GB DDR3L ECC Memory Down, 8GB eMMC, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| Heat spreader | A71-011052-000G | |
| COM100-B carrier board kit | 770-COM104-000G | |
| Heat sink with fan | A71-111020-000G |
