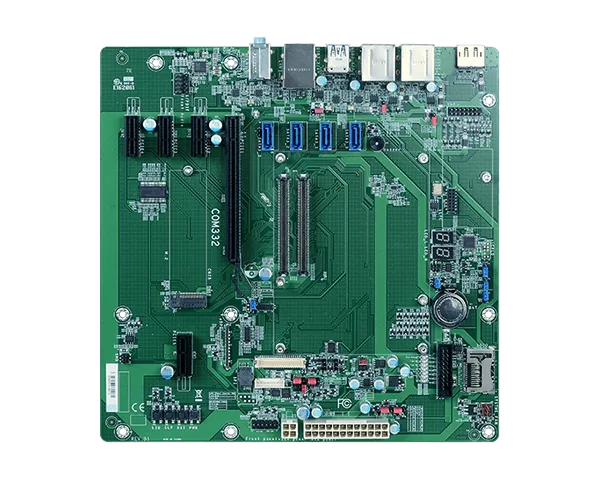

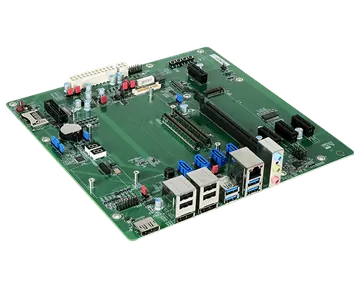

COM332-B(R.B1)
microATX, COMe Basic/Compact Modules, 1 Lan, 8 USB, 4 SATA 3.0, 1 VGA, 1 LVDS, 3 DP, 1 eDP
- COM Express® R2.1, Pin-out Type 6
- Supports Compact and Basic modules
- Multiple displays: VGA, LVDS, DP, eDP
- Rich I/O: 1 GbE, 4 USB 3.1, 4 USB 2.0
- microATX form factor
Főbb jellemzők
Tanúsítványok
#1G Ethernet
#PCIe x16
#VGA
#DP
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- COM Express® R2.1, Pin-out Type 6
- Supports Compact and Basic modules
- Multiple displays: VGA, LVDS, DP, eDP
- Rich I/O: 1 GbE, 4 USB 3.1, 4 USB 2.0
- microATX form factor
Graphics
- Display
- 1 x VGA 1 x LVDS/eDP (eDP available upon request) 3 x DP 1 x eDP/LVDS (LVDS available upon request)
Expansion
- Interface
- 1 x PCIe x16 4 x PCIe x1 1 x M.2 M Key 2280 1 x SDIO
Audio
- Audio Codec
- Realtek ALC888S-VD2-GR

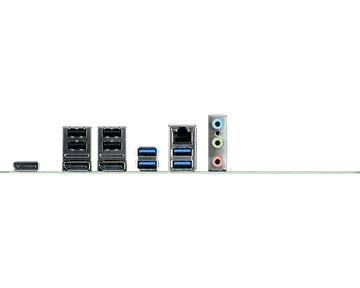

Rear I/O
- Ethernet
- 1 x GbE (RJ-45)
- USB
- 4 x USB 3.1 (Gen2) 4 x USB 2.0
- Display
- 3 x DP
- Audio
- 1 x Line-in 1 x Line-out 1 x Mic-in
Internal I/O
- Serial
- 2 x Serial Interface Connector (TX/RX)
- Display
- 1 x VGA (2.54mm) 1 x LVDS LCD Panel Connector 1 x LCD/Inverter Power 1 x eDP LCD Panel Connector
- Audio
- 1 x Audio (Line-out/Mic-in) 1 x S/PDIF
- SATA
- 4 x SATA 3.0 (up to 6Gb/s)
- DIO
- 1 x 8-bit DIO
- LPC
- 1 x LPC
- SMBus
- 1 x SMBus
Power
- Type
- 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
- Connector
- 4-pin ATX 12V power 24-pin ATX power
- RTC Battery
- CR2032 Coin Cell
Environment
- Temperature
- Operating: 0 to 60°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 488,117 hrs @ 25°C; 253,684 hrs @ 45°C; 136,621 hrs @ 60°C Calculation Model: Telcordia Issue 2, Method Case 3 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- microATX Form Factor 244mm (9.6") x 244mm (9.6")
- Compliance
- PICMG COM Express® R2.1, Type 6 Basic, Compact Modules
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- 1 COM332-B(R.B1) board 1 Serial ATA data cable (Length: 500mm): 332-553001-005G 1 VGA cable: A81-012000-000G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| COM332-B(R.B1) | 770-CM3322-000G | Active Thermal, 1 GbE, 4 USB 3.1, 4 USB2.0, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| Serial ATA data cable (Length: 500mm) | 332-553001-005G | |
| LPC EXT-RS232 module (4 x RS232 ports) | 770-EXTRS1-000G | |
| LPC EXT-RS485 module (4 x RS485 ports) | 770-EXTRS1-100G | |
| I/O shield | A49-COM332-010G |
