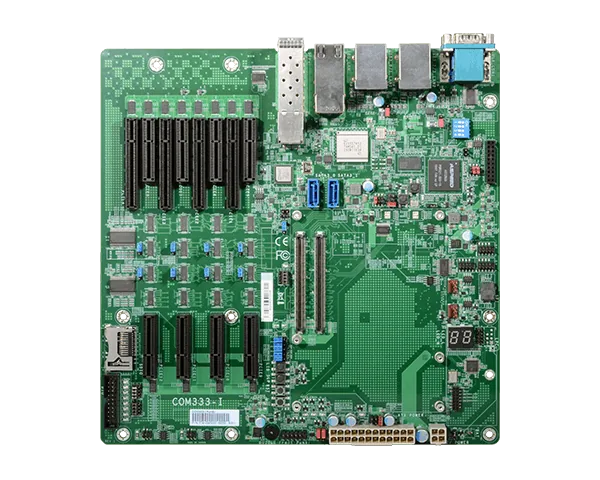

COM333-I
microATX, COMe Basic/Compact Modules, 4 PCIe x8, 4 10GLan, 2 Lan, 4 USB 3.0, 2 SATA 3.0
- COM Express® R3.0, Pin-out Type 7
- Supports Compact and Basic modules
- Multiple expansion: 8 PCIe x4 or 4 PCIe x8, 2 SATA 3.0
- Rich I/O: 2 GbE, 4 10Gbase-KR, 4 USB 3.0/2.0, 1 COM
- microATX form factor
Főbb jellemzők
#1G Ethernet
#VGA
#Multiple Expansion
#10G Ethernet
#DDR4
Főbb jellemzőkKey features
- COM Express® R3.0, Pin-out Type 7
- Supports Compact and Basic modules
- Multiple expansion: 8 PCIe x4 or 4 PCIe x8, 2 SATA 3.0
- Rich I/O: 2 GbE, 4 10Gbase-KR, 4 USB 3.0/2.0, 1 COM
- microATX form factor
Expansion
- Interface
- B1: 2 x PCIe x4 or 1 x PCIe x8 (Gen 3) B2: 2 x PCIe x4 or 1 x PCIe x8 (Gen 3) B3: 2 x PCIe x4 or 1 x PCIe x8 (Gen 3) B4: 2 x PCIe x4 or 1 x PCIe x8 (Gen 3)

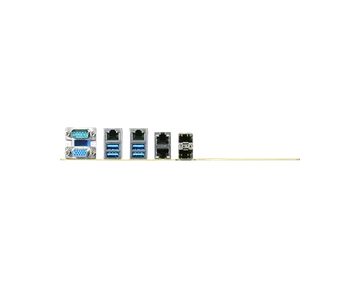

Rear I/O
- Ethernet
- 4 x 10GbE LAN (2 x SFP+, 2 x RJ-45) by 10GBASE-KR interface 2 x 1GbE LAN (RJ-45) (one from module; another from BMC for remote management)
- Serial
- 1 x RS-232 (DB-9) (supports by BMC which default is debug port and may switch to normal RS-232)
- USB
- 4 x USB 3.0/2.0
Internal I/O
- Serial
- 2 x Serial Interface Connectors (TX/RX) (2.0mm pitch)
- SATA
- 2 x SATA 3.0 (up to 6Gb/s)
- DIO
- 1 x 8-bit DIO (4 input, 4 output) 1 x SDIO (conditionally available)
- LPC
- 1 x LPC
- SMBus
- 1 x SMBus
- I2C
- 1 x I2C
Power
- Connector
- 4-pin ATX 12V power 24-pin ATX power
- Battery
- CR2032 Coin Cell
Environment
- Temperature
- Operating: 0 to 60°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 246,013 hrs @ 25°C; 121,445 hrs @ 45°C; 68,565 hrs @ 60°C 46,970 hrs @ 70°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- microATX Form Factor 244mm (9.6") x 244mm (9.6")
- Compliance
- PICMG COM Express® R3.0, Type 7 Basic, Compact Modules
Packing List
- Packing List
- 1 COM333-I board 1 Serial ATA data cable (Length: 500mm): 332-553001-005G Standoff (M2.5*12) (for compact size module): A33-525019-A20G
BMC
- Features
- 1. IPMI 2.0 2. Web Browser Support 3. Web Interface 4. iKVM (keyboard, video, and mouse) 5. Virtual Media 6. 3rd Party Authentication 7. Firmware Update 8. SMASH/CLP 9. WS-MAN 10. Network Service
- Processor
- AST2500
- SDRAM
- DDR4-2400 1200MHz 8Gb memory down
- Display
- Through BMC to convert VGA signal VGA: resolution up to 1920 x 1200 x 32bpp (share with SOC 16MB memory)
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| COM333-I (R.A) | 770-CM3331-000G | Active Thermal, 2 GbE, 4 10GbE, 4 USB 3.0/2.0, 0 to 60°C |
| Item Name | Part Number | Description |
|---|---|---|
| I/O shield | A49-COM333-000G | |
| LPC EXT-RS232 module (4 x RS232 ports) | 770-EXTRS1-000G | |
| Serial ATA data cable (Length: 500mm) | 332-553001-005G | |
| LPC EXT-RS485 module (4 x RS485 ports) | 770-EXTRS1-100G |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
