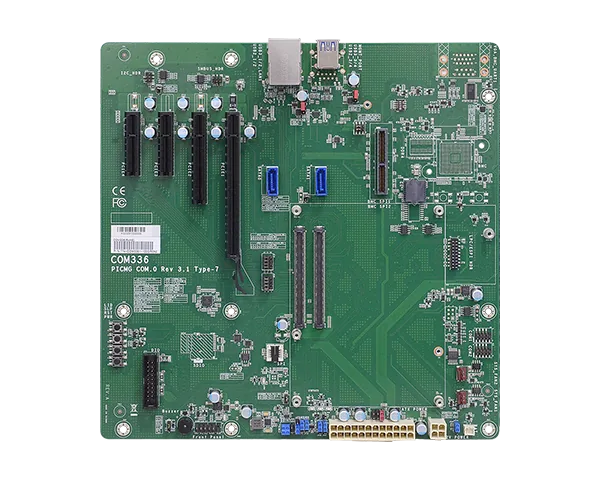

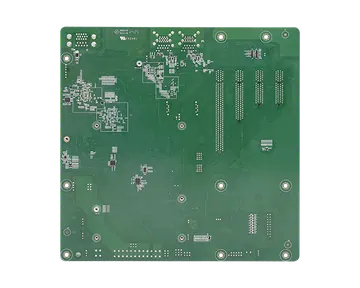

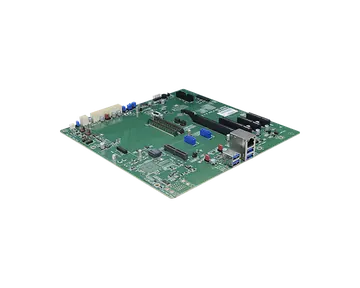

COM336
microATX, PICMG COM Express® R3.1, Type 7 basic & compact modules, 1 VGA from BMC, 1 PCIe x8, 2 PCIe x4, 1 PCIe x16, 1 SDIO, 1 10G LAN, 2 1G LAN, 4 USB 3.2 type A, 4 USB 2.0, 2 SATA 3.0
- PICMG COM Express® R3.1, Type 7 basic & compact modules
- 1 CEI 10Gb LAN Mini MEZZ slot, support 10GBASE-KR Ethernet MAC Speed
- Multiple Expansion: 1 PCIe x8, 2 PCIe x4, 1 PCIe x16, 1 SDIO
- Rich I/O: 1 10G LAN, 2 1G LAN, 4 USB 3.2 type A, 4 USB 2.0, 2 SATA 3.0
Főbb jellemzők
Tanúsítványok
#PCIe x16
#VGA
#Multiple Expansion
#10G Ethernet
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- PICMG COM Express® R3.1, Type 7 basic & compact modules
- 1 CEI 10Gb LAN Mini MEZZ slot, support 10GBASE-KR Ethernet MAC Speed
- Multiple Expansion: 1 PCIe x8, 2 PCIe x4, 1 PCIe x16, 1 SDIO
- Rich I/O: 1 10G LAN, 2 1G LAN, 4 USB 3.2 type A, 4 USB 2.0, 2 SATA 3.0
Expansion
- Interface
- 1 x PCIe x8 2 x PCIe x4 1 x PCIe x16 1 x SDIO

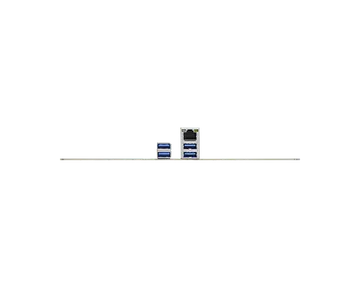

I/O
- Ethernet
- 1 x CEI 10Gb LAN Mini MEZZ slot, support 10GBASE-KR Ethernet MAC Speed 2 x 1GbE LAN (RJ-45) (one from module; another from BMC for remote management)
- USB
- 4 x USB 3.2 type A 4 x USB 2.0
Internal I/O
- Serial
- 1 x Serial Interface Connector (TX/RX)
- Display
- 1 x VGA from BMC
- SATA
- 2 x SATA 3.0
- DIO
- 1 x 8-bit DIO
- LPC
- 1 x LPC
- SMBus
- 1 x SMBus
- I2C
- 1 x I2C
Power
- Type
- 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
- Connector
- 4-pin ATX 12V power 24-pin ATX power
- RTC Battery
- CR2032 Coin Cell
Environment
- Temperature
- Operating: -20 to 70°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- microATX Form Factor 244mm (9.6") x 244mm (9.6")
- Compliance
- PICMG COM Express® R3.1, Type 7 basic & compact modules
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- • 1 COM336 board • 1 Serial ATA data cable (Length: 500mm), 332-553001-005G • Standoff (M2.5*12), A33-525019-A20G
BMC
- Processor
- AST2500 (non-BMC sku optional by request)
- SDRAM
- 8Gb memory down DDR4 2400 512M x16 SDRAM
- Display
- Through BMC to convert VGA signal VGA display resolution up to 1920x1200
- Ethernet
- RTL8211F LAN PHY Support 10/100/1000M Ethernet MAC Speed RJ45 x1
- UART
- COM port protocol: RS232 Connector type: DB9
- SMBus
- (for slave) From COMe BTB connector reserve pin
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| COM336 | 770-COM3361-000G | BMC, 10G LAN, 2 GbE, 4 USB 3.2, 4 USB 2.0, ATX/AT Power, Active thermal, -20 to 70°C |
| COM336 | 770-COM3361-100G | 10G LAN, 2 GbE, 4 USB 3.2, 4 USB 2.0, ATX/AT Power, Active thermal, -40 to 85°C |
| MMZ10G-X5574 | 770-MMZ10G1-000G | X557-AT4 LAN PHY, LAN connector: RJ45 x4 |
| MMZ10G-NSFP | 770-MMZ10G1-200G | Native SFP+ from module LAN PHY, LAN connector: SFP+ x4 |
| Item Name | Part Number | Description |
|---|---|---|
| Serial ATA data cable | 332-553001-005G | Length: 500mm |
| LPC EXT-RS232 module | 770-EXTRS1-000G | 4 x RS232 ports |
