CS551

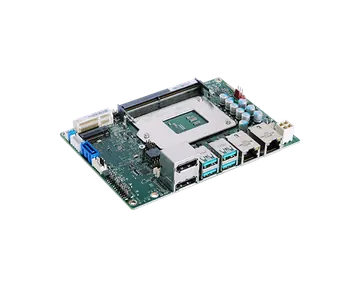

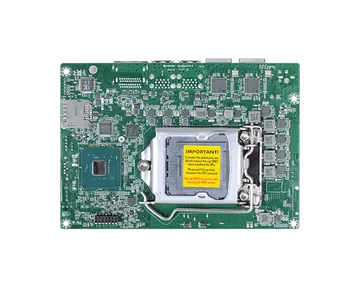

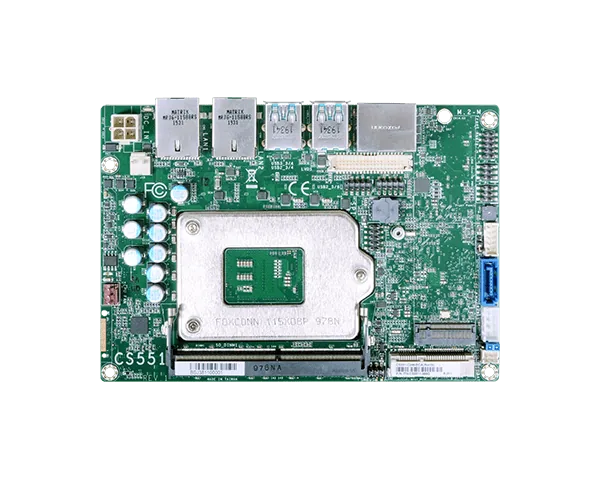

CS551, 3.5" SBC with 8th/9th Gen Intel® i3/i5/i7 or Pentium®/Celeron®, designed with auto warm-up, downsized desktop platform which is ideal for Traffic flow analysis/harsh environments/AI vision/IoT applications
- 9th/8th Gen Intel® Core™ with Intel® C246
- 1 DDR4 SODIMM up to 32GB
- Three independent displays: LVDS + DP++ + DP++
- DP++ resolution up to 4096x2304 @ 60Hz
- Multiple expansion: 1 M.2 M Key, 1 Mini PCIe
- Rich I/O: 2 Intel GbE, 4 USB 3.1, 2 USB 2.0
Főbb jellemzők
Tanúsítványok
#IoT
#Intel
#Mini PCIe
#Fanless Design
#4K2K Display
#Windows
#Linux
#DP
#DDR4
#RoHS Certification
#CPU Auto Warm-up
Főbb jellemzőkKey features
- 9th/8th Gen Intel® Core™ with Intel® C246
- 1 DDR4 SODIMM up to 32GB
- Three independent displays: LVDS + DP++ + DP++
- DP++ resolution up to 4096x2304 @ 60Hz
- Multiple expansion: 1 M.2 M Key, 1 Mini PCIe
- Rich I/O: 2 Intel GbE, 4 USB 3.1, 2 USB 2.0
System
- Processor
- 8th Gen Intel® Core™ Processors, LGA 1151 Socket Intel® Core™ i7-8700T Processor (6C/12T; Max speed 4.0 GHz; TDP 35W) Intel® Core™ i5-8500T Processor (6C/6T; Max speed 3.5GHz; TDP 35W) Intel® Core™ i3-8100T Processor (4C/4T; Max speed 3.1GHz; TDP 35W) Intel® Pentium® G5400T Processor (2C/4T; Max speed 3.1GHz; TDP 35W) Intel® Celeron® G4900T Processor (2C/2T; Max speed 2.9GHz; TDP 35W) 9th Gen Intel® Core™ Processors, LGA 1151 Socket Intel® Core™ i7-9700TE Processor (8C/8T; Max speed 3.6GHz; TDP 35W) Intel® Core™ i5-9500TE Processor (6C/6T; Max speed 3.6GHz; TDP 35W) Intel® Core™ i3-9100TE Processor (4C/4T; Max speed 3.2GHz; TDP 35W)
- Memory
- One 260-pin SODIMM up to 32GB Single Channel DDR4 2666MHz C246 with ECC Support: Intel® Core i3-8100T/9100TE/Pentium G5400T/Pentium G4900T
- BIOS
- Insyde SPI 128Mbit
Graphics
- Controller
- Intel® UHD 630 Graphics GT Series
- Feature
- OpenGL 4.6, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2 (H.262), VC1, JPEG/MJPEG, HEVC/H.265, VP8, VP9, VP10 HW Encode: AVC/H.264, MPEG2 (H.262), JPEG/MJPEG, HEVC/H.265, VP8, VP9
- Display
- 1 x LVDS 2 x DP++ LVDS: dual channel 48-bit, resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2304
- Triple Displays
- LVDS + DP++ + DP++
Expansion
- Interface
- 1 x Full-size Mini PCIe (PCIe x1 up to Gen3/USB 2.0) (C246/Q370 opt.: USB 3.1 Gen1/USB 2.0) 1 x M.2 2280 M key (C246/Q370: NVMe PCIe x4/SATA 3.0 or H310: NVMe PCIe x1, SATA 3.0) 1 x SIM slot (optional for 3G/4G module)
Audio
- Audio Codec
- Realtek ALC262
Ethernet
- Controller
- Intel® I211AT PCIe (10/100/1000Mbps) or Intel® I210IT PCIe (10/100/1000Mbps)
Rear I/O
- Ethernet
- 2 x GbE (RJ-45)
- USB
- 4 x USB 3.1 Gen2 (C246/Q370) or Gen1 (H310)
- Display

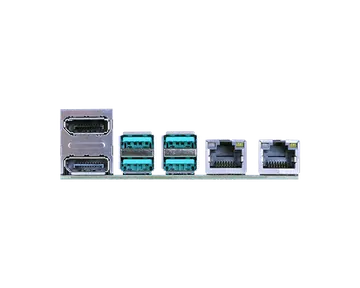

- 2 x DP++
Internal I/O
- Serial
- 1 x RS-232/422/485 (2.0mm pitch)
- USB
- 2 x USB 2.0 (2.0mm pitch)
- Display
- 1 x LVDS LCD Panel Connector 1 x LVDS Backlight
- Audio
- 1 x Audio (Line-out/Mic-in)
- SATA
- 1 x SATA 3.0 (up to 6Gb/s) 1 x SATA Power
- DIO
- 1 x 8-bit DIO
- SMBus
- 1 x SMBus
- Heater
- 1 x 12V header (wide temp. only)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- fTPM 2.0
Power
- Type
- 12VDC
- Connector
- Vertical Type Connector (4-pin) (default) DC Jack (available upon request)
- Consumption
- Typical: i7-8700T: 12V @ 0.86A (10.32Watt) Max: i7-8700T: 12V @ 5.38A (64.56Watt)
- RTC Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 10 IoT Enterprise 64-bit RS5
- Linux
- Linux
Environment
- Temperature
- Operating: -5 to 65°C for 35W/100C CPU (fanless); 35W 100C, 82C CPU (fan) -30 to 80°C for 15W TDP down/100C CPU (fanless); 35W/100C CPU (fan) *Note: A heater/polyfilm is recommended for motherboard warm up at -30°C. Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- CS551-H310-BCA: 740,203 hrs @ 25°C; 462,070 hrs @ 45°C; 305,215 hrs @ 60°C; 227,949 hrs @ 70°C CS551-H310-ECA: 742,388 hrs @ 25°C; 464,078 hrs @ 45°C; 3067,73 hrs @ 60°C; 229,188 hrs @ 70°C Calculation Model: Telcordia Issue 4 Environment: GB, GC - Ground Benign, Controlled
Mechanism
- Dimensions
- 3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02")
- Height
- PCB: 1.6mm Top Side: 25.27mm, Bottom Side: 7.68 mm
Packing List
- Packing List
- 1 CS551 board 1 COM port cable (Length: 250mm, 1 x COM port) 332-753040-000G 1 Serial ATA data cable (Length: 500mm) 332-553001-005G 1 Serial ATA power cable (Length: 250mm) A81-004041-016G 1 Heat sink (Height: 43.2mm) A71-001302-030G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| CS551-C246-BCA | 770-CS5511-000G | 1 SODIMM, 2 LAN, 1 COM, 4 USB 3.1 Gen2, 2 USB 2.0, 12V, -5 to 65°C |
| CS551-H310-BCA | 770-CS5511-100G | 1 SODIMM, 2 LAN, 1 COM, 4 USB 3.1 Gen1, 2 USB 2.0, 12V, -5 to 65°C |
| CS551-Q370-BCA | 770-CS5511-200G | 1 SODIMM, 2 LAN, 1 COM, 4 USB 3.1 Gen2, 2 USB 2.0, 12V, -5 to 65°C |
| CS551-C246-ECA | 770-CS5511-300G | 1 SODIMM, 2 LAN, 1 COM, 4 USB 3.1 Gen2, 2 USB 2.0, 12V, -30 to 80°C |
| CS551-H310-ECA | 770-CS5511-400G | 1 SODIMM, 2 LAN, 1 COM, 4 USB 3.1 Gen1, 2 USB 2.0, 12V, -30 to 80°C |
| CS551-Q370-ECA | 770-CS5511-500G | 1 SODIMM, 2 LAN, 1 COM, 4 USB 3.1 Gen2, 2 USB 2.0, 12V, -30 to 80°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB port cable | A81-001032-016G | Length: 200mm |
| Power adapter | 671-110006-100G 671-106012-000G | 100W, 12V, TDP 35W 60W, 12V, DC Jack, TDP 15W |
| 4 pin to DC jack cable | A81-004051-016G | Length: 100mm |
| Audio cable | A81-022007-016G | Length: 160mm |
| Cooler fan | A71-101303-010G | Height: 34.6mm |
| Heater | 612-KP4040-000G |
