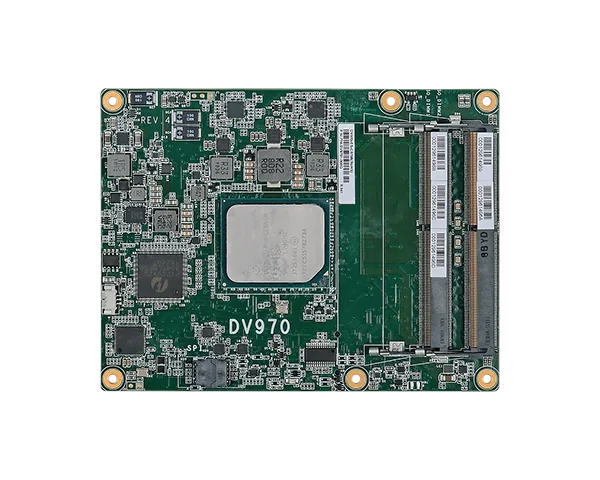

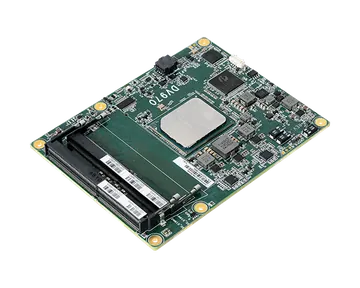

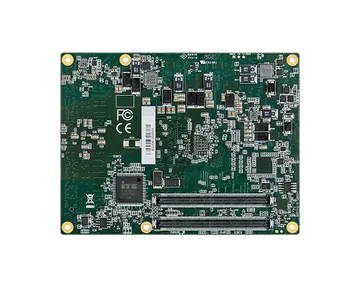

DV970
DV970, COM Express Basic with Intel Atom®, designed with 4x 10Gbase-KR which is ideal for 5G Small Cell POC/factory gateway/emerging appliances/NAS applications
- Intel Atom® C3000 Series
- Rich I/O: 1 Intel GbE, 4 10Gbase-KR, 2 USB 3.0, 4 USB 2.0
- Multiple expansion: 2 PCIe x 8, 2 SATA 3.0
- Support BMC features
- Dual channel DDR4 2400MHz SODIMM up to 64GB
- 15-Year CPU Life Cycle Support Until Q4' 32 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Intel
#5G
#Fanless Design
#Compact Size
#4K2K Display
#Windows
#Multiple Expansion
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- Intel Atom® C3000 Series
- Rich I/O: 1 Intel GbE, 4 10Gbase-KR, 2 USB 3.0, 4 USB 2.0
- Multiple expansion: 2 PCIe x 8, 2 SATA 3.0
- Support BMC features
- Dual channel DDR4 2400MHz SODIMM up to 64GB
- 15-Year CPU Life Cycle Support Until Q4' 32 (Based on Intel IOTG Roadmap)
System
- Processor
- Intel Atom® Processor C3000 Series, BGA1310 Intel Atom® C3958 Processor, 16 Cores, 16M Cache, 2.0GHz, 31W Intel Atom® C3808 Processor, 12 Cores, 12M Cache, 2.0GHz, 25W Intel Atom® C3708 Processor, 8 Cores, 16M Cache, 1.7GHz, 17W
- Memory
- Two 260-pin ECC SODIMM up to 32GB Dual Channel DDR4 2400MHz (Memory max speed depends on CPU SKU)
- BIOS
- Insyde SPI 128Mbit
Expansion
- Interface
- Default: B1: 2 x PCIe x2 or 2 x PCIe x1 (Gen 3) B2: 1 x PCIe x2 (Gen 3) + 1 x PCIe x1 (Gen 2) or 2 x PCIe x1 (Lane 8 Gen 3, Lane 12 Gen 2) B3: 1 x PCIe x8 or 2 x PCIe x4 or 2 x PCIe x2 or 2 x PCIe x1 (Gen 3) Option 1: B1: 1 x PCIe x8 or 2 x PCIe x4 or 2 x PCIe x2 or 2 x PCIe x1 (Gen 3) B3: 2 x PCIe x2 or 2 x PCIe x1 (Gen 3) B4: 2 x PCIe x2 or 2 x PCIe x1 (Gen 3) 1 x LPC 1 x I2C 1 x SMBus 2 x UART (TX/RX)
Ethernet
- Controller
- PHY for X557 or CS4227/CS4223 and Controller for Intel® I210AT/Intel® I210IT 2 x Independent 10GbE Media Access Controller (Sku dependent) Supports up to Two 10GBASE-KR Interfaces and Max up to Four 10GbE MAC Ports Supports Intel® X557-AT/AT2/AT4 10GbE PHY Supports Inphi CS4227 (2 port)/CS4223 (4 port) (maximum bandwidth is 20Gb when 4 ports of 10G interface active at the same time) 1 x Intel® I210AT (10/100/1000Mbps) (normal temp.) or 1 x Intel® I210IT (10/100/1000Mbps) (wide temp.)
I/O
- USB
- 2 x USB 3.0 4 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s) RAID 0/1/10
- DIO
- 1 x 8-bit DIO (4 in, 4 out)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 15 to 255 Seconds
Security
- TPM
- Available Upon Request
Power
- Type
- 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
- Consumption
- Typical: 12V @ 1.24A (14.88Watt) Max.: 12V @ 2.26A (27.12Watt)
OS Support
- OS Support
- Windows Server 2012 Windows Server 2016 Yocto Project v1.8/v2.0
Environment
- Temperature
- Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 2180429 hrs @ 25°C; 1241904 hrs @ 45°C; 802692 hrs @ 60°C Calculation model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- COM Express® Basic 95mm (3.74") x 125mm (4.9")
- Compliance
- PICMG COM Express® R3.0, Type 7
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- 1 DV970 board 1 Cooler (Height: 47.80 mm)：Standard: A71-108101-000G, Wide Temp: A71-108101-010G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| DV970-TS-C3808 | 770-DV9703-000G | Cooler, C3808, 1 LAN, 4 10GbE, 2 USB 3.0, 4 USB 2.0, 2 SODIMM DDR4, -40 to 85°C |
| DV970-BS-C3958 | 770-DV9703-100G | Cooler, C3958, 4 10GbE, 2 USB 3.0, 4 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| DV970-BS-C3958 | 770-DV9703-200G | Cooler, C3958, 1 LAN, 4 10GbE, 2 USB 3.0, 4 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| DV970-TS-C3708 | 770-DV9703-300G | Cooler, C3708, 1 LAN, 4 10GbE, 2 USB 3.0, 4 USB 2.0, 2 SODIMM DDR4, -40 to 85°C |
| Item Name | Part Number | Description |
|---|---|---|
| Heat spreader (Height: 11mm) | A71-808317-000G | |
| COM333-I carrier board kit | 770-CM3331-000G |
