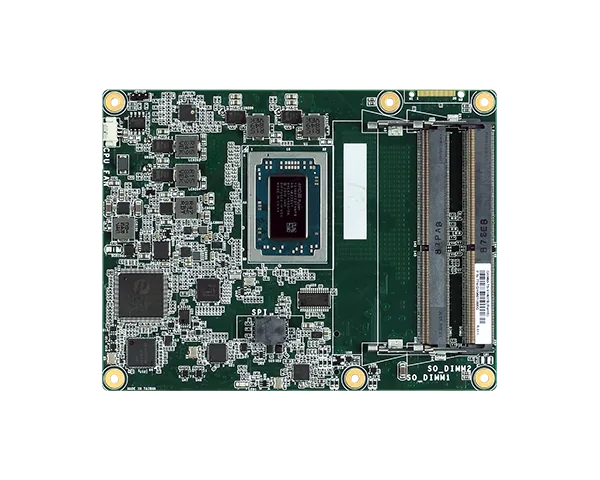

GH960
COM Express Type 6, AMD® Ryzen™ V1000/R1000, DDR4, 1 PCIe x8, 7 PCIe x1, 12 USB, 1 or 2 SATA 3.0, 1 VGA/DDI, 1 LVDS/eDP, 2 DDI
- AMD® Ryzen™ V1000/R1000 series processors
- Dual channel DDR4 2400/3200MHz SODIMM up to 32GB
- Four display ports: VGA*/DDI + LVDS*/eDP + 2 DDI (* Default)
- DP++ resolution supports up to 4096x2304 @ 60Hz
- Multiple expansion: 1 PCIe x8, 6 PCIe x1
- Rich I/O: 1 Intel GbE, 4 USB 3.1, 8 USB 2.0
- 10-Year CPU Life Cycle Support Until Q1' 28 (Based on AMD Roadmap)
Főbb jellemzők
Tanúsítványok
#IoT
#AMD
#Windows
#Linux
#HDMI
#VGA
#Multiple Expansion
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
Főbb jellemzőkKey features
- AMD® Ryzen™ V1000/R1000 series processors
- Dual channel DDR4 2400/3200MHz SODIMM up to 32GB
- Four display ports: VGA*/DDI + LVDS*/eDP + 2 DDI (* Default)
- DP++ resolution supports up to 4096x2304 @ 60Hz
- Multiple expansion: 1 PCIe x8, 6 PCIe x1
- Rich I/O: 1 Intel GbE, 4 USB 3.1, 8 USB 2.0
- 10-Year CPU Life Cycle Support Until Q1' 28 (Based on AMD Roadmap)
System
- Processor
- AMD® Ryzen™ Embedded V1807, Quad Core, 2MB Cache, 11 CU, 3.35GHz (3.8GHz), 35-54W AMD® Ryzen™ Embedded V1756, Quad Core, 2MB Cache, 8 CU, 3.25GHz (3.6GHz), 35-54W AMD® Ryzen™ Embedded V1605, Quad Core, 2MB Cache, 8 CU, 2.0GHz (3.6GHz), 12-25W AMD® Ryzen™ Embedded V1404I, Quad Core, 2MB Cache, 8 CU, 2.0GHz (3.6GHz), 12-25W AMD® Ryzen™ Embedded V1202, Dual Core, 1MB Cache, 3 CU, 2.3GHz (3.2GHz), 12-25W AMD® Ryzen™ Embedded R1606G, Dual Core, 1MB Cache, 3 CU, 2.6GHz (3.5GHz), 12-25W AMD® Ryzen™ Embedded R1505G, Dual Core, 1MB Cache, 3 CU, 2.4GHz (3.3GHz), 12-25W
- Memory
- Two 260-pin SODIMM up to 32GB Dual Channel DDR4 up to 2400/3200MHz
- BIOS
- Insyde SPI 64Mbit
Graphics
- Controller
- AMD® Radeon™ Vega Graphics
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 1 x VGA/DDI (DDI available upon request) 1 x LVDS/eDP (eDP available upon request) 2 x DDI (HDMI/DVI/DP++) VGA: resolution up to 1920x1200 @ 60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200 @ 60Hz eDP: resolution up to 3840x2160 @ 60 Hz HDMI: resolution up to 2560x1600 @ 60Hz or 4096x2160 @ 24Hz DVI: resolution up to 1920x1200 @ 60Hz DP++: resolution up to 4096x2304 @ 60Hz
- Quad Displays
- VGA + LVDS + 2 DDI or eDP + 3 DDI (available upon request)
Expansion
- Interface
- 1 x PCIe x8 (Gen 3) 6 x PCIe x1 or 2 x PCIe x2 or 1 x PCIe x4 1 x LPC 1 x I2C 1 x SPI 1 x SMBus 2 x UART (TX/RX)
Audio
- Interface
- HD Audio
Ethernet
- Controller
- 1 x Intel® I210AT PCIe (10/100/1000Mbps) (normal temp.) or 1 x Intel® I210IT PCIe (10/100/1000Mbps) (wide temp.)
I/O
- USB
- 4 x USB 3.1 8 x USB 2.0
- SATA
- 2 x SATA 3.0 (up to 6Gb/s) RAID 0/1
- DIO
- 1 x 8-bit DIO (Default 4 inputs and 4 outputs)
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM1.2/2.0 (Available Upon Request)
Power
- Type
- 12V, 5VSB, VCC_RTC (ATX mode) 12V, VCC_RTC (AT mode)
- Consumption
- Typical: 12V @ 0.82A (9.84Watt) Max.: 12V @ 2.63A (31.56Watt)
OS Support
- OS Support
- Windows: Windows 10 IoT Enterprise 64-bit Linux
Environment
- Temperature
- Operating: 0 to 60°C, -40 to 85°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- 318550 hrs @ 25°C; 149853 hrs @ 45°C; 84138 hrs @ 60°C excluding accessories Calculation Model: Telcordia Issue 4 Environment: GB, GC – Ground Benign, Controlled
Mechanism
- Dimensions
- COM Express® Basic 95mm (3.74") x 125mm (4.9")
- Compliance
- PICMG COM Express® R3.0, Type 6
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- 1 GH960 board 1 Cooler for 0 to 60°C (Height: 36.72mm) or 1 Cooler for -40 to 85°C (Height: 64.72mm) 0 to 60°C: V Series A71-111102-000G / R Series A71-111102-030G -40 to 85oC: V Series A71-111102-010G / R Series A71-111102-020G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| GH960-TS-V1807B | 770-GH9602-000G | AMD® Ryzen™ V1807B processor, 1 VGA, 1 LVDS, 1 LAN, 4 USB 3.1 Gen1, 8 USB 2.0, 2 SODIMM DDR4, -40 to 85°C |
| GH960-TS-V1756B | 770-GH9602-200G | AMD® Ryzen™ V1756B processor, 1 VGGH9602A, 1 LVDS, 1 LAN, 4 USB 3.1 Gen1, 8 USB 2.0, 2 SODIMM DDR4, -40 to 85°C |
| GH960-BS-V1202B | 770-GH9602-300G | AMD® Ryzen™ V1202B processor, 1 VGA, 1 LVDS, 1 LAN, 4 USB 3.1 Gen1, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| GH960-TS-R1606G | 770-GH9602-500G | AMD® Ryzen™ R1606G processor, 1 LVDS, 1 LAN, 4 USB 3.1 Gen1, 8 USB 2.0, 2 SODIMM DDR4, -40 to 85°C |
| GH960-BS-V1605B | 770-GH9602-600G | AMD® Ryzen™ V1605B processor, 1 VGA, 1 LVDS, 1 LAN, 4 USB 3.1 Gen1, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| GH960-BS-R1505G | 770-GH9602-700G | AMD® Ryzen™ R1505G processor, 1 LVDS, 1 LAN, 4 USB 3.1 Gen1, 8 USB 2.0, 2 SODIMM DDR4, 0 to 60°C |
| GH960-TS-V1404I | 770-GH9602-800G | AMD® Ryzen™ V1404I processor, 1 VGA, 1 LVDS, 1 LAN, 4 USB 3.1 Gen1, 8 USB 2.0, 2 SODIMM DDR4, -40 to 85°C |
| Item Name | Part Number | Description |
|---|---|---|
| Carrier board kit | 770-CM3322-000G | |
| Heat spreader (Height: 11mm) | A71-808323-000G |
