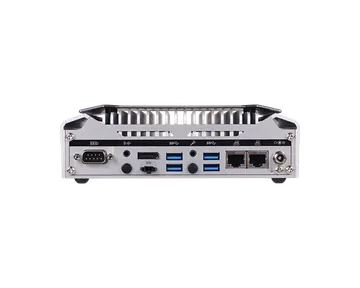

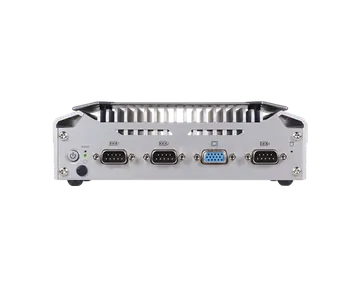

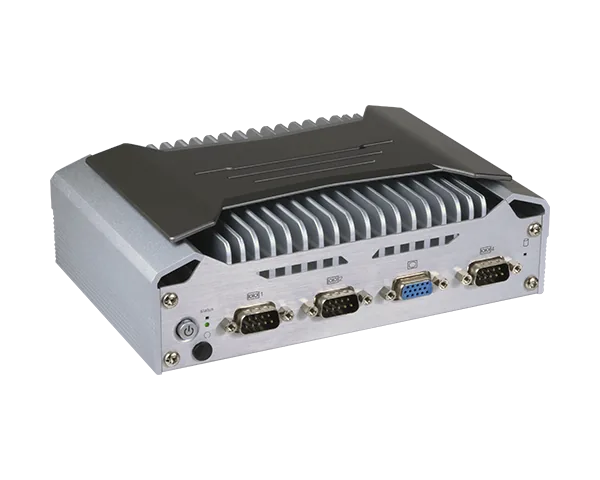

The EC70A-SU, which is capable of extensive I/O capabilities and increased computing performance, takes full advantage of 6th Gen Intel® Core™ i7/i5/i3 U-series processors delivering only 15 watts TDP. This new fanless system has an upgraded onboard DDR4 memory that enables accelerated exploration of complex data. In addition, the fanless thermal design provides sufficient heat dissipation for space-limited environments. Due to the advanced I/O expandability (2 Intel GbE, 4 COM, 4 USB 3.0, 1 VGA, and 1 DP++), it makes the system suitable for a variety of embedded applications in smart factory, IoT networks, digital signage, digital healthcare, etc.
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| EC70A-SU4041-668 | 750-EC70A0-500G | Fanless, Intel Core i7-6600U, 1 DP++, 1 VGA, 2 LAN, 4 COM, 4 USB, 8GB DDR4 onboard |
| EC70A-SU4041-664 | 750-EC70A0-400G | Fanless, Intel Core i7-6600U, 1 DP++, 1 VGA, 2 LAN, 4 COM, 4 USB, 4GB DDR4 onboard |
| EC70A-SU4041-638 | 750-EC70A0-300G | Fanless, Intel Core i5-6300U, 1 DP++, 1 VGA, 2 LAN, 4 COM, 4 USB, 8GB DDR4 onboard |
| EC70A-SU4041-634 | 750-EC70A0-200G | Fanless, Intel Core i5-6300U, 1 DP++, 1 VGA, 2 LAN, 4 COM, 4 USB, 4GB DDR4 onboard |
| EC70A-SU4041-618 | 750-EC70A0-100G | Fanless, Intel Core i3-6100U, 1 DP++, 1 VGA, 2 LAN, 4 COM, 4 USB, 8GB DDR4 onboard |
| EC70A-SU4041-614 | 750-EC70A0-000G | Fanless, Intel Core i3-6100U, 1 DP++, 1 VGA, 2 LAN, 4 COM, 4 USB, 4GB DDR4 onboard |
| Item Name | Part Number | Description |
|---|---|---|
| 1TB SSD | 785-S251TBG | 2.5" SATA SSD, 1TB MLC, -40 to 85°C, RoHS |
| 512GB SSD | 785-S25512G | 2.5" SATA SSD, 512GB MLC, -40 to 85°C, RoHS |
| 256GB SSD | 785-S25256G | 2.5" SATA SSD, 256GB MLC, -40 to 85°C, RoHS |
| 128GB SSD | 785-S25128G | 2.5" SATA SSD, 128GB MLC, -40 to 85°C, RoHS |
| 64GB SSD | 785-S25064G | 2.5" SATA SSD, 64GB MLC, -40 to 85°C, RoHS |
| 32GB SSD | 785-S25032G | 2.5" SATA SSD, 32GB MLC, -40 to 85°C, RoHS |
| 128GB mSATA | 785-MW128GMH | mSATA Card, 128GB MLC, -40 to 85°C, RoHS |
| 64GB mSATA | 785-MW64GMH | mSATA Card, 64GB MLC, -40 to 85°C, RoHS |
| 32GB mSATA | 785-MW32GMH | mSATA Card, 32GB MLC, -40 to 85°C, RoHS |
| Wi-Fi | 785-WIFIKT | Wi-Fi Kit, RoHS |
| 120W Power Adapter | 671-110003-100G | 120W, 19V/6.31A, Level 6, RoHS |
| 60W Power Adapter | 671-106011-000G | 60W, 19V/3.15A, Level 6, RoHS |
| Power Cord | 785-PWRD | Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| Wall Mount | 761-EC8000-000G | EC700/EC800/EC70A Wall Mount Kit, RoHS |
| VESA Mount | 761-EC7000-100G | EC700/EC70A VESA Mount Kit, RoHS |
| DIN Rail Mount | 761-EC70A0-000G | EC70A DIN Rail Mount Kit, RoHS |
| DC Cord | A81-004031-007G | UL 1185 (5.5x2.5x9.5mm) with Nut to stripped and tinned, length 1000mm |
