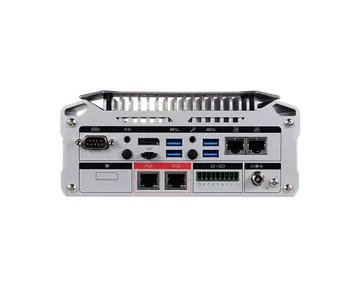

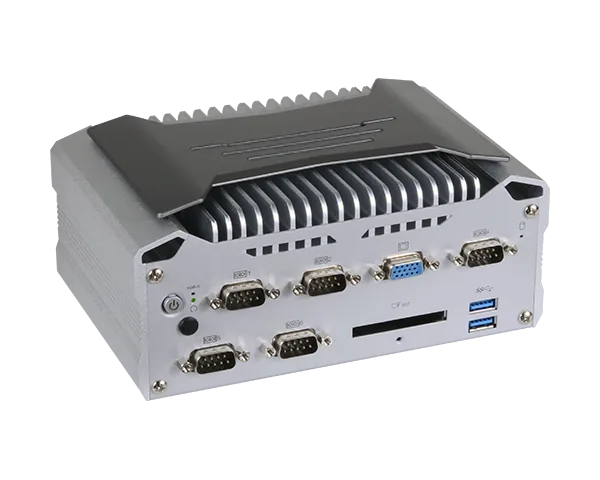

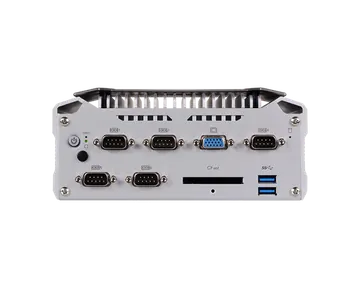

The EC70B-SU is a fanless industrial box PC powered by 6th Generation Intel® Core™-i processor. This small but powerful embedded computer is equipped with high-end Intel Core CPU to deliver increased computing frequencies and performance. It brings rich and specific I/O connectivity to support up to 2 PoE LAN, 2 Giga LAN, 6 COM ports, and 6 USB 3.0, which makes it a perfect candidate for machine vision application. The system also features fast DDR4 onboard memory, Mini PCIe & M.2 expansion for Wi-Fi/LTE/SATA modules, and a -20°C to 60°C operating temperature range. EC70A-SU box PC ideally suits computing intensive applications and continuous operations in challenging environments.
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| EC70B-SU6864E-668 | 750-EC70B0-500G | Intel Core i7-6600U, 1 DP++, 1 VGA, 2 PoE, 2 LAN, 6 COM, 6 USB, 8GB DDR4 onboard |
| EC70B-SU6864E-664 | 750-EC70B0-400G | Intel Core i7-6600U, 1 DP++, 1 VGA, 2 PoE, 2 LAN, 6 COM, 6 USB, 4GB DDR4 onboard |
| EC70B-SU6864E-638 | 750-EC70B0-300G | Intel Core i5-6300U, 1 DP++, 1 VGA, 2 PoE, 2 LAN, 6 COM, 6 USB, 8GB DDR4 onboard |
| EC70B-SU6864E-634 | 750-EC70B0-200G | Intel Core i5-6300U, 1 DP++, 1 VGA, 2 PoE, 2 LAN, 6 COM, 6 USB, 4GB DDR4 onboard |
| EC70B-SU6864E-618 | 750-EC70B0-100G | Intel Core i3-6100U, 1 DP++, 1 VGA, 2 PoE, 2 LAN, 6 COM, 6 USB, 8GB DDR4 onboard |
| EC70B-SU6864E-614 | 750-EC70B0-000G | Intel Core i3-6100U, 1 DP++, 1 VGA, 2 PoE, 2 LAN, 6 COM, 6 USB, 4GB DDR4 onboard |
| Item Name | Part Number | Description |
|---|---|---|
| 128GB mSATA | 785-MW128GMH | mSATA-mini Card, 128GB MLC, -40 to 85°C, RoHS |
| 64GB mSATA | 785-MW64GMH | mSATA-mini Card, 64GB MLC, -40 to 85°C, RoHS |
| 32GB mSATA | 785-MW32GMH | mSATA-mini Card, 32GB MLC, -40 to 85°C, RoHS |
| Wi-Fi | 785-WIFIKT | Wi-Fi Kit, RoHS |
| Power Cord | 785-PWRD | Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| 120W Power Adapter | 671-110003-100G | 120W, 19V/6.31A, Level 6, RoHS |
| 60W Power Adapter | 671-106011-000G | 60W, 19V/3.15A, Level 6, RoHS |
| Wall Mount | 761-EC8000-000G | EC700/EC800/EC70A/EC70B Wall Mount Kit, RoHS |
| VESA Mount | 761-EC7000-100G | EC700/EC70A/EC70B VESA Mount Kit, RoHS |
| DIN Rail Mount | 761-EC70B0-000G | EC70B DIN Rail Mount Kit, RoHS |
| DC Cord | A81-004031-007G | UL 1185 (5.5x2.5x9.5mm) with Nut to stripped and tinned, length 1000mm |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
