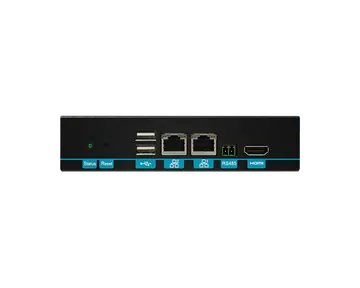

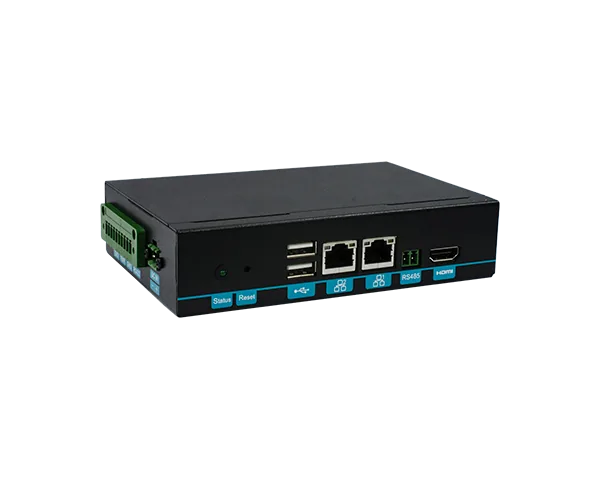

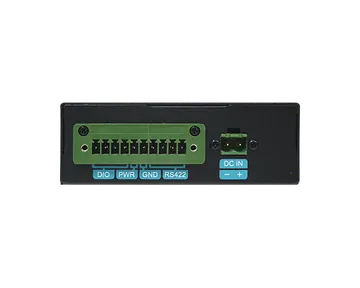

DFI's EC900-FS6 is a Fanless Embedded System with DIN Rail, ARM-based powered by NXP i.MX6 Series Processor. It brings flexible perfect for Air compressors, steel, electricity, metallurgy, shipbuilding, textile, chemical, oil and gas, paper and printing, food and medicine, casting and spraying, shipping and terminal, automobile industry, aerospace and infrastructure, and more. DFI EC900-FS6 support NXP i.MX6 Series, DDR3L, 1 Mini PCIe, 1 HDMI.
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| EC900-FS6DL | 750-EC9000-000G | EC900-FS6DL, Fanless, NXP IMX6DL 1GB Memory, 8GB eMMC, 2 COM, 2 USB, HDMI, Yocto Linux, -20 to 60°C, RoHS |
| EC900-FS6DL | 750-EC9000-100G | EC900-FS6DL, Fanless, NXP IMX6DL 4GB Memory, 16GB eMMC, 2 COM, 2 USB, HDMI, Android, -20 to 60°C, RoHS |
| EC900-FS6DL | 750-EC9000-200G | EC900-FS6DL, Fanless, NXP IMX6DL 2GB Memory, 16GB eMMC, 2 COM, 2 USB, HDMI, Yocto Linux, -20 to 60°C, RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| Wi-Fi + BT | 761-AP1235-000G | Wi-Fi + BT Kit, RoHS |
| Power Cord | 785-PWRD | Power Cord, Standards (USA/EUR/CH), 1.8m, RoHS |
| 20W Power Adapter | 671-102001-000G | 20W, 24V, 0 to 40°C, RoHS |
| 25W Power Adapter | 671-102501-000G | 25W, 24V, -30 to 70°C, RoHS |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
