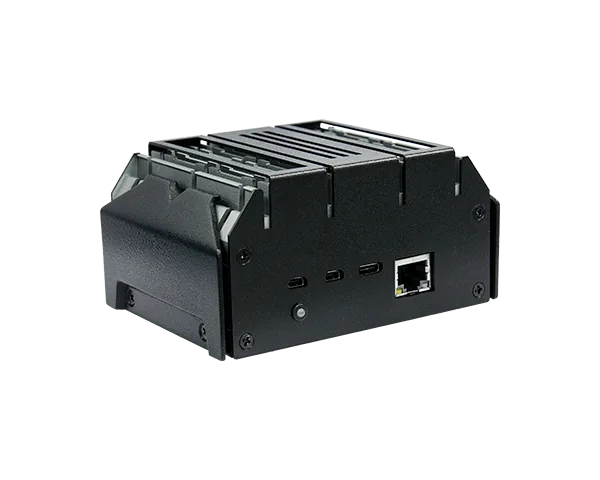

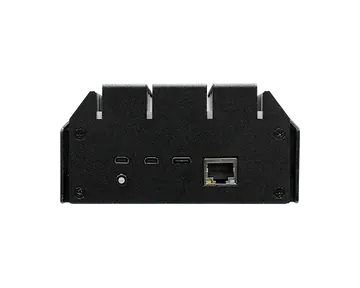

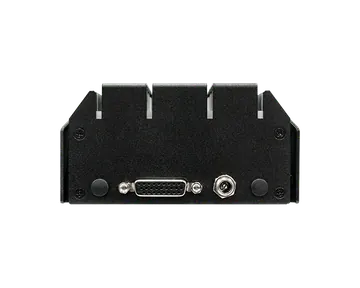

Smallest Ryzen™ Pi Box! DFI's EC90A-GH is the industrial mini pc system powered by AMD Ryzen™ CPU. It designed for AIoT edge computing, AI vision, SCARA, track monitoring, and more. DFI EC90A-GH support AMD Ryzen™, SIM card/LTE/Wifi, Ultra Small Size Fanless, 1 Mini PCIe, 2 Micro HDMI.
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| EC90A-GH | 750-EC90A1-000G | EC90A-GH: GHF51-BN-46R16, R1606G, DDR4 4GB, eMMC 32GB, 1 LAN, 2 Micro HDMI, 1 USB 3.1 Gen 1 type C, 8bit DIO& SMBUS, 12VDC, F/G SYSTEM RoHS |
| EC90A-GH | 750-EC90A1-100G | EC90A-GH: GHF51-EN-46R16, R1606G, DDR4 4GB, eMMC 64GB, 1 LAN, 2 Micro HDMI, 1 USB 3.1 Gen 1 type C, 8bit DIO& SMBUS,12VDC, F/G SYSTEM RoHS |
| EC90A-GH | 750-EC90A1-200G | EC90A-GH: GHF51-BN-46R16, R1606G, DDR4 4GB, eMMC 32GB, 1 LAN, 2 Micro HDMI, 1 USB 3.1 Gen 1 type C, 2 COM /RS232, 12VDC, F/G SYSTEM RoHS |
| EC90A-GH | 750-EC90A1-300G | EC90A-GH: GHF51-EN-46R16, R1606G, DDR4 4GB, eMMC 64GB, LTE module,1 LAN, 2 Micro HDMI, 1 USB 3.1 Gen 1 type C, 8bit DIO& SMBUS, 2 SMA, 12VDC, F/G SYSTEM RoHS |
| EC90A-GH | 750-EC90A1-400G | EC90A-GH:GHF51-BN-46R15,R1505G,DDR4 4GB, eMMC 64GB, 1 LAN, 2 Micro HDMI, 1 USB 3.1 Gen 1 type C, 2 COM /RS232, 12VDC, F/G SYSTEM RoHS |
| EC90A-GH | 750-EC90A1-500G | EC90A-GH:GHF51-BN-46R11,R1102G,DDR4 4GB, eMMC 64GB, 1 LAN, 2 Micro HDMI, 1 USB 3.1 Gen 1 type C, 2 COM /RS232, 12VDC, F/G SYSTEM RoHS |
| EC90A-GH | 750-EC90A1-600G | EC90A-GH:GHF51-BN-46R13,R1305G,DDR4 4GB, eMMC 64GB, 1 LAN, 2 Micro HDMI, 1 USB 3.1 Gen 1 type C, 2 COM /RS232, 12VDC, F/G SYSTEM RoHS |
| Item Name | Part Number | Description |
|---|---|---|
| Power Adapter | 671-106012-000G | Power adapter 12V, 60W |
| WiFi+BT kit | 761-AP1235-000G | WiFI+BT Module, W/Antenna, SMA Cable/200mm, 802.11 abgn/ac |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
The BMAL box module also supports DFI’s Adaptive Display Platform (ADP) Technology. It is an innovative panel PC solution that offers the flexibility of modularized integration of panel PC components for expedited product development and shortened time to market.
