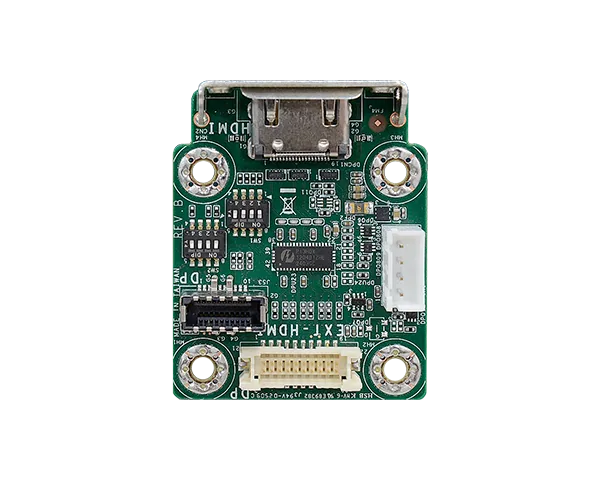

EXT-HDMI
Module Boards
- CHIP: PI3HDX1204
- PORT: 1 HDMI
- INTERFACE: HDMI
- DIMENSIONS: 50mm x 40mm (1.97" x 1.58")
- Module Boards
- ONLY FOR DFI MiniITX
Főbb jellemzők
#HDMI
Főbb jellemzőkKey features
- CHIP: PI3HDX1204
- PORT: 1 HDMI
- INTERFACE: HDMI
- DIMENSIONS: 50mm x 40mm (1.97" x 1.58")
- Module Boards
- ONLY FOR DFI MiniITX
Specifications
- Features
- CHIP: Re-Driver PI3HDX1204 FEATURES: Support Full HD resolution up to 1920x1080 REAR PANEL I/O PORTS: 1 HDMI port APPLIED MODEL: ADS101/ADS103, RPS101/RPS103, RPSPIC TEMPERATURE: - Operating: -20°C to 70°C - Storage: -40°C to 85°C HUMIDITY: 5% to 90% DIMENSIONS: 50mm x 40mm (1.97" x 1.58")
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| EXT-HDMI | 770-DP2HDM2-000G | EXT-HDMI: DP-to-HDMI 1.4 MODULE CARD R.B |
| Item Name | Part Number | Description |
|---|---|---|

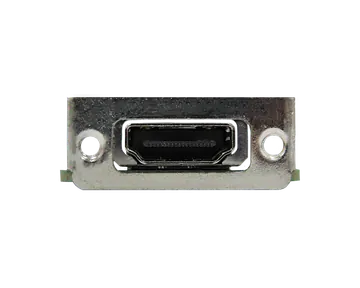

| HDMI-Bracket | A31-028957-050G | BRACKET IO SLOT, SGCC T=1.0mm, FOR EXT-HDMI(LC)RoHS |
