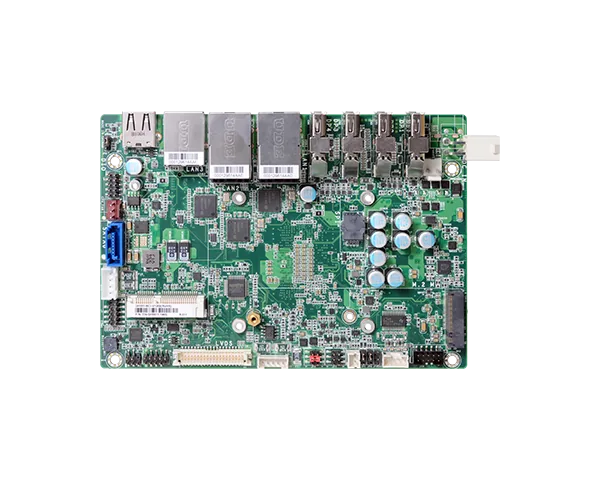

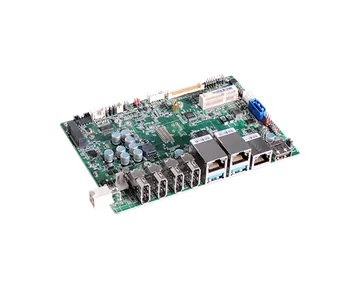

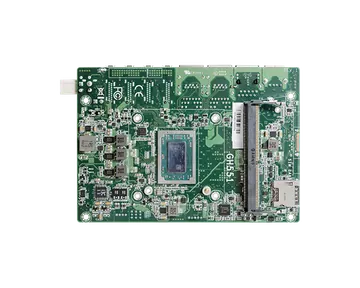

GH551
3.5" SBC, AMD® Ryzen™ V1000/R2000/R1000 Series, 1 DDR4, 1 M.2 M key, 1 Mini PCIe, 1 LVDS, 4 DP++, 3 Intel GbE, 2 USB 3.1 Gen2, 1 USB 2.0
- AMD® Ryzen™ V1000/R2000/R1000 Series
- 1 DDR4 2400MHz SODIMM up to 16GB
- Multiple displays: max. 4 DP++/3 DP++ + LVDS
- Multiple Expansion: 1 M.2 M Key, 1 Mini PCIe
- Rich I/O: 3 GbE, 2 USB 3.1 Gen2, 1 USB 2.0
Főbb jellemzők
Tanúsítványok
#Edge AI Computing
#AMD
#Fanless Design
#4K2K Display
#DDR4
#RoHS Certification
#CPU Auto Warm-up
Főbb jellemzőkKey features
- AMD® Ryzen™ V1000/R2000/R1000 Series
- 1 DDR4 2400MHz SODIMM up to 16GB
- Multiple displays: max. 4 DP++/3 DP++ + LVDS
- Multiple Expansion: 1 M.2 M Key, 1 Mini PCIe
- Rich I/O: 3 GbE, 2 USB 3.1 Gen2, 1 USB 2.0
System
- Processor
- AMD® Ryzen™ Embedded V1605B, 4C/8T, 2MB Cache, 8 CU, 2.0GHz (3.6GHz), 15W AMD® Ryzen™ Embedded V1202B, 2C/4T, 1MB Cache, 3 CU, 2.3 GHz (3.2GHz), 15W AMD® Ryzen™ Embedded V1404I, 4C/8T, 2MB Cache, 8 CU, 2.0GHz (3.6GHz), 15W AMD® Ryzen™ Embedded R1606G, 2C/4T, 3 CU, 2.6GHz (3.5GHz), 15W AMD® Ryzen™ Embedded R1505G, 2C/4T, 3 CU, 2.4GHz(3.3GHz), 15W AMD® Ryzen™ Embedded R2514, 4C/8T, 8 CU, 2.1GHz (3.7GHz) AMD® Ryzen™ Embedded R2314, 4C/4T, 6 CU, 2.1GHz (3.5GHz) AMD® Ryzen™ Embedded R2312, 2C/4T, 3 CU, 2.7GHz (3.5GHz)
- Memory
- 1 x 260-pin SODIMM up to 16GB Single Channel DDR4 up to 2400MHz (ECC/non ECC support)
- BIOS
- AMI SPI 64Mbit
Graphics
- Controller
- AMD® Radeon™ Vega Graphics
- Feature
- OpenGL 4.5, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: AVC/H.264, MPEG2, JPEG, HEVC/H265, VP8, VP9
- Display
- [V1000/R2514/R2314] 4 x DP++ (1 x LVDS opt.) [R2312/R1000] 3 x DP++(1 x LVDS opt.) DP++: resolution up to 4096x2160 @ 60Hz LVDS: resolution up to 1920x1200 @ 60Hz
- Quad Displays
- [V1000/R2514/R2314] 4 DP++ (1 x LVDS opt.) [R2312/R1000] 3 DP++(1 x LVDS opt.)
Expansion
- Interface
- 1 x Full-size mini-PCIe (PCIe/USB 2.0, opt.: USB 3.1 Gen 1) 1 x M.2 2280/2242 M key (Support SATA/PCIe SSD) 1 x Nano SIM slot (opt.)
Audio
- Audio Codec
- Realtek ALC888S
Ethernet
- Controller
- 3 x Realtek® RTL8111HN/RTL8119I (10/100/1000Mbps)

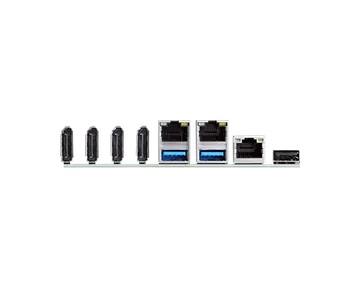

Rear I/O
- Ethernet
- 3 x GbE (RJ-45)
- USB
- 2 x USB 3.1 Gen2 1 x USB 2.0
- Display
- [V1000/R2514/R2314] 4 x DP++ [R2312/R1000] 3 x DP++
Internal I/O
- Serial
- 1 x RS-232/422/485 (2.0mm pitch) RS485 support auto flow control
- USB
- 1 x USB 2.0 (2.0mm pitch)
- Display
- 1 x LVDS LCD Panel Connector 1 x Backlight Power
- Audio
- 1 x Mic-in 1 x Line-out 1 x Speaker-out (2 x 3W, 8ohm)
- SATA
- 1 x SATA 3.0 (up to 6Gb/s) 1 x SATA Power
- DIO
- 1 x 8-bit DIO
- SMBus
- 1 x SMBus
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- fTPM2.0 (default) dTPM2.0 (opt.)
Power
- Type
- Single 12V DC
- Connector
- 4-pin Right Angle Type Connector (default) DC Jack (available upon request) 4-pin Vertical Type Connector (available upon request)
- Consumption
- Typical: V1605B:12V @ 1.35A (16.2Watt) Max.: V1605B:12V @ 2.37A (28.44Watt)
- RTC Battery
- CR2032 coin cell
Environment
- Temperature
- Operating: -5 to 65°C, -30 to 80°C Storage: -40 to 85°C
- Humidity
- Operating: 10 to 90% RH Storage: 10 to 90% RH
- MTBF
- R1505: 612,770 hrs @ 25°C; 392,061 hrs @ 45°C ; 229,134 hrs @ 65°C V1605: 622,707 hrs @ 25°C; 408,558 hrs @ 45°C ; 246,634 hrs @ 65°C Calculation Model: Telcordia Issue 4 Environment: GB, GC - Ground Benign, Controlled
Mechanism
- Dimensions
- 3.5" SBC Form Factor 146mm (5.75") x 102mm (4.02")
- Height
- PCB: 1.6mm Top Side: 15.5mm, Bottom Side: 4.0mm
Packing List
- Packing List
- 1 GH551 board 1 COM cable (2P ports, Length: 250mm) 332-753040-000G SATA cable (Length: 500mm) 332-553001-005G SATA power cable (Length: 250mm) A81-004041-016G Heatsink for -5~65℃ (Height: 35.0mm) A71-008136-030G / for -30~80℃ (Height: 44.9mm) A71-008136-040G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| GH551-BCI-V1605B | 770-GH5512-000G | AMD® Ryzen™ Embedded V1605B, 1 DDR4, 3 LAN, 4 DP++, 2 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -5 to 65°C |
| GH551-BCI-V1202B | 770-GH5512-100G | AMD® Ryzen™ Embedded V1202B, 1 DDR4, 3 LAN, 3 DP++, 1 LVDS, 2 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -5 to 65°C |
| GH551-ECI-V1404I | 770-GH5512-200G | AMD® Ryzen™ Embedded V1404I, 1 DDR4, 3 LAN, 4 DP++, 2 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -30 to 80℃ |
| GH551-BCI-R1606G | 770-GH5512-300G | AMD® Ryzen™ Embedded R1606G, 1 DDR4, 3 LAN, 3 DP++, 2 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -5 to 65°C |
| GH551-BCI-R1505G | 770-GH5512-400G | AMD® Ryzen™ Embedded R1505G, 1 DDR4, 3 LAN, 2 DP++, 1 LVDS, 2 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -5 to 65°C |
| GH551-BCI-R2514 | 770-GH5512-800G | AMD® Ryzen™ Embedded R2514, 1 DDR4, 3 LAN, 4 DP++, 2 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -5 to 65℃ |
| GH551-BCI-R2514 | 770-GH5512-900G | AMD® Ryzen™ Embedded R2514, 1 DDR4, 3 LAN, 3 DP++, 1 LVDS, 2 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -5 to 65℃ |
| GH551-BCI-R2314 | 770-GH5512-A00G | AMD® Ryzen™ Embedded R2314, 1 DDR4, 3 LAN, 3 DP++, 1 LVDS, 2 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -5 to 65℃ |
| GH551-BCI-R2312 | 770-GH5512-B00G | AMD® Ryzen™ Embedded R2312, 1 DDR4, 3 LAN, 2 DP++, 1 LVDS, 2 USB 3.1 Gen2, 2 USB 2.0, 1 COM, 12V DC, -5 to 65℃ |
| Item Name | Part Number | Description |
|---|---|---|
| USB 2.0 cable | A81-001032-016G | 2 ports, Length: 200mm |
| Audio cable | A81-022007-016G | Length: 160mm |
| Power adapter | 671-106012-000G | 60W, 12V, DC Jack |
| 4 pin to DC jack cable | A81-004051-016G | Length: 100mm |
| Front panel cable | A81-009307-001G | Length: 250mm |
| Heat spreader | A71-808336-000G | Height: 11mm |
