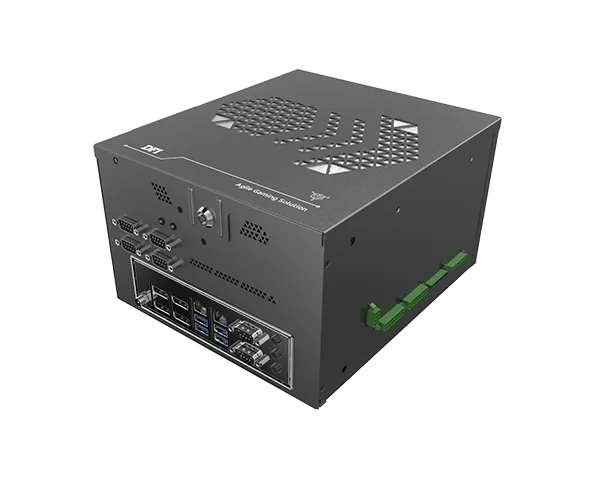

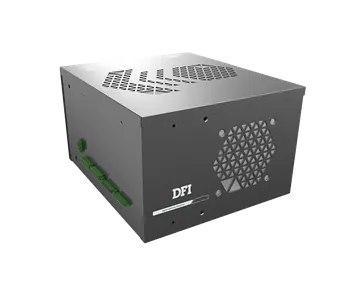

GM840-RNF
Gaming Embedded System, AMD® Ryzen™ V2000 Series Processors, DDR4 SODIMM, 4 DP++, 2 SATA 3.0, 1 2.5” SSD Bay, 1 M.2 M Key, 2 GbE, 8 COM, 2 USB 3.1 Gen1, 6 USB 2.0, 1 Audio Jack, NVRAM, High Security TPM 2.0, 12V DC IN, 0~45°C
- AMD® Ryzen™ V2000 Series up to 4.25GHz
- Four independent displays: DP++ + DP++ + DP++ + DP++
- Reliable Data Security (Secure Boot、Secure Content、TPM 2.0)
- NVRAM up to 16MB and retain data at least 5 Years during AC off
- Rich I/O: 2 GbE, 6 COM (2 ccTalk),2 USB 3.1, 6 USB 2.0, 1 Audio Tower (Mic-in/Line-in/ Line-out )
Főbb jellemzők
Tanúsítványok
#Windows 10
#M.2
#M.2 A display
#AMD
#4K2K Display
#1G Ethernet
#Windows
#Linux
#DP
#12V DC-in
#DDR4
#Gaming
Főbb jellemzőkKey features
- AMD® Ryzen™ V2000 Series up to 4.25GHz
- Four independent displays: DP++ + DP++ + DP++ + DP++
- Reliable Data Security (Secure Boot、Secure Content、TPM 2.0)
- NVRAM up to 16MB and retain data at least 5 Years during AC off
- Rich I/O: 2 GbE, 6 COM (2 ccTalk),2 USB 3.1, 6 USB 2.0, 1 Audio Tower (Mic-in/Line-in/ Line-out )
System
- Processor
- AMD® Ryzen™ V2000 Series Processors, BGA V2748 AMD® Ryzen™ V2748, 8C/16T, 4MB Cache, 7 CU, 2.9GHz (4.25GHz),45W AMD® Ryzen™ V2546, 6C/12T, 3MB Cache, 6 CU, 3.0GHz (3.95GHz),45W AMD® Ryzen™ V2718, 8C/16T, 4MB Cache, 7 CU, 1.7GHz (4.15GHz),15W AMD® Ryzen™ V2516, 6C/12T, 3MB Cache, 6 CU, 2.1GHz (3.95GHz),15W
- Memory
- Two 260-pin SODIMM up to 64GB Dual channel DDR4 up to 3200MHz (ECC/ non ECC support)
- BIOS
- AMI BIOS
Graphics
- Controller
- AMD® RadeonTM VEGA7 Graphics
- Feature
- OpenGL 4.6, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9
- Display
- 4 x DP++ DP++: resolution up to 4096x2160 @ 60Hz
- Quad Displays
- 4 x DP++
Storage
- Interface
- 2 x SATA 3.0 1 x 2.5” SSD Bay
Expansion
- Interface
- 1 x M.2 2280 M Key (SATA 3.0/ PCIe x4) (support 2242 by BOM opt.)
Audio
- Audio Codec
- Realtek ALC888S-VD2-GR
Ethernet
- Controller
- 2 x Realtek RTL8119-CG (10/100/1000Mbps)
LED
- Indicators
- 1 x Power LED 1 x HDD LED
I/O
- Ethernet
- 2 x GbE (RJ-45)
- Serial
- 1 x RS-232/422/485 (DB-9) 1 x Full RS-232 (DB-9) 4 x RS-232 (TX,RX) (DB-9) 2 x RS-232 (TX,RX)/ccTalk (Microfit)
- USB
- 2 x USB 3.1 Gen1 6 x USB 2.0
- Display
- 4 x DP++
- Audio
- 1 Audio Jack ( Line-in/Line-out/Mic-in) S/PDIF Out (internal header)
- Cooling
- 1 x 8cm System Fan, with replaceable air filter
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM 2.0
Gaming
- Intrusion Detection
- 8 x Intrusion detection Operates With and Without AC Power Logs Date/ Time of latest 64 events Coin Battery backup to Retain Data for 5 years during AC off
- NVRAM
- Supports up to 16Mbyte Coin Battery backup to Retain Data for 5 years during AC off Support Battery voltage monitoring & Warning
- DI/DO
- 32-bit Digital Input 32-bit OC output (29-bit x 500mA, disconnect detection up to 8 meters; 3-bit x 3A)
- iButton
- Support iButton 1-wire protocol
Power
- Type
- 12V DC IN
- Connector
- DC-in Jack or Right Angle Connector (4-pin)
OS Support
- Microsoft
- Windows IoT Enterprise 10 LTSB
- Linux
- Linux Ubuntu 20.04
- Software
- Supplied with gaming function SDK
Environment
- Operating Temperature
- 0~45°C
- Storage Temperature
- -20~85°C
- Relative Humidity
- 5%~90%
Mechanism
- Mounting
- Wall Mount
- Dimensions (W x H x D)
- 220 x 125 x 200 mm
- Weight
- 2.9 kg
Standards and Certifications
- Shock
- · Operation: IEC 60068-2-27 Test Ea: Shock test Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times) · Non-Operation: IEC 60068-2-27 Test Ea: Shock test Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
- Vibration
- · Operation: IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test Random,1Grms @ 5~500 Hz, 30min. · Non-Operation: IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test Sweep sine, 2Grms @ 10~500Hz, 30min.
- Certifications
- CE, FCC class A (ongoing)
Country of Origin
- Country of Origin
- Taiwan
