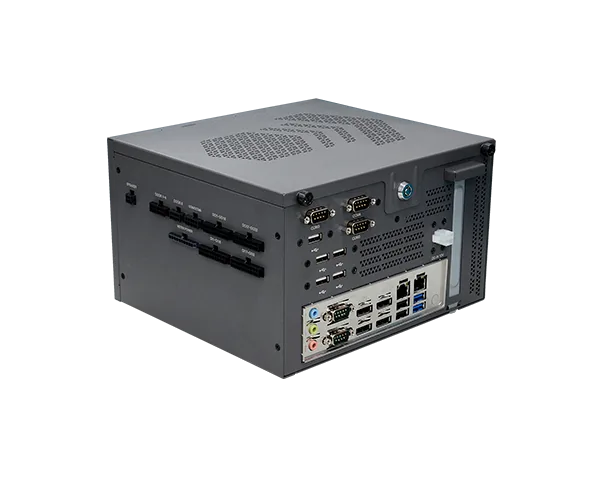

GM841-HPF
Gaming Embedded System, AMD® Ryzen™ Embedded 8000 Hawk Point Series, AI, 4 DP++, 2 SATA 3.0, 1 PCIe x16, 1 M.2 M Key, 1 M.2 A Key, 2 2.5GHz, 7 COM, 2 USB 3.2 Gen2, 7 USB 2.0, 1 Audio Jack, 12V DC IN, 0~45°C, NVRAM, Data Security TPM 2.0
- AMD® Ryzen™ Embedded 8000 Hawk Point APUs, up to 38 TOPs (CPU/GPU/NPU)
- Quad independent displays: 4 DP++
- Support 1 PCIe x16 slot (x8 signal)
- Reliable Data Security (Secure Boot, Secure Content, TPM 2.0)
- NVRAM up to 16MB and retain data at least 5 Years during AC off
- Rich IO: 2 2.5GbE, 5COM + 2Mcrofit (4 ccTalk), 2 USB 3.1 Gen2, 7 USB 2.0, 1 Audio Tower (Mic-in/Line-in/Line-out)
- Provide the hardware circuit design for the SAS 9-bit interface.
Főbb jellemzők
Tanúsítványok
#DDR5
#Windows 10
#M.2
#AMD® Ryzen™ Embedded 8000 Series
#12~24V DC-in
#IoT
#AI
#Windows 11
#AMD
#4K2K Display
#PCIe x16
#Windows
#Linux
#DP
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#Gaming
#2.5G Ethernet
#UKCA Certification
Főbb jellemzőkKey features
- AMD® Ryzen™ Embedded 8000 Hawk Point APUs, up to 38 TOPs (CPU/GPU/NPU)
- Quad independent displays: 4 DP++
- Support 1 PCIe x16 slot (x8 signal)
- Reliable Data Security (Secure Boot, Secure Content, TPM 2.0)
- NVRAM up to 16MB and retain data at least 5 Years during AC off
- Rich IO: 2 2.5GbE, 5COM + 2Mcrofit (4 ccTalk), 2 USB 3.1 Gen2, 7 USB 2.0, 1 Audio Tower (Mic-in/Line-in/Line-out)
- Provide the hardware circuit design for the SAS 9-bit interface.
System
- Processor
- AMD® Ryzen™ Embedded 8000 Series Processors, TDP up to 54W AMD® Ryzen™ Embedded 8845HS, 8C/16T, 8MB Cache, 3.8GHz (5.1GHz), 45W (35-54W) AMD® Ryzen™ Embedded 8645HS, 6C/12T, 6MB Cache, 4.3GHz (5.0GHz), 45W (35-54W) AMD® Ryzen™ Embedded 8840U, 8C/16T, 8MB Cache, 3.3GHz (5.1GHz), 28W (15-30W) AMD® Ryzen™ Embedded 8640U, 6C/12T, 6MB Cache, 3.5GHz (4.9GHz), 28W (15-30W)
- Memory
- Dual-channel SODIMM up to 64GB Dual-channel DDR5 5600/5200/4800MHz, non ECC/with ECC support
- BIOS
- AMI SPI 256 Mbit
Graphics
- Controller
- RDNA3 graphics with up to 6 WGPs (Work Group processors)
- Feature
- OpenGL 4.6, DirectX 12, OpenCL 2.1 HW Decode: AVC/H.264, MPEG2, VC1/WMV9, JPEG/MJPEG, HEVC/H265, VP8, VP9, AV1 HW Encode: MPEG2, AVC/H264, JPEG, HEVC/H265, VP8, VP9, AV1
- Display
- 4 x DP++ DP1.2: resolution up to 4096x2304 @ 60Hz
- Quad Displays
- 4 DP++
Storage
- Interface
- 2 x SATA 3.0 1 x 2.5” SSD Bay
Expansion
- Interface
- 1 x PCIE Gen4 x16 slot (x8 Gen4) 1 x M.2 M Key 2280 (SATA 3.0/ PCIe Gen3x4) SATA3(opt) selected by BIOS
Audio
- Audio Codec
- Realtek ALC888S
Ethernet
- Controller
- 2 x i226-V (10/100/1000/2500 MHz)
LED
- Indicators
- 1 x Power LED 1 x HDD LED

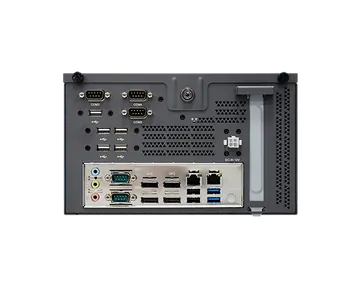

I/O
- Ethernet
- 2 x 2.5GHz RJ45
- Serial
- 1 x DB-9 (RS-232/422/485) 1 x DB-9 (RS-232) 1 x DB-9 (TX/RX, TTL-5V) 2 x DB-9 (TX/RX, CCTalk) 2 x Microfit (TX/RX, 2 ccTalk) (Provide the hardware circuit design for the SAS 9-bit interface.)
- USB
- 2 x USB 3.2 Gen2 7 x USB 2.0
- Display
- 4 x DP++
- Audio
- 1 Audio Jack ( Line-in/Line-out/Mic-in) Stereo 6W+6W Class D Audio AMP Output S/PDIF Out
- Cooling

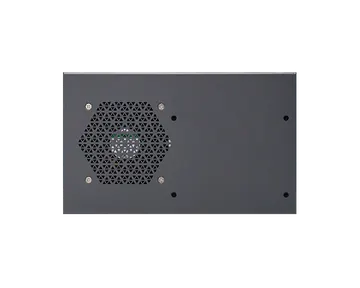

- 1 x 8cm System Fan, with replaceable air filter
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM 2.0
Gaming

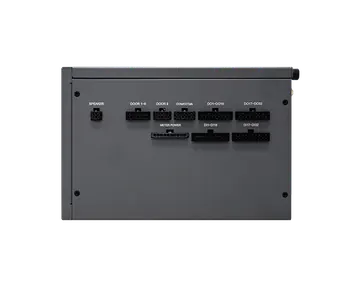

- Intrusion Detection
- 8 x Intrusion detection Operates With and Without AC Power Logs Date/ Time of latest 64 events Coin Battery backup to Retain Data for 5 years during AC off
- NVRAM
- Supports up to 16Mbyte Coin Battery backup to Retain Data for 5 years during AC off Support Battery voltage monitoring & Warning
- DI/DO
- 32-bit Digital Input 32-bit OC output (29-bit x 500mA, disconnect detection up to 8 meters; 3-bit x 3A)
- iButton
- Support iButton 1-wire protocol (option)
Power
- Type
- 12V~24V DC IN
- Connector
- DC-in Jack or Right Angle Connector (4-pin)
OS Support
- Microsoft
- Windows 10 IoT Enterprise LTSC(64-bit) Windows 11 22H2 GAC
- Linux
- Linux Ubuntu 22.04
- Software
- Supplied with gaming function SDK
Environment
- Operating Temperature
- 0~45°C
- Storage Temperature
- -20~85°C
- Relative Humidity
- 5%~90%
Mechanism
- Mounting
- Wall Mount
- Dimensions (W x H x D)
- 230 x 140 x 210 mm
- Weight
- 2.9 kg
Standards and Certifications
- Shock
- · Operation: IEC 60068-2-27 Test Ea: Shock test Half-sine, 3G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times) · Non-Operation: IEC 60068-2-27 Test Ea: Shock test Half-sine, 5G @ 11ms, 18 Shock ±X, ±Y, ±Z (each axis 3 times)
- Vibration
- · Operation: IEC 60068-2-64 Test Fh: Vibration Board-Band Random Test Random,1Grms @ 5~500 Hz, 30min. · Non-Operation: IEC 60068-2-6 Test Fc: Vibration Sinusoidal Test Sweep sine, 2Grms @ 10~500Hz, 30min.
- Certifications
- CE, FCC class A, RoHS, UKCA
Country of Origin
- Country of Origin
- Taiwan
