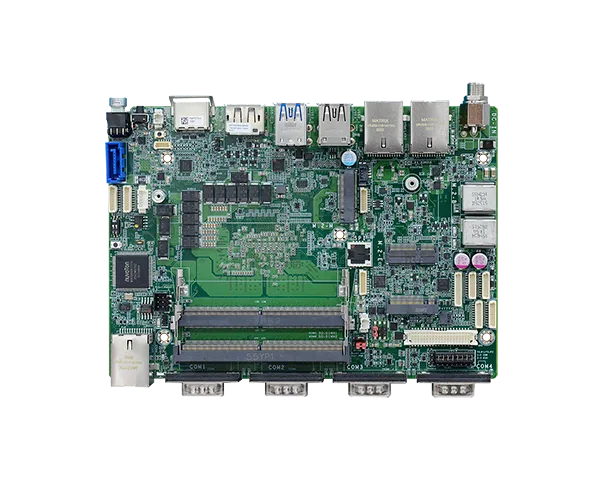

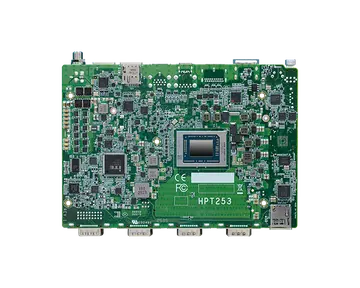

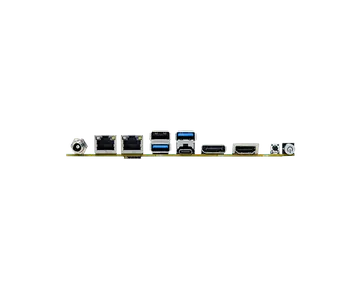

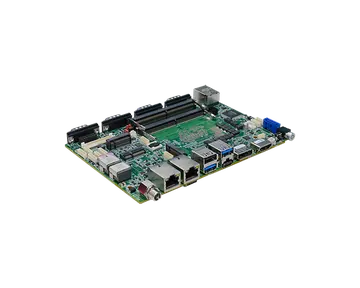

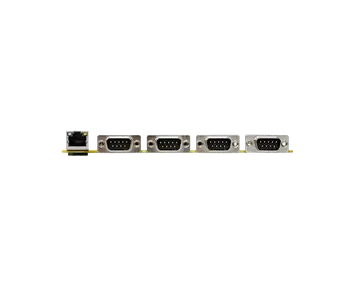

HPT253
4" SBC, AMD® Ryzen™ Embedded 8000 Processor, DDR5 SODIMM, HDMI, LVDS, DP, DP Type C Alt mode, 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key, 2 2.5GbE, 1 GbE, 2 USB 3.2, 1 USB-C, 3 COM , 1 COM/DIO, 0 to 60°C
- AMD® Ryzen™ Embedded 8000 Processor
- Dual DDR5-5600 SODIMM up to 96GB
- Quad Displays: HDMI + LVDS + DP + DP Type C Alt mode
- Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
- Rich I/O: 2 2.5GbE, 1 GbE, 2 USB 3.2, 1 USB-C, 3 COM, 1 COM/DIO
- Support OOB
Főbb jellemzők
Tanúsítványok
#DDR5
#LVDS
#eDP
#USB Type-C DP
#M.2
#AMD® Ryzen™ Embedded 8000 Series
#OOB
#Out-Of-Band (OOB)
#Windows 11
#AMD
#4K2K Display
#Windows
#Linux
#HDMI
#DP
#Multiple Expansion
#RoHS Certification
#CE Certification
#FCC Certification
#2.5G Ethernet
Főbb jellemzőkKey features
- AMD® Ryzen™ Embedded 8000 Processor
- Dual DDR5-5600 SODIMM up to 96GB
- Quad Displays: HDMI + LVDS + DP + DP Type C Alt mode
- Multiple Expansion: 1 M.2 M Key, 1 M.2 B Key, 1 M.2 E Key
- Rich I/O: 2 2.5GbE, 1 GbE, 2 USB 3.2, 1 USB-C, 3 COM, 1 COM/DIO
- Support OOB
System
- Processor
- AMD® Ryzen™Embedded 8000 Processors, TDP upto45W AMD® Ryzen™Embedded 8845HS Processors, 8C, 16M Cache, 3.8GHz (5.0GHz) AMD® Ryzen™Embedded 8640U Processors, 6C, 16M Cache, 3.5GHz (4.9GHz)
- Memory
- Dual DDR5-5600 SODIMM Up to 96GB
- BIOS
- AMI SPI 256Mbit
Graphics
- Controller
- AMD® Radeon RDNA3 Graphics
- Display
- 1 x HDMI 2.0 1 x LVDS/eDP 1 x DP1.4 1 x DP Type C Alt mode HDMI: resolution up to 4096x2160@60Hz LVDS: dual channel 24-bit, resolution up to 1920x1200@60Hz DP: resolution up to 4096x2160@60Hz
- Quad Displays
- HDMI + LVDS + DP + DP Type C Alt mode
Expansion
- Interface
- 1 x M.2 M key 2280 (PCIe Gen4 x4) 1 x M.2 B key 3052 (USB 3.0/2.0), 1 x SIM slot for 4G/5G 1 x M.2 E key 2230 (USB 2.0/PCIe x1)
Ethernet
- Controller
- 2 x Intel® I226V (10/100/1000/2500Mbps)
Front I/O
- Ethernet
- 2 x 2.5GbE (RJ-45)
- USB
- 2 x USB 3.2 1 x USB 2.0 1 x USB Type C (USB 3.2 only)
- Display
- HDMI + LVDS + DP + DP Type C Alt mode
- Audio
- 1 x Front audio (Line-out, Line-in, Mic-in)
- Buttons
- 1 x Power Button 1 x Reset Button
Rear I/O
- Ethernet
- 1 x GbE(RJ-45), Intel® i210AT (10/100/1000Mbps) (support OOB available upon request)
- Serial
- COM 1: RS-232/422/485 COM 2/3: RS-232 COM 4: RS-232/422/485 or 8-bit DIO by jumper setting
Internal I/O
- USB
- 2 x USB 2.0 (1.0mm pitch)
- SATA
- 1 x SATA 3.0
- Fan
- 1 x Smart FAN
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- TPM 2.0
Power
- Type
- 9~36V DC
- Connector
- DC-in Jack Right Angle Connector (4-pin, available upon request)
- RTC Battery
- CR2032 Coin Cell (Cable type)
OS Support
- Microsoft
- Windows 11 IoT Enterprise 64-bit
- Linux
- Linux
Environment
- Temperature
- Operating: 0 to 60°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH Storage: 5 to 90% RH
- MTBF
- TBD
Mechanism
- Dimensions
- 4" SBC Form Factor 165mm (6.49") x 115mm (4.53")
- Height
- PCB: 1.6mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS
Packing List
- Packing List
- • 1 HPT253 motherboard • 1 Cooler, TBD
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| HPT253-BCN-8845HS | TBD | AMD® Ryzen™ Embedded 8845HS, 8 cores, 45W, HDMI + LVDS + DP + DP Type C Alt mode, 3 LAN, 4 COM, 2 USB 3.2, 9~36 VDC, 0~60°C |
| HPT253-BCN-8640U | TBD | AMD® Ryzen™ Embedded 8640U, 6 cores,28W, HDMI + LVDS + DP + DP Type C Alt mode, 3 LAN, 4 COM, 2 USB 3.2, 9~36 VDC, 0~60°C |
Termékadatlap a gyártó oldalánProduct page on the manufacturer's site →
