ICX610-C621A

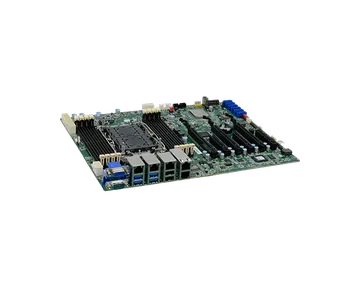

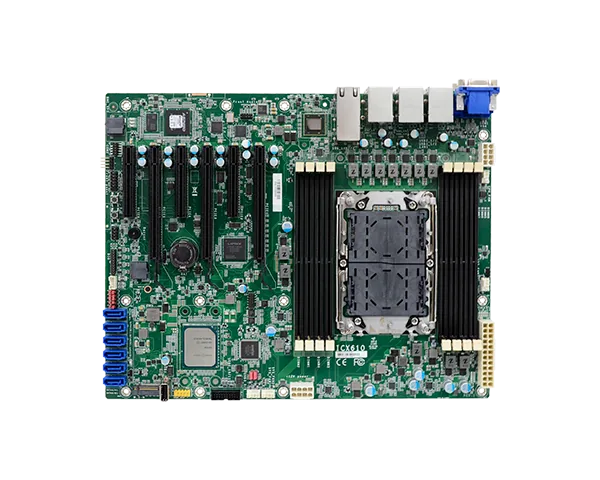

DFI's Industrial ATX motherboards deliver high-performance computing. The ATX motherboards enable AI workload and integration of high-end inspection.
- 3rd Gen Intel® Xeon® Scalable Processor Family
- 8 ECC-RDIMM up to 512GB
- 2 x 10GbE
- IPMI/Redfish OOB Remote Management
- Single Display: VGA resolution up to 1920x1200 @ 60Hz
- Multiple Expansion: 3 PCIe x16, 2 PCIe x8, 1 x M.2 M key
- Rich I/O: 2 Intel GbE, 1 Dedicated IPMI, 2 COM, 6 USB 3.1 Gen1, 5 USB 2.0
- Typically supports 10-Year CPU Life Cycle Until Q2’30 (Based on Intel IOTG Roadmap)
Főbb jellemzők
Tanúsítványok
#Edge AI Computing
#Out-Of-Band (OOB)
#Server Boards
#IoT
#Intel
#1G Ethernet
#PCIe x16
#Windows
#VGA
#Multiple Expansion
#10G Ethernet
#DDR4
#RoHS Certification
#CE Certification
#FCC Certification
#Medical
#Intel® 3rd Gen Xeon Ice Lake-SP Processor
#UKCA Certification
Főbb jellemzőkKey features
- 3rd Gen Intel® Xeon® Scalable Processor Family
- 8 ECC-RDIMM up to 512GB
- 2 x 10GbE
- IPMI/Redfish OOB Remote Management
- Single Display: VGA resolution up to 1920x1200 @ 60Hz
- Multiple Expansion: 3 PCIe x16, 2 PCIe x8, 1 x M.2 M key
- Rich I/O: 2 Intel GbE, 1 Dedicated IPMI, 2 COM, 6 USB 3.1 Gen1, 5 USB 2.0
- Typically supports 10-Year CPU Life Cycle Until Q2’30 (Based on Intel IOTG Roadmap)
System
- Processor
- 3rd Gen Intel® Xeon® Scalable Processor Family, LGA 4189 (Socket P+), TDP upto 205W Intel® Xeon® Gold 6338N ( 32 Cores, 48 MB Cache, up to 3.50 GHz ) Intel® Xeon® Gold 6338T ( 24 Cores, 36 MB Cache, up to 3.40 GHz ) Intel® Xeon® Gold 6336Y ( 24 Cores, 36 MB Cache, up to 3.60 GHz ) Intel® Xeon® Gold 6330 ( 28 Cores, 42 MB Cache, up to 3.10 GHz ) Intel® Xeon® Gold 6330N ( 28 Cores, 42 MB Cache, up to 3.40 GHz ) Intel® Xeon® Gold 6326 ( 16 Cores, 24 MB Cache, up to 3.50 GHz ) Intel® Xeon® Gold 6314U ( 32 Cores, 48 MB Cache, up to 3.40 GHz ) Intel® Xeon® Gold 6312U ( 24 Cores, 36 MB Cache, up to 3.60 GHz ) Intel® Xeon® Gold 5320T ( 20 Cores, 30 MB Cache, up to 3.50 GHz ) Intel® Xeon® Gold 5318N ( 24 Cores, 36 MB Cache, up to 3.40 GHz ) Intel® Xeon® Gold 5318Y ( 24 Cores, 36 MB Cache, up to 3.40 GHz ) Intel® Xeon® Gold 5317 ( 12 Cores, 18 MB Cache, up to 3.60 GHz ) Intel® Xeon® Gold 5315Y ( 8 Cores, 12 MB Cache, up to 3.60 GHz ) Intel® Xeon® Silver 4316 ( 20 Cores, 30 MB Cache, up to 3.40 GHz ) Intel® Xeon® Silver 4314 ( 16 Cores, 24 MB Cache, up to 3.40 GHz ) Intel® Xeon® Silver 4310 ( 12 Cores, 18 MB Cache, up to 3.30 GHz ) Intel® Xeon® Silver 4310T ( 10 Cores, 15 MB Cache, up to 3.40 GHz )
- Chipset
- Intel® C621A Chipset
- Memory
- 8 x 288-pin ECC-RDIMM up to 512GB Single Channel DDR4 up to 3200 MHZ
- BIOS
- Insyde SPI 128Mbit
Graphics
- Controller
- BMC AST2500
- Display
- 1 x VGA VGA: resolution up to 1920x1200 @ 60Hz
- Single Display
- VGA
Expansion
- Interface
- 1 x M.2 2280 M key (SATA/PCIe Gen3 x4 NVMe) 3 x PCIe x16 Gen4 slot (#1/#3/#5), 3 x PCIe x8 Gen4 slot (#2/#4/#6) *Note: PCIe#1#2 can be auto detected as (x16/0) or (x8/x8) *Note: PCIe x8 slot is OPEN edge.
Audio
- Audio Codec
- ALC888S
Ethernet
- Controller
- 2 x Intel® I210AT PCIe (10/100/1000Mbps) 2 x Intel® X550-AT2 PCIe (10Gbps) IPMI: RTL8211F

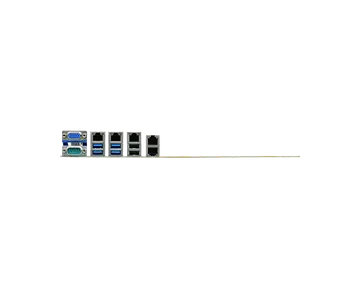

Rear I/O
- Ethernet
- 2 x GbE (RJ-45) 2 x 10GbE (RJ-45) 1 x Dedicated IPMI LAN
- Serial
- 1 x RS-232 (DB-9)
- USB
- 4 x USB 3.1 Gen1 (w/ RJ45 + USB 3.1 stack) 2 x USB 2.0 (w/ RJ45 + USB 2.0 stack)
- Display
- 1 x VGA (DB-15)
Internal I/O
- Serial
- 1 x RS-232 (2x5-pin)
- USB
- 2 x USB 3.1 Gen1 2 x USB 2.0 1 x USB 2.0 Vertical Type A
- Audio
- 1 x Front Audio Header
- SATA
- 6 x SATA 3.0 (up to 6Gb/s) RAID 0/1/5/10
- DIO
- 1 x 16-bit DIO
- LPC
- 1 x LPC
- SMBus
- 1 x SMBus
Watchdog Timer
- Output & Interval
- System Reset, Programmable via Software from 1 to 255 Seconds
Security
- TPM
- Infineon TPM2.0
Power
- Type
- ATX
- Connector
- 8-pin ATX 12V CPU power 24-pin ATX power
- Consumption
- TBD
- Battery
- CR2032 Coin Cell
OS Support
- Microsoft
- Windows 10 IoT Enterprise LTSB RS5(64-bit) Windows Server 2019
- Linux
- Ubuntu 20.04
Environment
- Temperature
- Operating: 0 to 55°C Storage: -40 to 85°C
- Humidity
- Operating: 5 to 90% RH, Non-condensing Storage: 5 to 90% RH, Non-condensing
- MTBF
- TBD
Mechanism
- Dimensions
- ATX Form Factor 305mm (12") x 244mm (9.6")
- Height
- PCB: 1.6mm Top Side: 37.34mm
Standards and Certifications
- Certifications
- CE, FCC, RoHS, UKCA
Packing List
- Packing List
- 1 ICX610-C621A Motherboard, 770-ICX6101-000G 1 M.2 screw, A32-112016-041G 1 M.2 standoff, A33-725019-090G 1 IO Shield, A49-ICX610-000G 1 Serial ATA data cable (Length: 500mm), 332-553001-005G
Country of Origin
- Country of Origin
- Taiwan
Product Collaterals
Technical Documents
Certifications
A dokumentumok a DFI szerveréről töltődnek le.Documents are served from DFI's own servers.
| Model Name | Part Number | Description |
|---|---|---|
| ICX610-C621A | 770-ICX6101-000G | 2 10GbE, 2 GbE, 1 IPMI, 1 VGA, 2 COM, 6 USB 3.1 Gen1, 5 USB 2.0, 0 to 55°C |
| ICX610-C621A | 770-ICX6101-100G | 2 10GbE, 2 GbE, 1 VGA, 1 COM, 6 USB 3.1 Gen1, 5 USB 2.0, 0 to 55°C |
| ICX610-C621A | 770-ICX6101-200G | 2 10GbE, 2 GbE, 1 COM, 6 USB 3.1 Gen1, 5 USB 2.0, 0 to 55°C |
| ICX610-C621A | 770-ICX6101-300G | 2 GbE, 1 VGA, 1 COM, 6 USB 3.1 Gen1, 5 USB 2.0, 0 to 55°C |
| ICX610-C621A | 770-ICX6101-400G | 2 GbE, 1 IPMI, 1 VGA, 2 COM, 6 USB 3.1 Gen1, 5 USB 2.0, 0 to 55°C |
| Item Name | Part Number | Description |
|---|---|---|
| USB 2.0 port cable | A81-001066-016G | Length: 350mm |
| USB 3.1 Gen1 cable | A81-001052-023G | Length: 320mm |
| Serial ATA data cable | 332-553001-005G | Length: 500mm |
| 2U CPU cooler | A71-101141-000G | LGA 4189 113 x 84 x 71.6mm |
| 4U CPU cooler | A71-101142-000G | LGA 4189 116.7 x 92.5 x 125.5mm |
